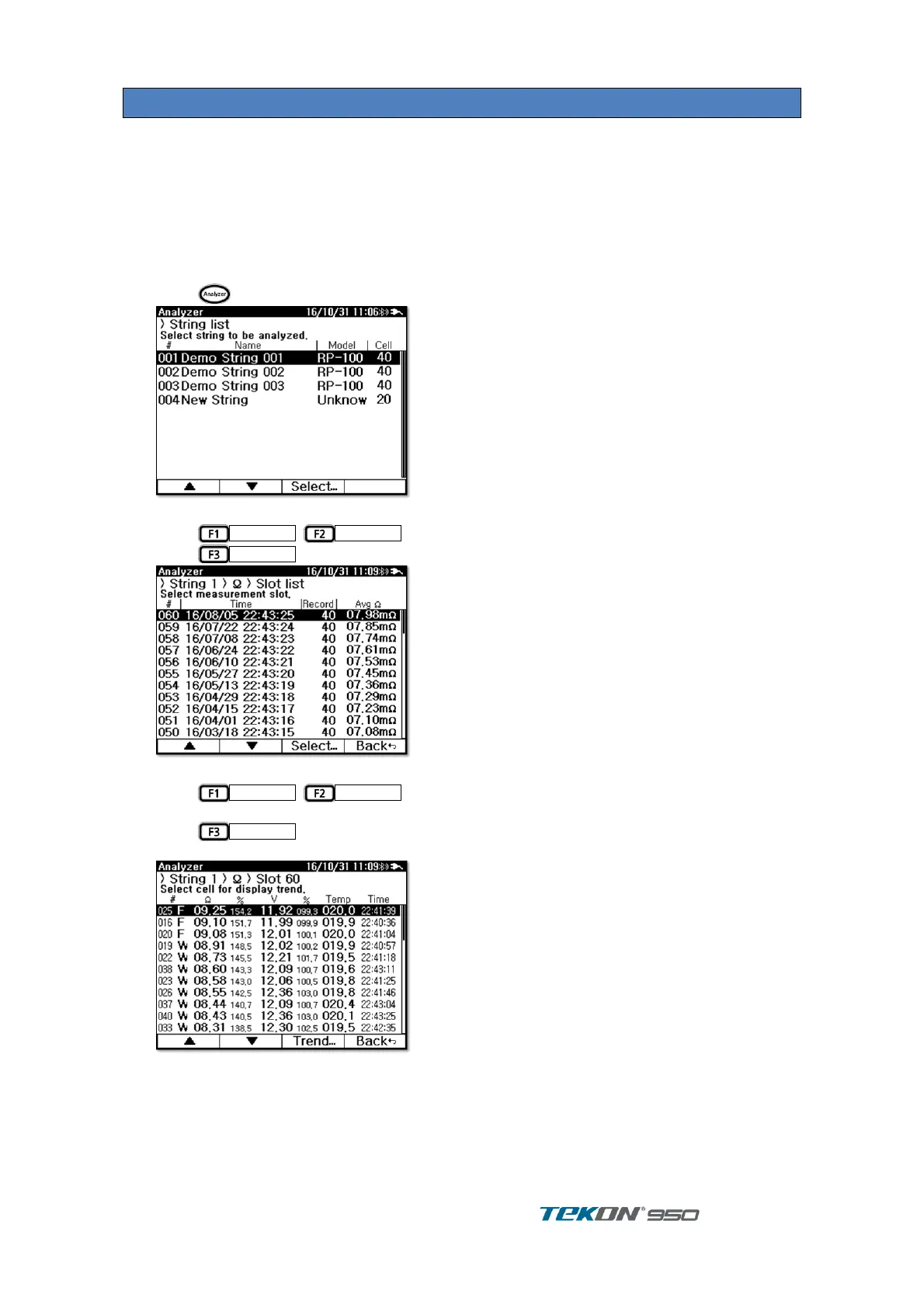

6. Analyzer
6.1. Description
Analyzer function can analyze following analysis from records saved in the unit.
At a specific string, can check in the order of higher impedance cell ( more deteriorated cell)
And can draw Trend Curve of Impedance change which can be a reference of estimated time of
battery change
6.2. Analysis function application
[procedure ]
Press to display String list ①
Figure 69. String list
Press
,
move Cursor to the String to be analyzed ②
Press
to display slot list. ③
Figure 70. Slot list
Press
,
cursor to move to slot to be analyzed. ④
(In general, last measurement )
Press
to select record of slot. ⑤
Cell is displayed in the order of higher impedance.
Figure 71. String -Ω Record
To Next Page
