Tekon 950 - Meter Mode Record

30
USER MANUAL

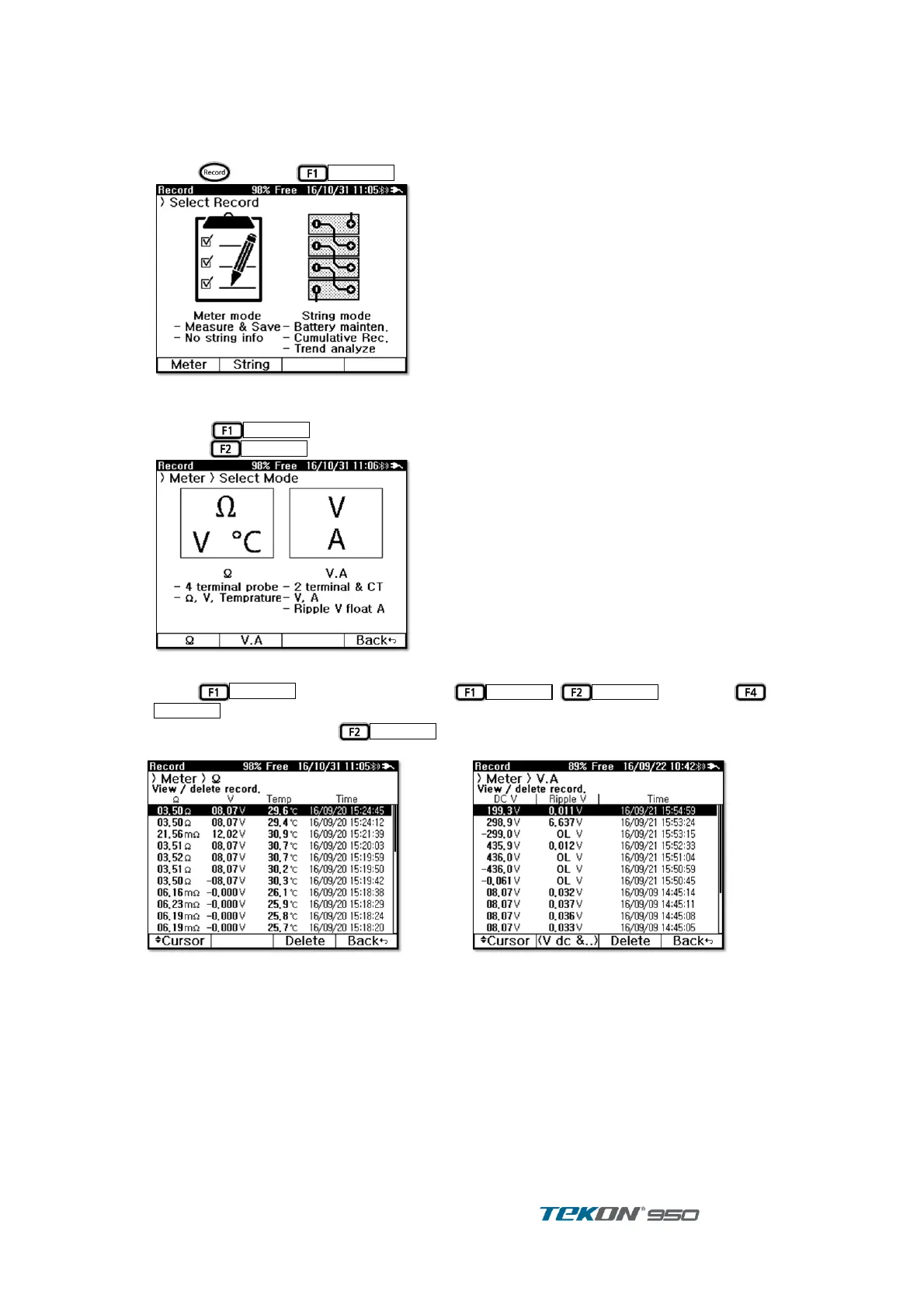

5.2. Meter mode record
5.2.1. Meter mode record
[ Procedure ]
Press to select in record display.. ①
Figure 33. Record Initial display
>Meter > select RECORD ②
- Press to display Meter-Ω record.
- press to display Meter-V.A record.
Figure 34. Ω/V.A selection display
Press and move Cursor with
,
and press ③
.
In V.A record mode, press to select. ④
- DC Voltage & Ripple V / DC Voltage & DC Voltage/AC Voltage & AC Current
Figure 35. Meter-Ω Record
Figure 36. Meter V.A record
Meter
Ω
V.A
▲▼Cursor
▲
▼
Back ↩
Meas Set
