4.5.2. Recall charge / discharge test
The capacity measurement is called up in the following order.
Press key to switch to VA measurement mode. ①
Press to display the capacity measurement record screen. ②

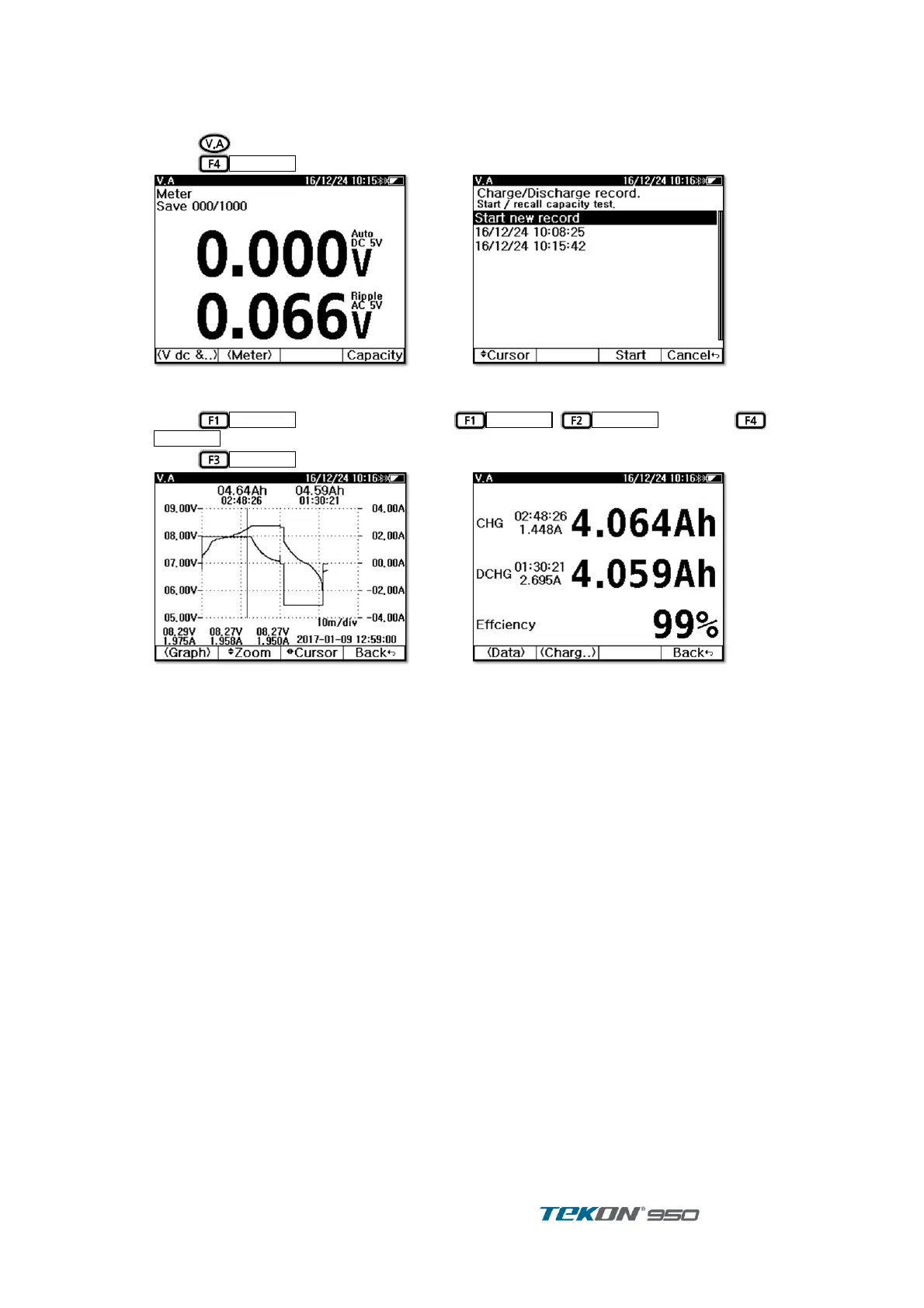

Figure 29. VA Display
Figure 30. Charge / Discharge Test Initial Screen
Press and move Cursor with
,
and press ③
.
Press
,
the record is displayed on the screen. ④
Figure 31. Charge / Discharge Test Recall -
Graph
Figure 32. Charge / Discharge Test Recall - Data
On graph screen, view the record by zooming in and out and using the cursor.
The data screen shows charge, charge time, discharge amount, discharge time and calculates
efficiency.
Capacity
▲▼Cursor
▲
▼
Back ↩
Recall
