3.6. STRING Record
“STRING Record“ is designed for continuous battery management and maintenance.
String name, battery model, limit value and number of battery can be set up in the STRING
Record.
Measurement Data is saved at selected string.
When whole Battery Series is measured (by Slot), if select String, can manage maximum 60
accumulated data(Slot).
Can check or erase the measurement data of String.
3.6.1. Display configuration

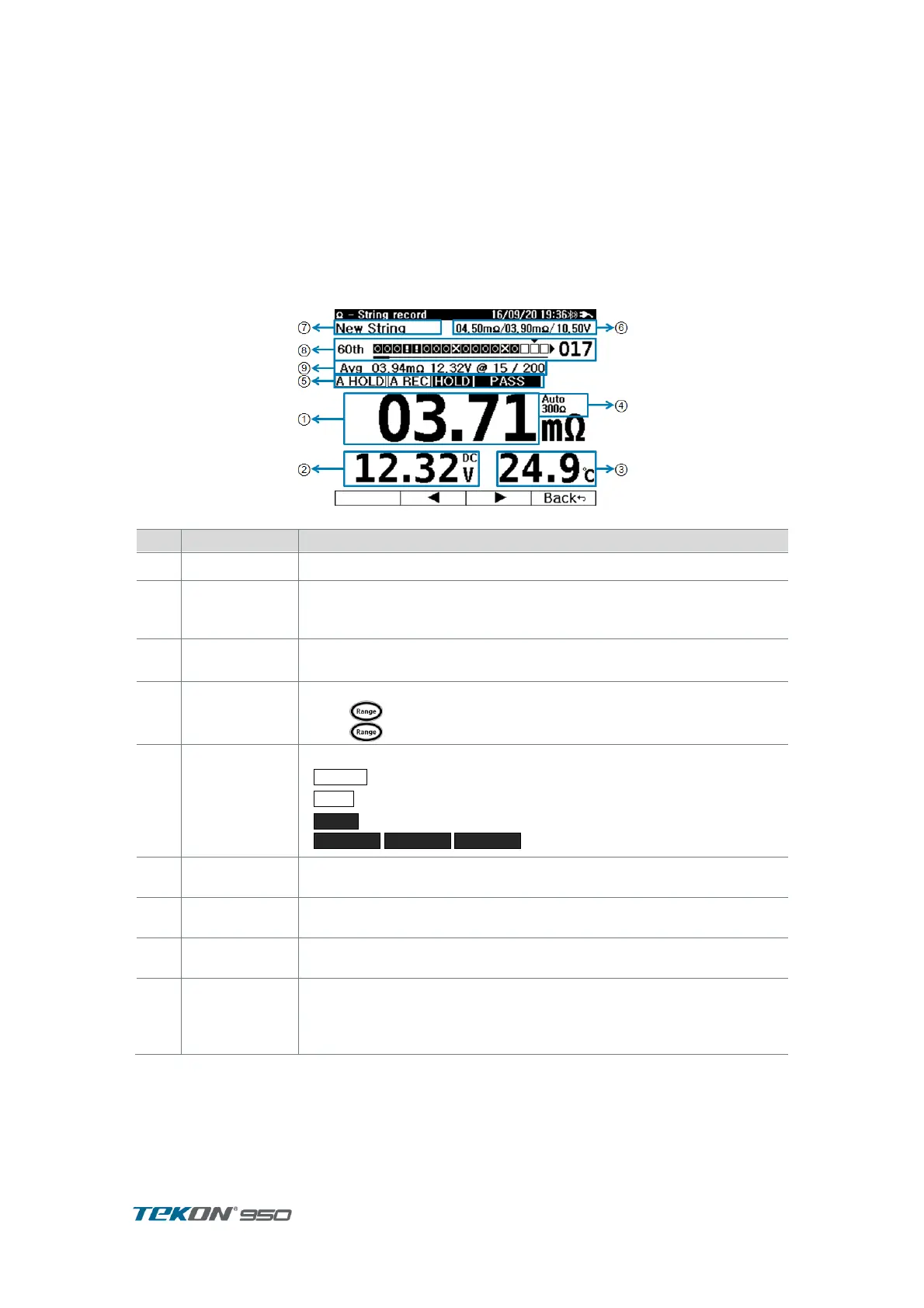

Figure 15. Ω- String Record display
display Voltage measurement
Voltage measurement in Impedance measurement always auto
range
display Temperature measurement
Can select [ ℃ / ℉ ] in User Menu mode
display present measurement range
Press long to change Auto / Manual .
Press short time to change range in order [3mΩ ~ 300Ω]
Set Up status
LIMIT result
display present Set Up status, Limit result
: A Hold is displaying when Auto hold mode
: A Rec is displaying when Auto Record mode
: display when present measurement is in HOLD
/ / : Result when in LIMIT function
LIMIT value presently set up. display when LIMIT mode
Upper Limit 2 / Upper Limit 1 / Lower limit .
display number of recording
In Meter mode, can save upto 1000 record
Indicates Record Processing.
When CURSOR position is empty, display Accumulated Average of
Impedance, Voltage .
When CURSOR position is on DATA, display the present
measurement.
To Next Page
