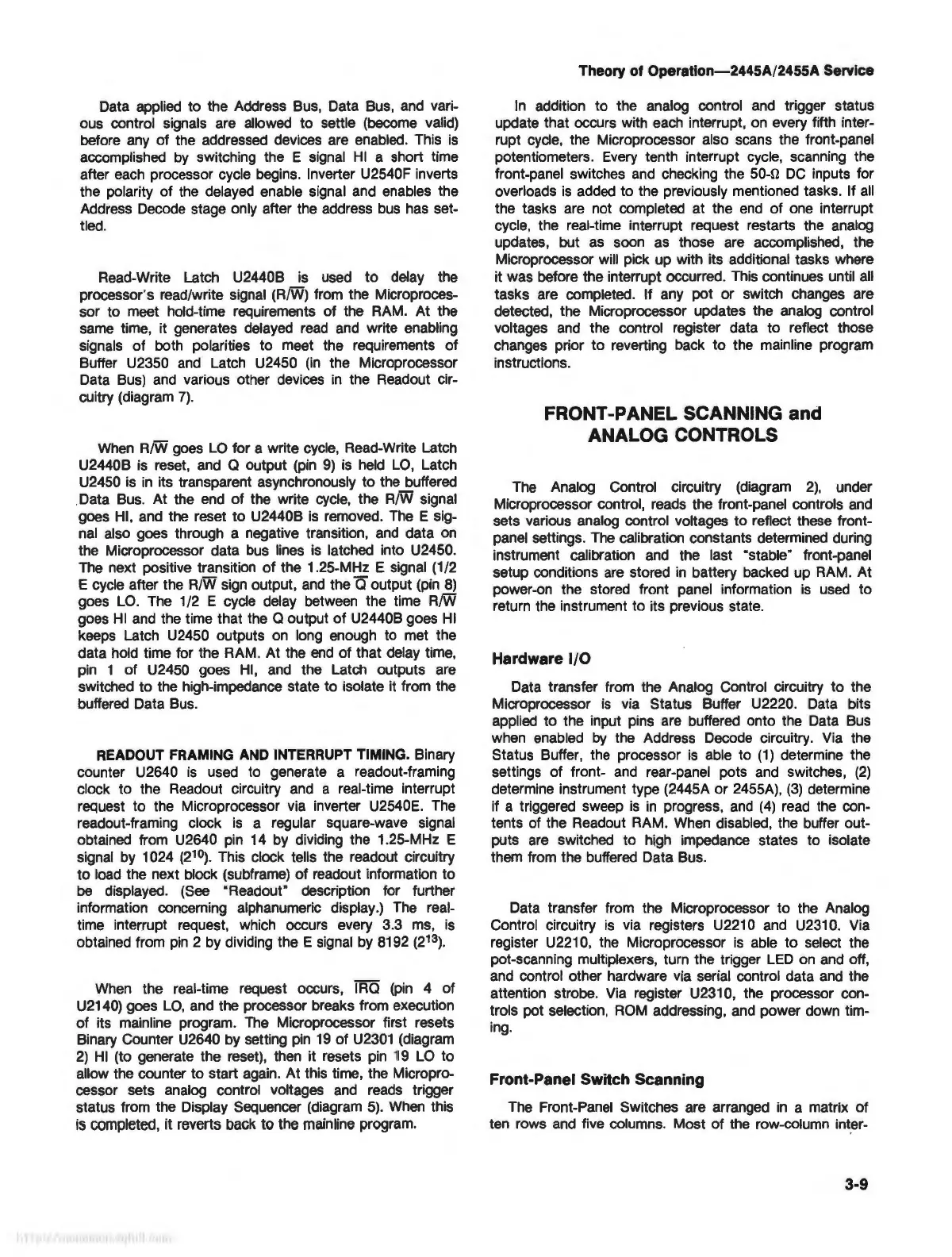

Data applied to the Address Bus, Data Bus,
and
vari-
ous control signals are allowed to settle (become valid)
before any of the addressed devices are enabled. This
is
accomplished
by
switching the E signal
HI
a short time
after each processor cycle begins. Inverter U2540F inverts
the polarity of the delayed enable signal and enables the
Address Decode stage only after the address
bus
has set-
tled.
Read-Write Latch U2440B
is
used
to
delay the
processor's read/write signal (R/W) from the Microproces-
sor to meet hold-time requirements of the RAM. At the
same time, it generates delayed
read
and
write enabling
signals
of
both polarities to meet the requirements of
Buffer U2350
and
Latch U2450
(in
the Microprocessor
Data Bus)
and
various other devices
in
the Readout cir-
cuitry (diagram
7).
When
R/W goes
LO
for a write cycle, Read-Write Latch
U2440B is reset,
and
Q output
(pin
9)
is
held
LO,
Latch
U2450 is
in
its transparent asynchronously to the buffered
Data Bus. At the end of the write cycle, the R/W signal
goes
HI,
and the reset to U2440B
is
removed. The E sig-
nal also goes through a negative transition,
and
data on
the Microprocessor data
bus
lines is latched into U2450.
The next positive transition
of
the 1.25-MHz E signal (1/2
E cycle after the R/W sign output,
and
the Q output
(pin
8)
goes
LO.
The 1/2 E cycle delay between the time R/W
goes
HI
and
the time that the Q output
of
U2440B goes
HI
keeps Latch U2450 outputs
on
long enough to met the
data hold time for the RAM. At the
end
of that delay time,
pin
1 of U2450 goes
HI,
and
the Latch outputs are
switched to the high-impedance state to isolate it from the
buffered Data Bus.
READOUT FRAMING
AND
INTERRUPT TIMING. Binary
counter U2640
is
used to generate a readout-framing
clock to the Readout circuitry
and
a real-time interrupt
request to the Microprocessor via inverter U2540E. The
readout-framing clock
is
a regular square-wave signal
obtained from U2640
pin
14
by
dividing the 1.25-MHz E
signal
by
1024
(2^10).
This clock tells the readout circuitry
to load the next block (subframe) of readout information to
be
displayed.
(See
"Readout· description for further
information concerning alphanumeric display.) The real-
time interrupt request, which occurs every 3.3 ms,
is
obtained from
pin
2
by
dividing the E signal
by
8192
(2
13
).
When
the real-time request occurs, IRQ
(pin
4 of
U2140) goes
LO,
and the processor breaks from execution
of its mainline program.
The
Microprocessor first resets
Binary Counter U2640 by setting pin
19
of
U2301
(diagram
2)
HI
(to generate the reset), then it resets pin
19
LO
to
allow the counter to start again. At this time, the Micropro-
cessor sets analog control voltages
and
reads trigger
status from the Display Sequencer (diagram
5).
When
this
is
completed, it reverts back to the mainline program.
Theory of
Operation-2445A/2455A
Service
In
addition to the analog control
and
trigger status
update that occurs with each interrupt, on every fifth inter-
rupt cycle, the Microprocessor also scans the front-panel
potentiometers.
Every
tenth interrupt cycle, scanning the
front-panel switches
and
checking the þÿ50©
DC
inputs for
overloads
is
added to the previously mentioned tasks. If
all
the tasks are not completed at the
end
of one interrupt
cycle, the real-time interrupt request restarts the analog
updates, but
as
soon
as
those are accomplished, the
Microprocessor will pick up with its additional tasks where
it was before the interrupt occurred. This continues until all
tasks are completed. If any pot or switch changes are
detected, the Microprocessor updates the analog control
voltages
and
the control register data to reflect those
changes prior
to
reverting back to the mainline program
instructions.
FRONT-PANEL SCANNING and
ANALOG CONTROLS
The Analog Control circuitry (diagram
2),
under
Microprocessor control, reads the front-panel controls
and
sets various analog control voltages to reflect these front-
panel settings. The calibration constants determined during
instrument calibration
and
the last "stable" front-panel
setup conditions
are
stored
in
battery backed up RAM. At
power-on the stored front panel information
is
used to
return the instrument to its previous state.
Hardware 1/0
Data transfer from the Analog Control circuitry to the
Microprocessor
is
via Status Buffer U2220. Data bits
applied to the input pins are buffered onto the Data Bus
when enabled
by the Address Decode circuitry. Via the
Status Buffer, the processor
is
able to
(1)
determine the
settings of front-
and
rear-panel pots
and
switches,
(2)
determine instrument type (2445A or 2455A),
(3)
determine
if a triggered sweep
is
in
progress,
and
(4)
read the con-
tents of the Readout RAM.
When
disabled, the buffer out-
puts are switched to high impedance states to isolate
them from the buffered Data Bus.
Data transfer from the Microprocessor to the Analog
Control circuitry
is
via registers U2210
and
U2310. Via
register U2210, the Microprocessor
is
able to select the
pot-scanning multiplexers, turn the trigger
LED
on
and
off,
and
control other hardware
via
serial control data
and
the
attention strobe. Via register U2310, the processor con-
trols pot selection, ROM addressing, and power down tim-
ing.
Front-Panel Switch Scanning
The Front-Panel Switches are arranged
in
a matrix
of
ten rows
and
five columns. Most of the row-column inter-
3-9
