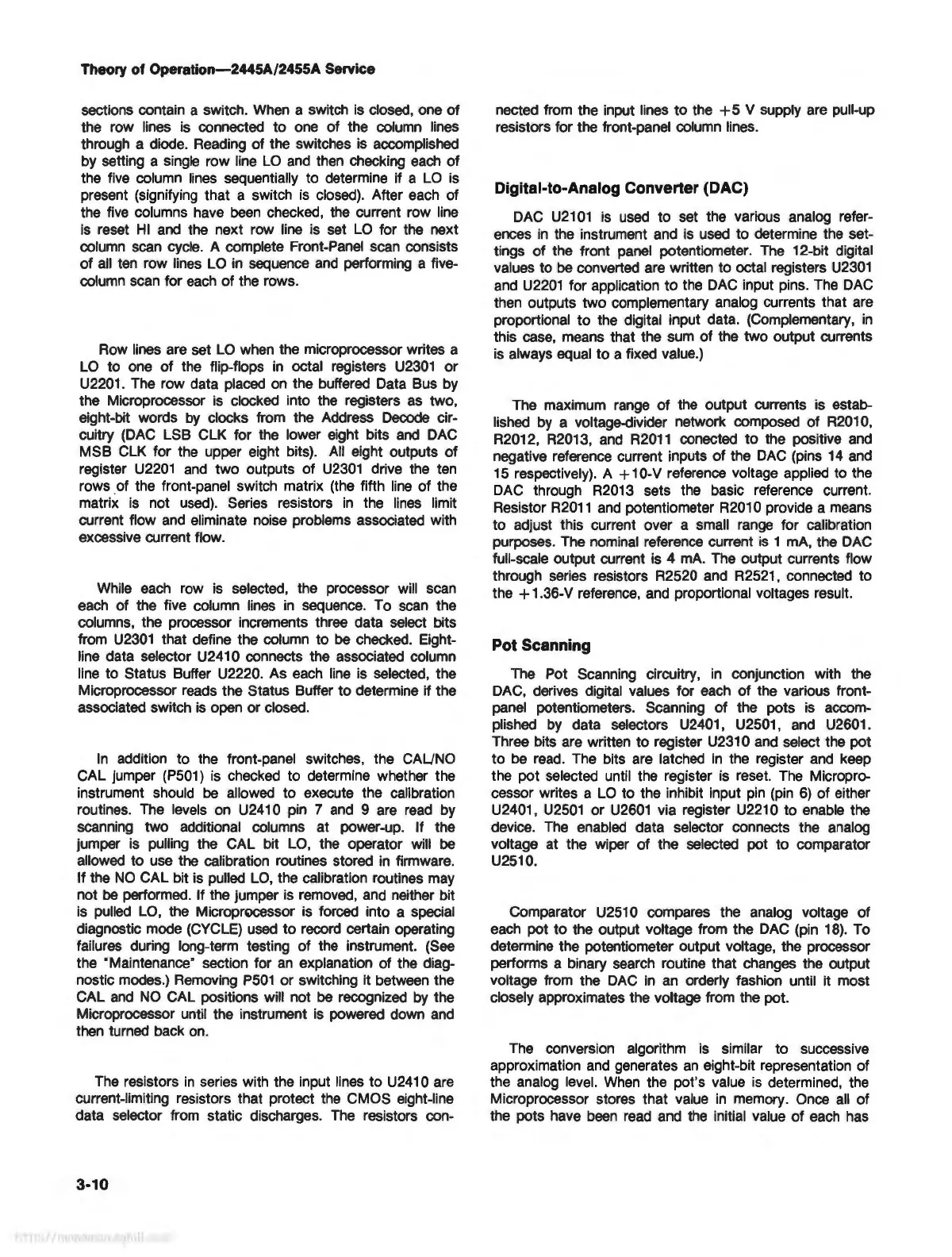

Theory of Operation-2445A/2455A Service
sections contain a switch.
When
a switch
is
closed, one
of
the row lines is connected to one of the column lines
through a diode. Reading of the switches
is
accomplished
by setting a single row line
LO
and
then checking each of
the five column lines sequentially to determine if a
LO
is
present (signifying that a switch
is
closed). After each of
the five columns have
been
checked, the current row line
is
reset
HI
and
the next row line is set
LO
for the next
column scan cycle. A complete Front-Panel scan consists
of all
ten
row lines
LO
in
sequence
and
performing a five-
column scan for
each
of the rows.
Row lines are set
LO
when the microprocessor writes a
LO
to one of the flip-flops
in
octal registers
U2301
or
U2201
. The row data placed
on
the buffered Data Bus by
the Microprocessor
is
clocked into the registers
as
two,
eight-bit words
by
clocks from the Address Decode cir-
cuitry
(DAG
LSB CLK for the lower eight bits
and
DAG
MSB CLK for the upper eight bits).
All
eight outputs of
register
U2201
and
two outputs of
U2301
drive the ten
rows oof the front-panel switch matrix (the fifth
line
of the
matrix
is
not
used).
Series resistors
in
the lines limit
current flow
and
eliminate noise problems associated with
excessive current flow.
While each row
is
selected, the processor will scan
each of the five column lines
in
sequence. To scan the
columns, the processor increments three data select bits
from
U2301
that define the column to be checked. Eight-
line data selector U2410 connects the associated column
line to Status Buffer U2220. As each line
is
selected, the
Microprocessor reads the Status Buffer to determine if the
associated switch
is
open or closed.
In
addition to the front-panel switches, the CAUNO
CAL
Jumper
(P501)
is
checked to determine whether the
instrument should
be
allowed to execute the calibration
routines. The levels on U2410 pin 7
and
9 are
read
by
scanning two additional columns at power-up. If the
jumper
is
pulling the CAL bit
LO,
the operator will
be
allowed to use the calibration routines stored
in
firmware.
If the
NO
CAL bit is pulled
LO,
the calibration routines may
not
be
performed. If the jumper
is
removed,
and
neither bit
is
pulled
LO,
the Microprocessor is forced into a special
diagnostic mode (CYCLE) used
to
record certain operating
failures during long-term testing of the instrument.
(See
the "Maintenance· section for
an
explanation of the diag-
nostic modes.) Removing
P501
or switching it between the
CAL
and
NO
CAL positions will not
be
recognized
by
the
Microprocessor until the instrument
is
powered down
and
then turned back
on.
The resistors
in
series with the input lines
to
U241
O are
current-limiting resistors that protect the CMOS eight-line
data selector from static discharges.
The
resistors con-
3-10
nected from the input lines to the + 5 V supply are pull-up
resistors for the front-panel column lines.
Digital-to-Analog Converter (DAC)
DAG
U2101
is
used to set the various analog refer-
ences
in
the instrument and is used to determine the set-
tings of the front panel potentiometer. The 12-bit digital
values to
be
converted are written to octal registers
U2301
and
U2201
for application
to
the
DAG
input pins. The
DAG
then outputs two complementary analog currents that are
proportional
to
the digital input data. (Complementary,
in
this case, means that the sum of the two output currents
is
always equal
to
a fixed value.)
The maximum range
of
the output currents is estab-
lished
by
a voltage-divider network composed
of
R2010,
R2012, R2013,
and
R2011
conected
to
the positive
and
negative reference current inputs of the
DAG
(pins
14
and
15
respectively). A + 10-V reference voltage applied to the
DAG
through R2013 sets the basic reference current.
Resistor
R2011
and
potentiometer R2010 provide a means
to adjust this current over a small range for calibration
purposes. The nominal reference current
is
1 mA, the
DAG
full-scale output current is 4
mA.
The output currents flow
through series resistors R2520 and R2521, connected to
the + 1.36-V reference,
and
proportional voltages result.
Pot Scanning
The Pot Scanning circuitry,
in
conjunction with the
DAG,
derives digital values for each of the various front-
panel potentiometers. Scanning of the pots
is
accom-
plished
by
data selectors U2401, U2501,
and
U2601.
Three bits are written to register U2310
and
select the pot
to
be
read. The bits are latched
in
the register
and
keep
the pot selected until the register is reset. The Micropro-
cessor writes a
LO
to the inhibit input
pin
(pin
6)
of either
U2401,
U2501
or
U2601
via register U2210 to enable the
device. The enabled data selector connects the analog
voltage at the wiper of the selected pot to comparator
U2510.
Comparator U2510 compares the analog voltage of
each pot to the output voltage from the
DAG
(pin 18). To
determine the potentiometer output voltage, the processor
performs a binary search routine that changes the output
voltage from the
DAG
in
an
orderly fashion until it most
closely approximates the voltage from the pot.
The conversion algorithm
is
similar to successive
approximation
and
generates
an
eight-bit representation of
the analog level.
When
the pot's value
is
determined, the
Microprocessor stores that value
in
memory. Once all of
the pots have
been
read
and
the
initial value of each has
