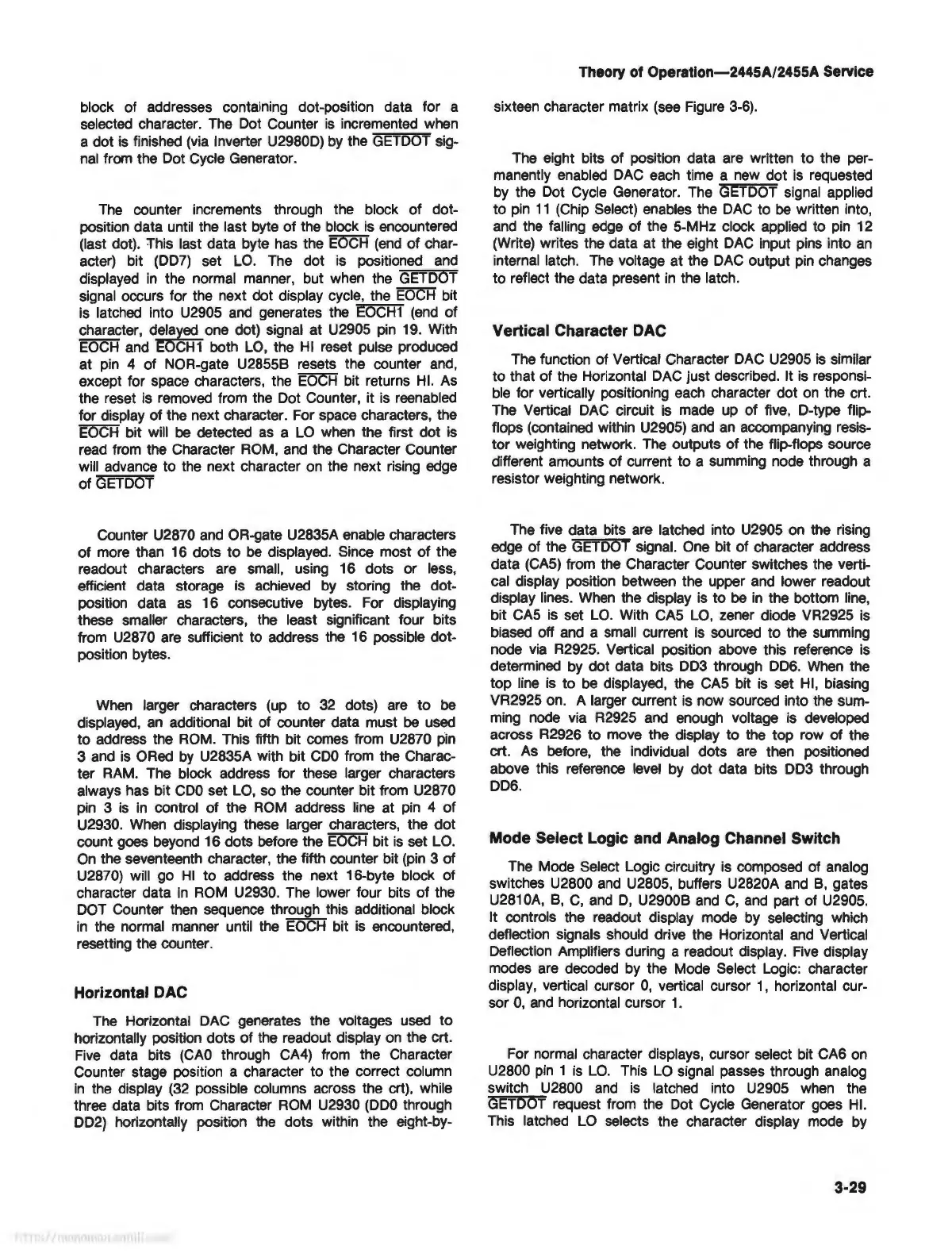

block of addresses containing dot-position data for a
selected character.
The
Dot Counter
is
incremented when
a dot
is
finished (via Inverter U2980D)
by
the GETDOT sig-
nal
from the Dot Cycle Generator.
The
counter increments through the block of dot-
position data until the last byte of the block
is
encountered
(last dot). This last data byte has the
EOCH
(end
of char-
acter) bit
(DD?)
set
LO.
The dot
is
positioned
and
displayed
in
the normal manner, but when the GETDOT
signal occurs for the next dot display cycle, the
EOCH
bit
is latched into U2905
and
generates the
EOCH1
(end
of
character,
delayed
one dot) signal at U2905
pin
19
. With
EOCH
and
CH1
both
LO,
the
HI
reset pulse produced
at pin 4 of NOR-gate U2855B resets the counter and,
except for space characters, the
EOCH
bit returns
HI.
As
the reset is removed from the Dot Counter, it
is
reenabled
for display of the next character. For space characters, the
EOCH
bit will
be
detected
as
a
LO
when
the first dot
is
read
from the Character
ROM,
and
the Character Counter
will advance to the next character
on
the next rising edge
of GETDOT
Counter U2870
and
OR-gate U2835A enable characters
of more than 16 dots to
be
displayed. Since most of the
readout characters are small, using 16 dots or
less,
efficient data storage is achieved
by
storing the dot-
position data
as
16 consecutive bytes. For displaying
these smaller characters, the least significant four bits
from U2870
are
sufficient to address the 16 possible dot-
position bytes.
When
larger characters
(up
to
32
dots)
are
to
be
displayed,
an
additional bit of counter data must
be
used
to address the ROM. This fifth bit comes from U2870 pin
3 and
is
ORed
by
U2835A with bit
CD0
from the Charac-
ter
RAM
. The block address for these larger characters
always has bit
CD0
set
LO,
so the counter bit from U2870
pin
3
is
in
control of the
ROM
address line at
pin
4 of
U2930.
When
displaying these larger characters, the dot
count goes beyond 16 dots before the
EOCH
bit
is
set
LO.
On
the seventeenth character, the fifth counter bit
(pin
3 of
U2870) will go
HI
to address the next 16-byte block of
character data
in
ROM
U2930. The lower four bits of the
DOT Counter then sequence through this additional block
in
the normal manner until the
EOCH
bit
is
encountered,
resetting the counter.
Horizontal DAC
The Horizontal
DAC
generates the voltages
used
to
horizontally position dots of the readout display
on
the crt.
Five
data bits
(CAO
through CA4) from the Character
Counter stage position a character to the correct column
in
the display
(32
possible columns across the crt), while
three data bits from Character
ROM
U2930
(DD0
through
DD2)
horizontally position the dots within the eight-by-
Theory
of
Operation-2445A/2455A Service
sixteen character matrix
(see
Figure
3-6).
The eight bits of position data are written to the per-
manently enabled
DAC
each
time a
new
dot
is
requested
by
the Dot Cycle Generator. The GETDOT signal applied
to
pin
11
(Chip Select) enables the
DAC
to
be
written into,
and
the falling edge of the 5-MHz clock applied to
pin
12
(Write) writes the data at the eight
DAC
input pins into
an
internal latch.
The
voltage at the
DAC
output pin changes
to reflect the data present
in
the latch.
Vertical Character DAC
The function of Vertical Character
DAC
U2905
is
similar
to that of the Horizontal
DAC
just described. It
is
responsi-
ble
for vertically positioning
each
character dot
on
the crt.
The Vertical
DAC
circuit
is
made
up
of five, D-type flip-
flops (contained within U2905)
and
an
accompanying resis-
tor weighting network.
The
outputs of the flip-flops source
different amounts of current to a summing node through a
resistor weighting network.
The five data bits are latched into U2905 on the rising
edge of the GETDOT signal. One bit of character address
data
(CAS)
from the Character Counter switches the verti-
cal
display position between the upper
and
lower readout
display lines.
When
the display
is
to
be
in
the bottom
line,
bit
CAS
is
set
LO
. With
CAS
LO,
zener diode VR2925
is
biased off and a small current is sourced to the summing
node
via
R2925. Vertical position above this reference is
determined
by
dot data bits
DD3
through
DD6
.
When
the
top
line
is
to
be
displayed, the
CAS
bit
is
set
HI,
biasing
VR2925
on.
A larger current
is
now sourced into the sum-
ming
node via R2925
and
enough voltage
is
developed
across R2926 to move the display to the top row of the
crt. As before, the individual dots
are
then positioned
above this reference
level
by dot data bits
DD3
through
DD6.
Mode Select Logic and Analog Channel Switch
The Mode Select Logic circuitry is composed of analog
switches U2800
and
U2805, buffers U2820A
and
B,
gates
U281
0A,
B,
C,
and
D,
U2900B
and
C,
and
part of U2905.
It controls the readout display mode
by
selecting which
deflection signals should drive the Horizontal
and
Vertical
Deflection Amplifiers during a readout display.
Five
display
modes are decoded by the Mode Select Logic: character
display, vertical cursor
0,
vertical cursor
1,
horizontal cur-
sor
0,
and
horizontal cursor
1.
For normal character displays, cursor select bit CA6
on
U2800
pin
1
is
LO.
This
LO
signal passes through analog
switch U2800
and
is
latched into U2905
when
the
GETDOT request from the Dot Cycle Generator goes
HI.
This latched
LO
selects the character display mode
by
3-29
