Gated mode
There is only one entry in gated mode. The output is held until the wait event occurs (gate opened),
and stops when the jump event occurs (gate closed). The sequencer will go back to the starting point
of the sequence and wait for the next wait event.
 Go To is disabled in this mode.

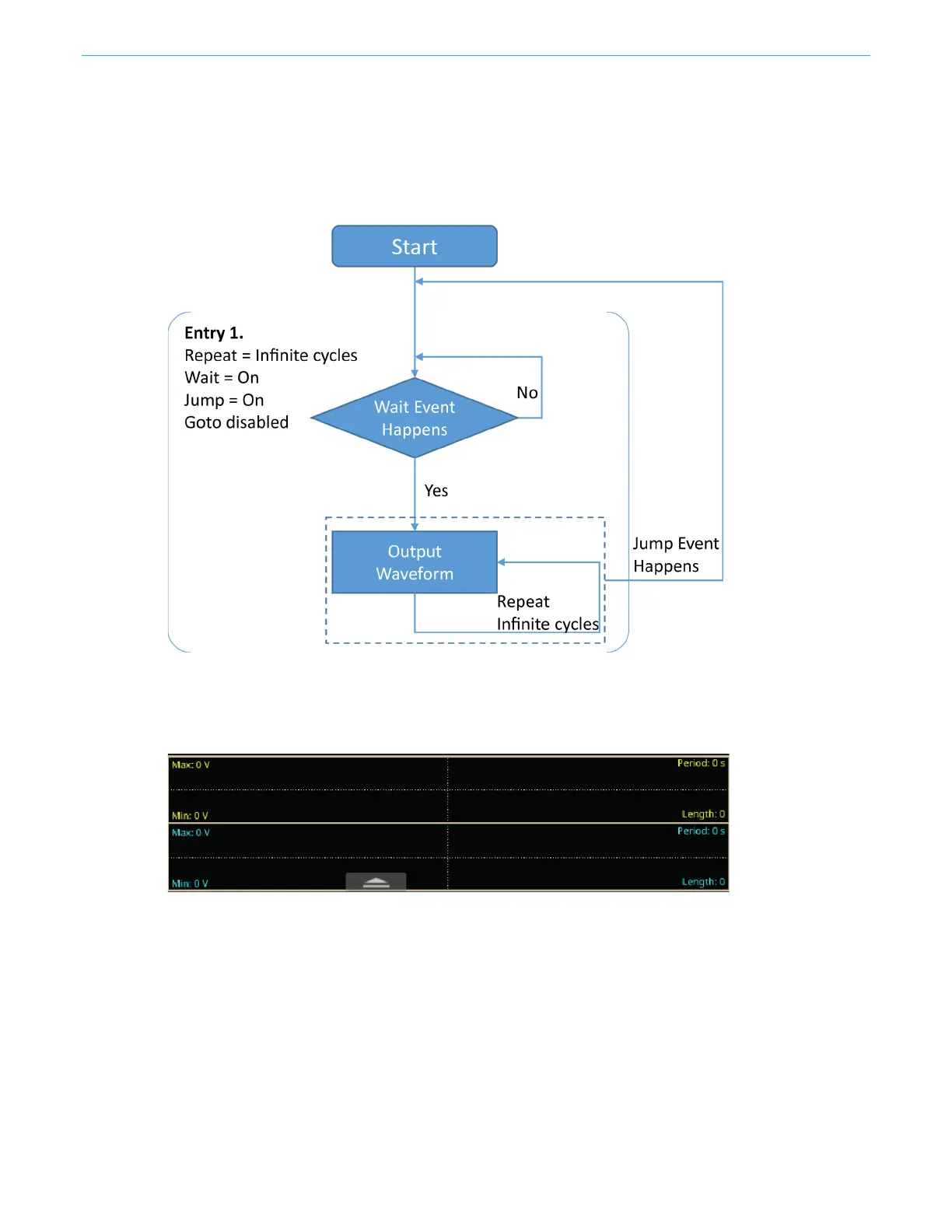

Figure 89: Gated mode
Advanced Thumbnail
This is a small version of the waveform screen.
Figure 90: Thumbnail
