Tektronix AFG31000 Series

Function introduction
AFG31000 Series Arbitrary Function Generator User's Manual 87
With the patented InstaView
TM
technology, the instrument can measure and show the waveform at
the DUT, instead of just the nominal waveform. The displayed waveform changes in real time with
settings changes to frequency, amplitude, waveform shape, or impedance changes at the device
under test.
Equipment list
 One AFG31000 Series Arbitrary Function Generator
 One oscilloscope (with 50 Ω and 1 MΩ switchable input impedance)
 One BNC to BNC cable
 One BNC T connector (JKJ)
 One demo board

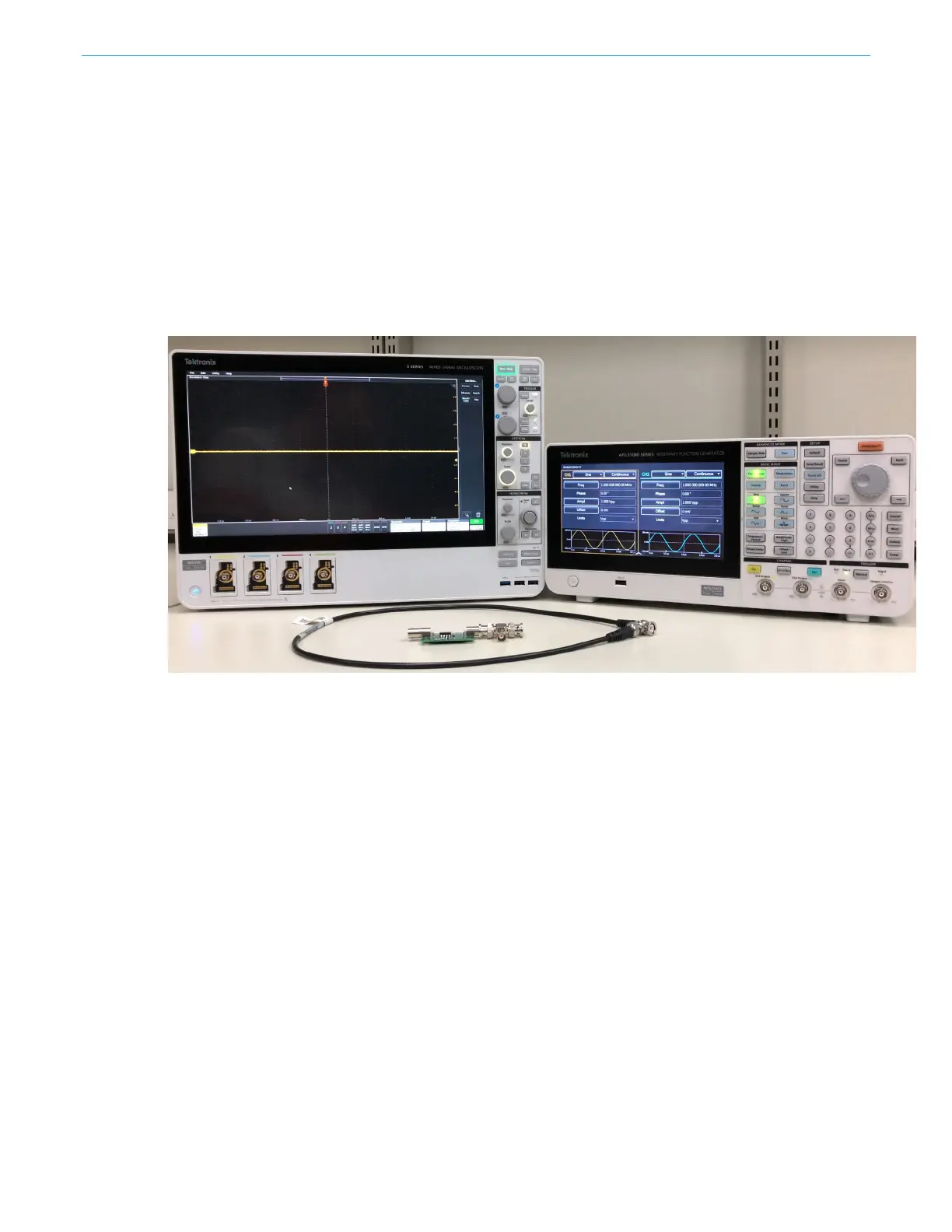

Figure 62: Equipment for InstaView tutorial
