Function introduction
AFG31000 Series Arbitrary Function Generator User's Manual 95
Changed settings
Now, what will happen if you change the waveform settings?
1. Change the amplitude and frequency, either independently or together of CH1 to observe how the
InstaView waveform changes in real time, and compare it with the oscilloscope-captured
waveforms.

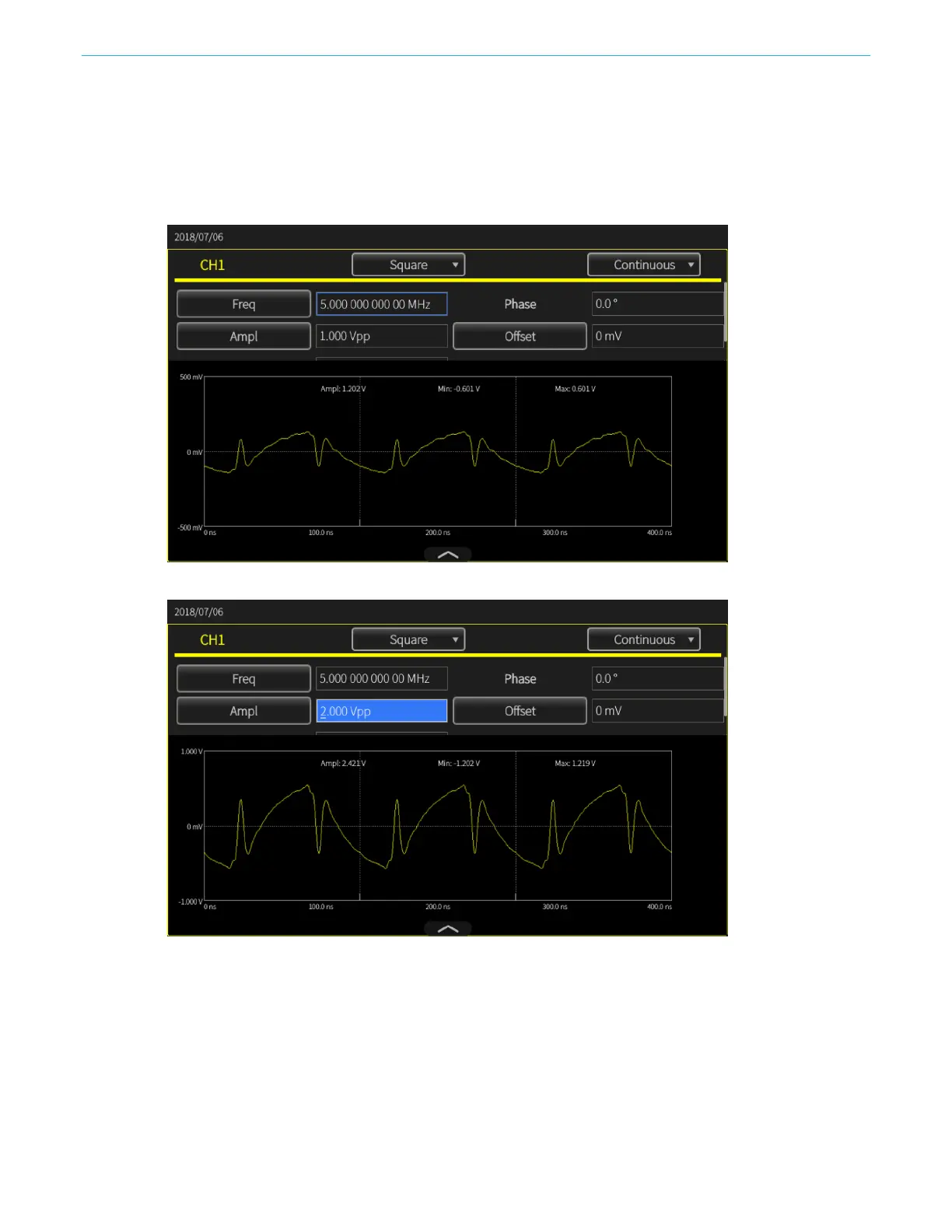

Figure 75: Frequency 5 MHz - InstaView
Figure 76: Frequency 5 MHz - scope
