NOTE. You can add whichever waveform you like into the sequence, but in each entry, the CH1 and
CH2 waveforms must be of the same length.
5. Click the Go To field of the last entry and change it from Next to 1. This lets the sequence return
to the first entry when all the waveforms have run and repeats the process infinitely.

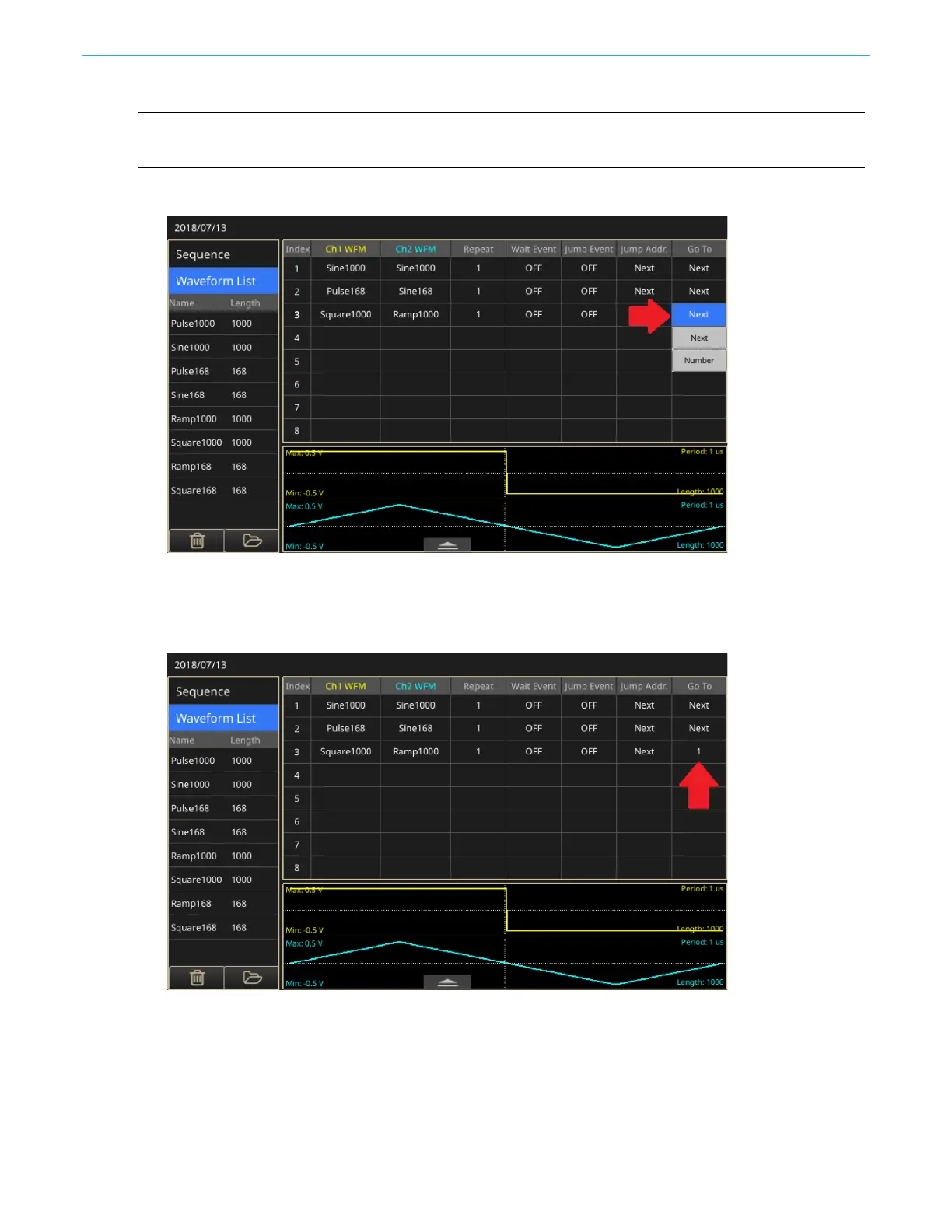

Figure 98: Go To field, change to 1
6. Change the repeat times of entry two and three to any number you prefer. Do not set the repeat
times to infinite or they will repeat endlessly. Leave the repeat number of entry one as one. In the
next step you will need to set a marker for this entry that will trigger the scope.
Figure 99: Change to results
