ArbExpress information
156 AFG31000 Series Arbitrary Function Generator User's Manual
Alternatively, you can use the Equation Editor, Waveform Math, or remotely control an AWG or AFG
to create a waveform.
The Equation Editor application provides a set of sample equations that you can directly use or
modify.
1. Use the Command List to select the commands, functions, units, and operations.
2. View the waveform in the Preview area once the equation is compiled to verify your equation.

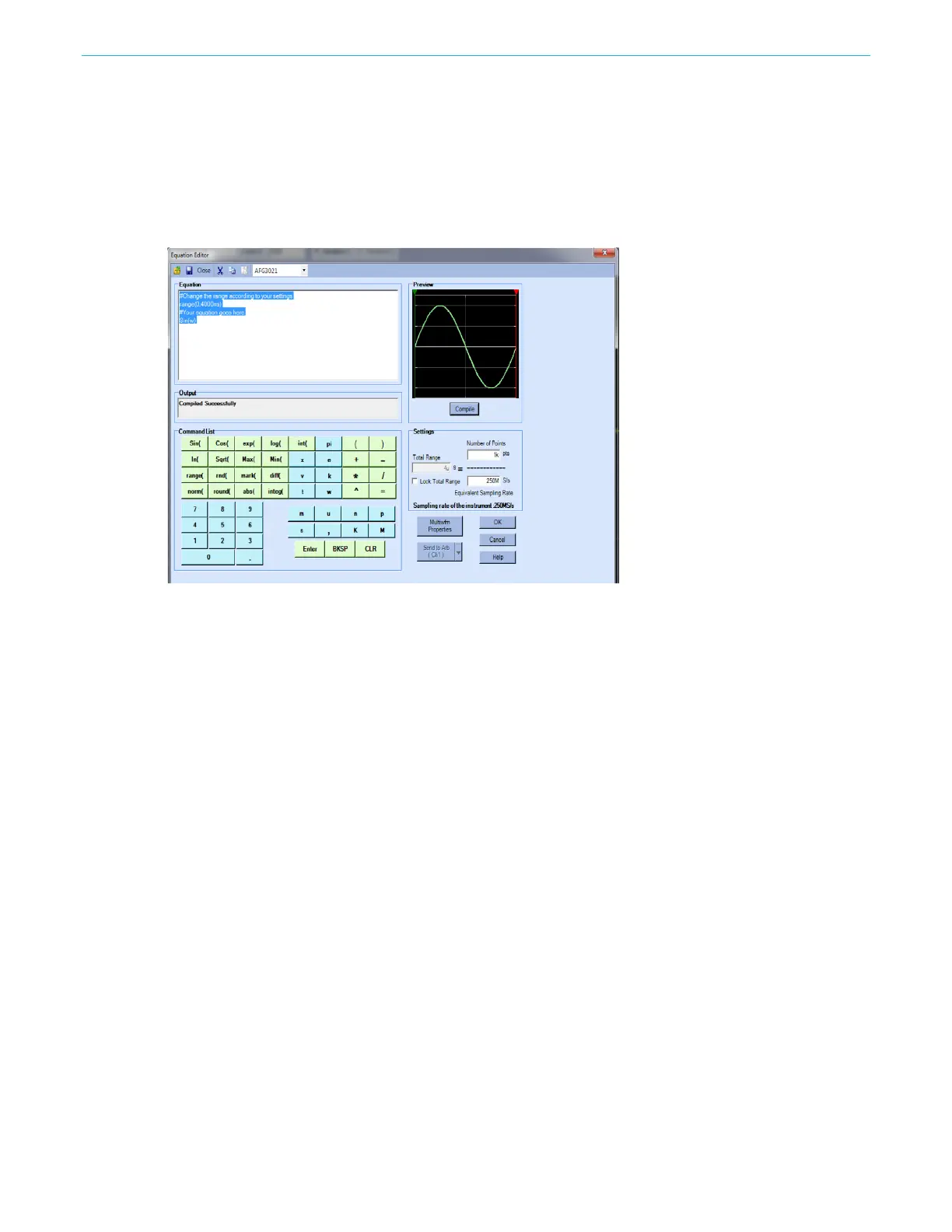

Figure 158: ArbExpress equation editor
