Tektronix AFG31000 Series

Application examples
AFG31000 Series Arbitrary Function Generator User's Manual 161

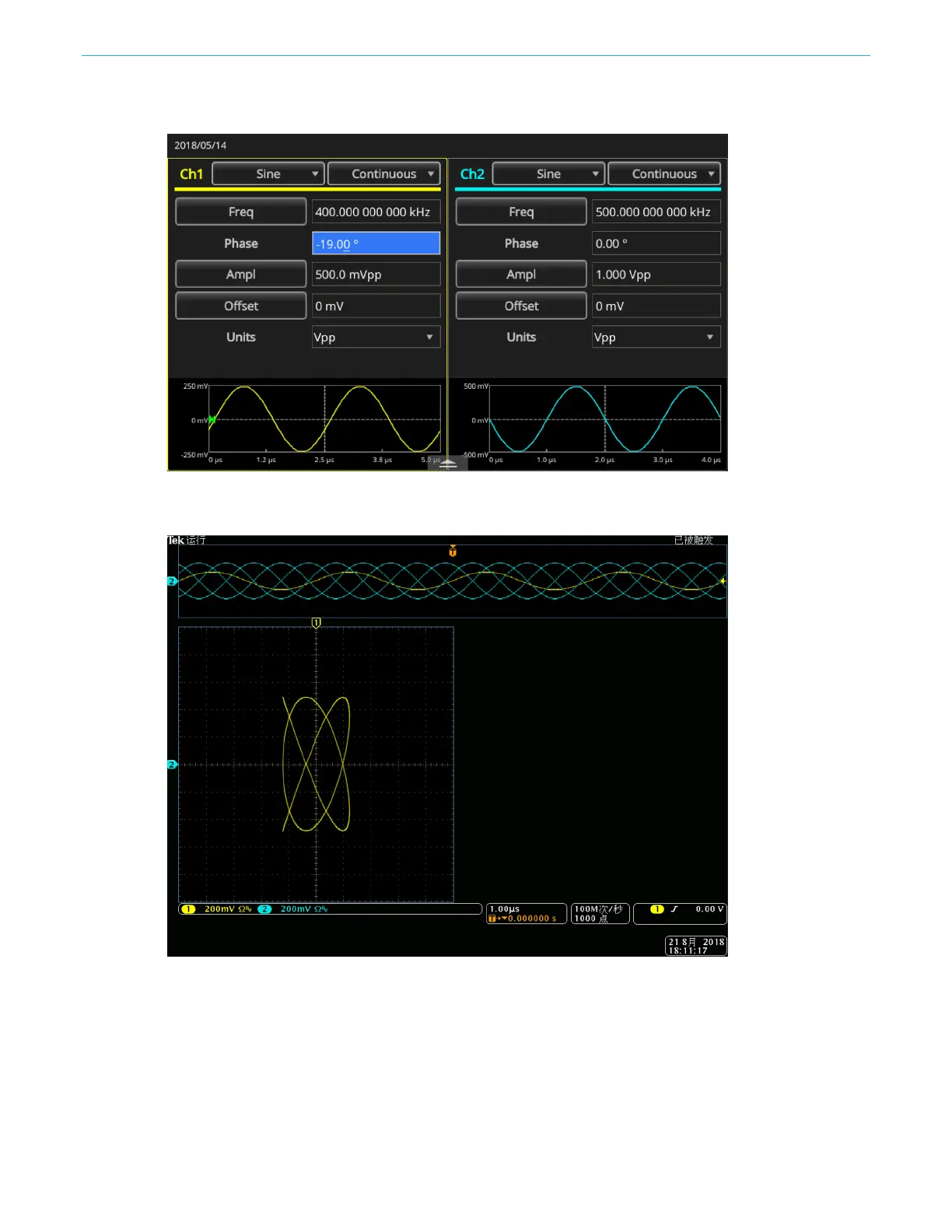

6. Change the phase of CH1 to -19°
Figure 164: Change the phase CH1 to -19
7. Observe the Lissajous pattern change shape.
Figure 165: Lissajous pattern changes
