Tektronix AFG31000 Series User Manual

Function introduction
108 AFG31000 Series Arbitrary Function Generator User's Manual
Advanced mode tutorial, connections

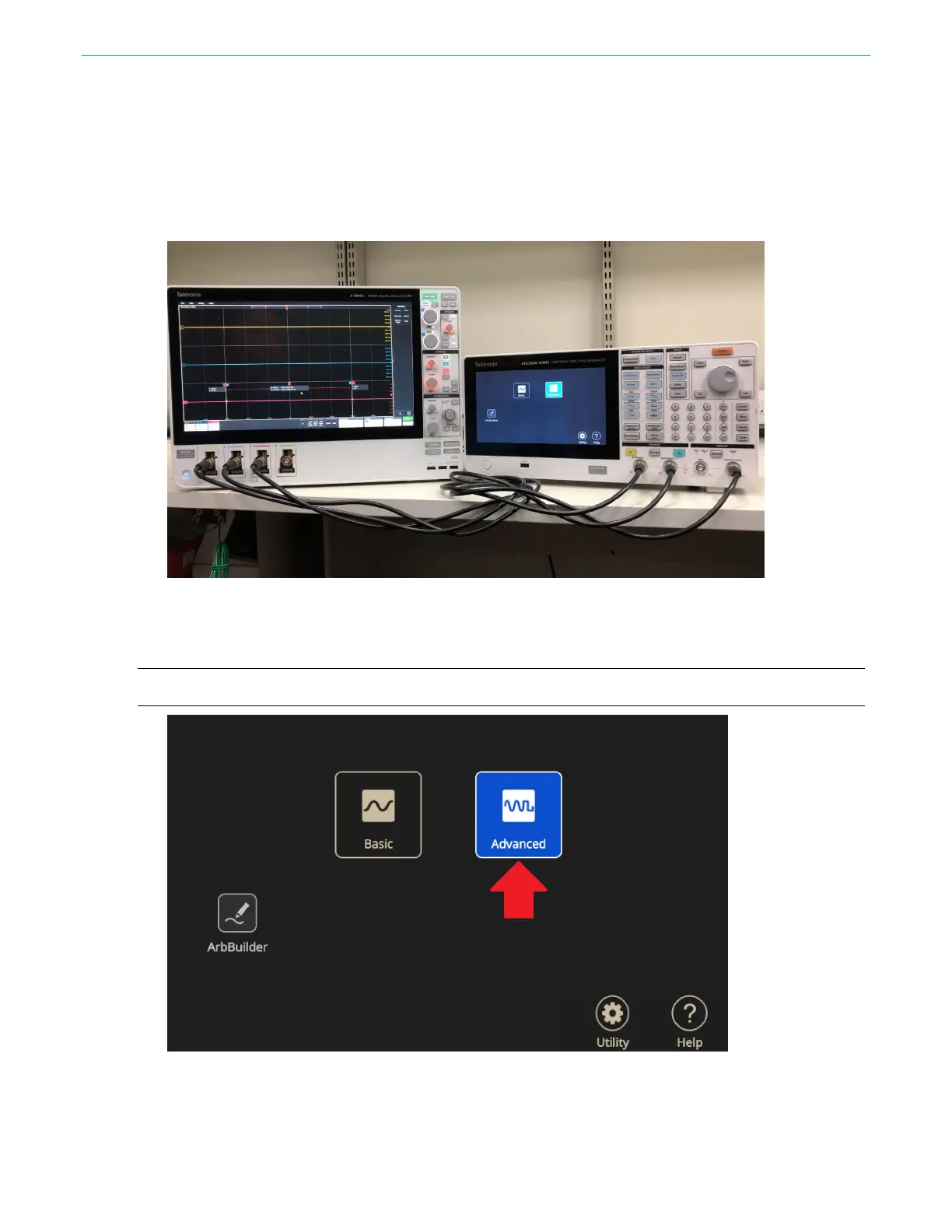

1. Connect CH1 output, CH2 output, and trigger out on the instrument to CH1, CH2, and CH3 on the
oscilloscope.
2. Set the trigger source of the oscilloscope to CH3.
Figure 92: Equipment setup
Advanced mode tutorial, process
NOTE. If you are not seeing the Home page, press the Home button on the front panel.
Figure 93: Advanced icon on the Home screen
