Function introduction
AFG31000 Series Arbitrary Function Generator User's Manual 81

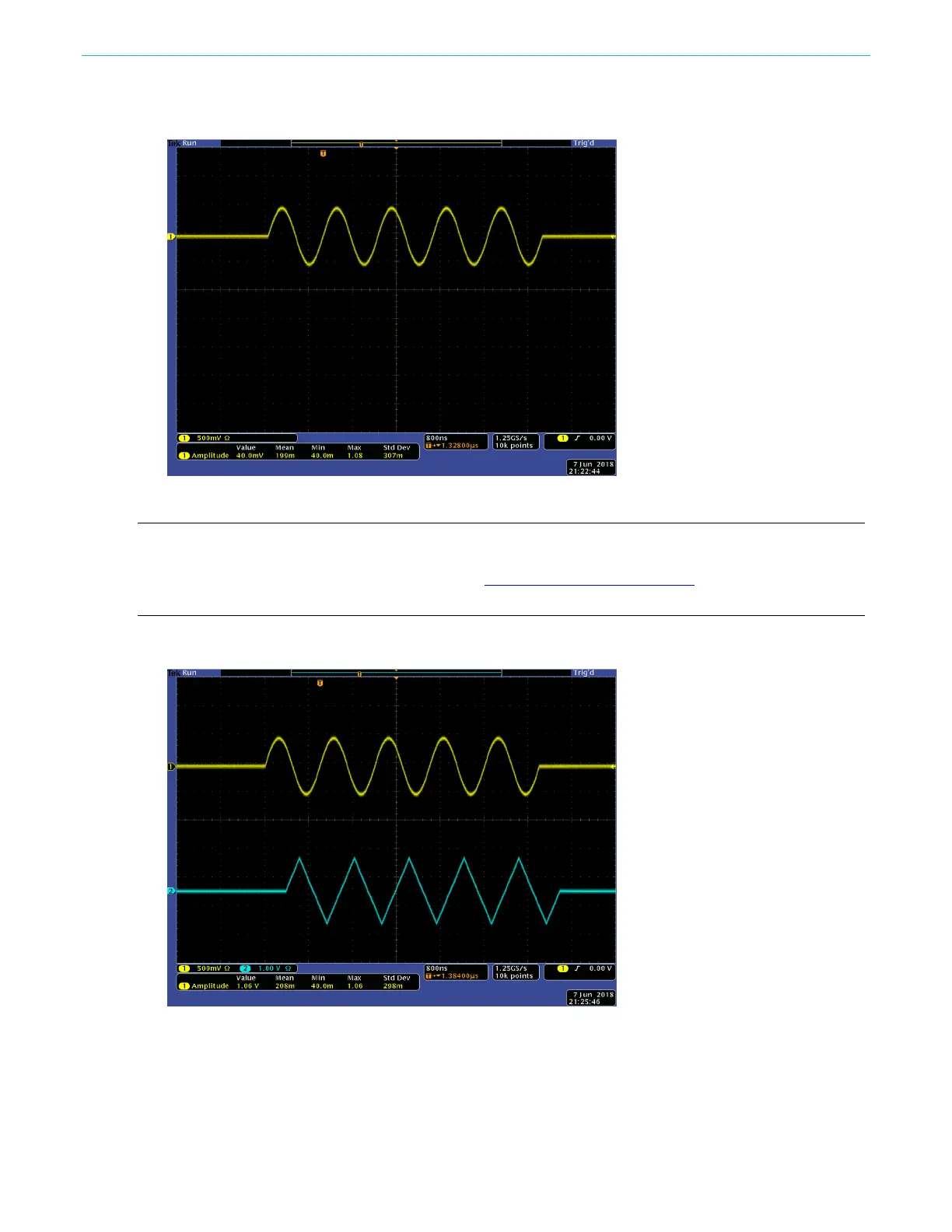

The following figure shows the master waveform.
Figure 59: Master instrument waveform
NOTE. If you use cables that are one meter long or longer, the subordinate signal may be delayed as
much as 40 ns or longer. We recommended that you set the delay between the master and subordinate
to 0 by adjusting the delay of the master unit (see
Tutorial: How to use InstaView (on page 86) for more
information).
The following figures show waveform outputs before and after they have been synchronized. The top
waveform is from the master instrument and the bottom waveform is from the subordinate instrument.
Figure 60: Master and subordinate before sync
