Function introduction
AFG31000 Series Arbitrary Function Generator User's Manual 55
Open or save arbitrary waveforms
You can save arbitrary waveforms in the instrument internal memory or USB memory. If you need to
save more waveforms, use a USB flash drive that is inserted in the USB port.
To open a waveform:
1. Select the Basic icon on the touchscreen.
2. On the touchscreen, swipe the white arrow at the bottom of the screen up and go to the
ArbBuilder tab (see touchscreen swipe areas (on page 51
) for more information).

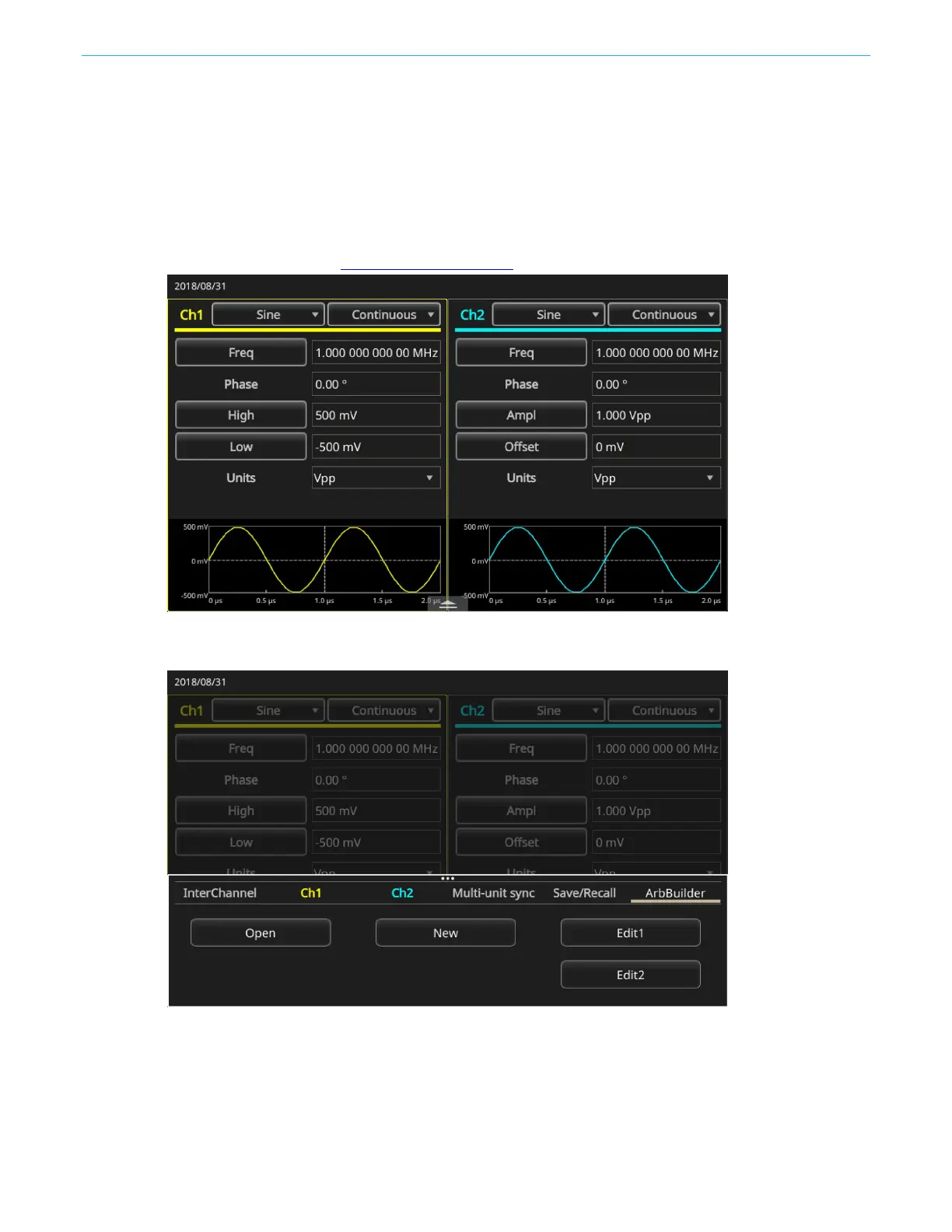

Figure 29: Bottom swipe area
3. Select Open.
Figure 30: ArbBuilder tab
