Function introduction
AFG31000 Series Arbitrary Function Generator User's Manual 147

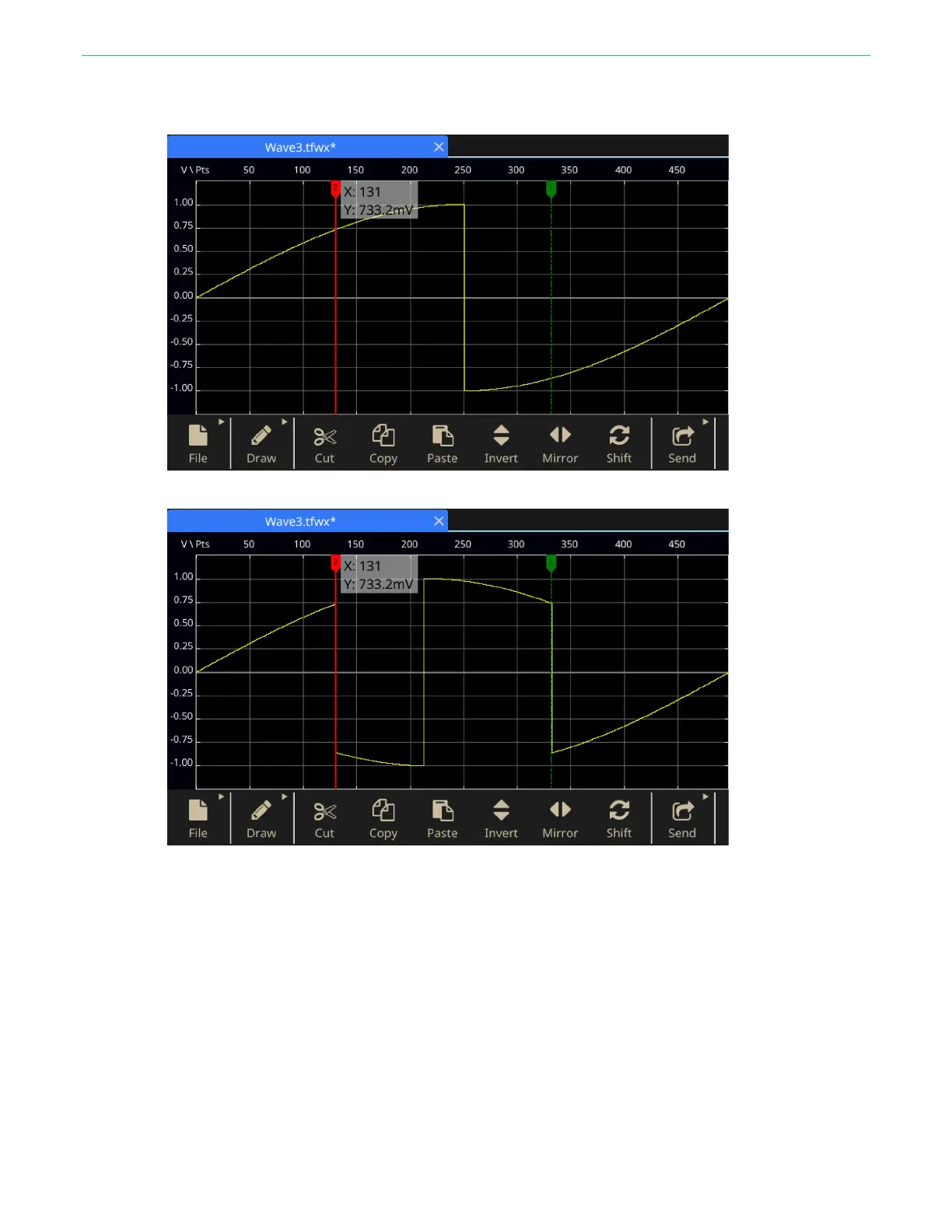

7. Mirror. It is used to overturn the waveform between the cursors in the horizontal direction.
Figure 144: ArbBuilder mirror
Figure 145: ArbBuilder mirror final
