Function introduction
132 AFG31000 Series Arbitrary Function Generator User's Manual
ArbBuilder
The included ArbBuilder software provides arbitrary waveform creation and editing while eliminating
the need to connect to a computer or use a USB flash drive to load arbitrary waveforms.
You can open previously created waveforms or create a new waveform using the ArbBuilder tool.
When you select the ArbBuilder icon to open ArbBuilder, the following screen is displayed.

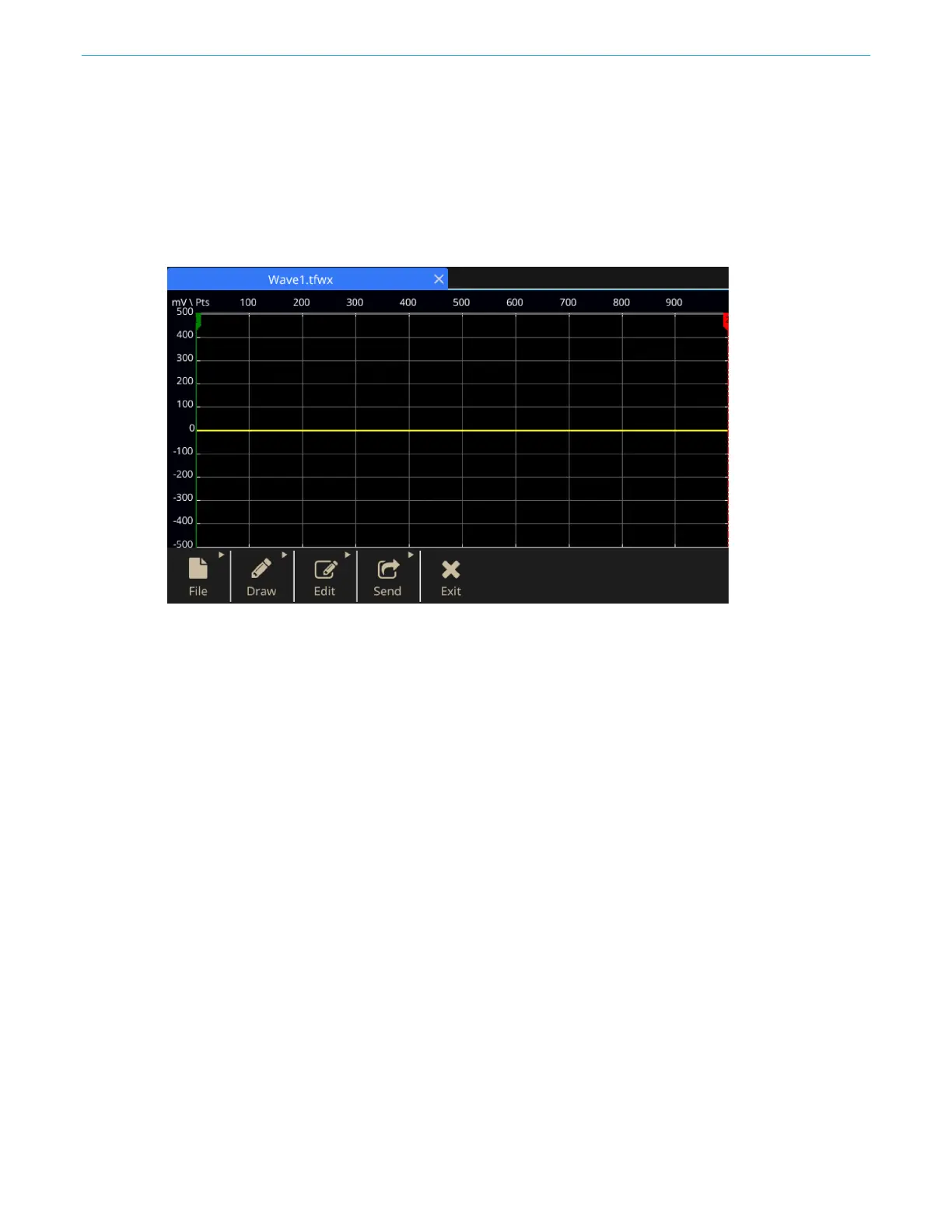

Figure 126: ArbBuilder home screen
ArbBuilder is a built-in application that allows you to create and edit arbitrary waveforms on the
function generator. You can create an arbitrary waveform or a template of standard waveforms. With
a large capacitive touchscreen, you can drag, pinch and zoom, or edit the waveform with your
fingertips.
You can replicate waveforms or load data files directly into ArbBuilder using a USB flash drive.
The completed waveform can be sent to hardware for replication; amplitude and offset will be set
automatically, without normalization.
