Display Wavefor
mData

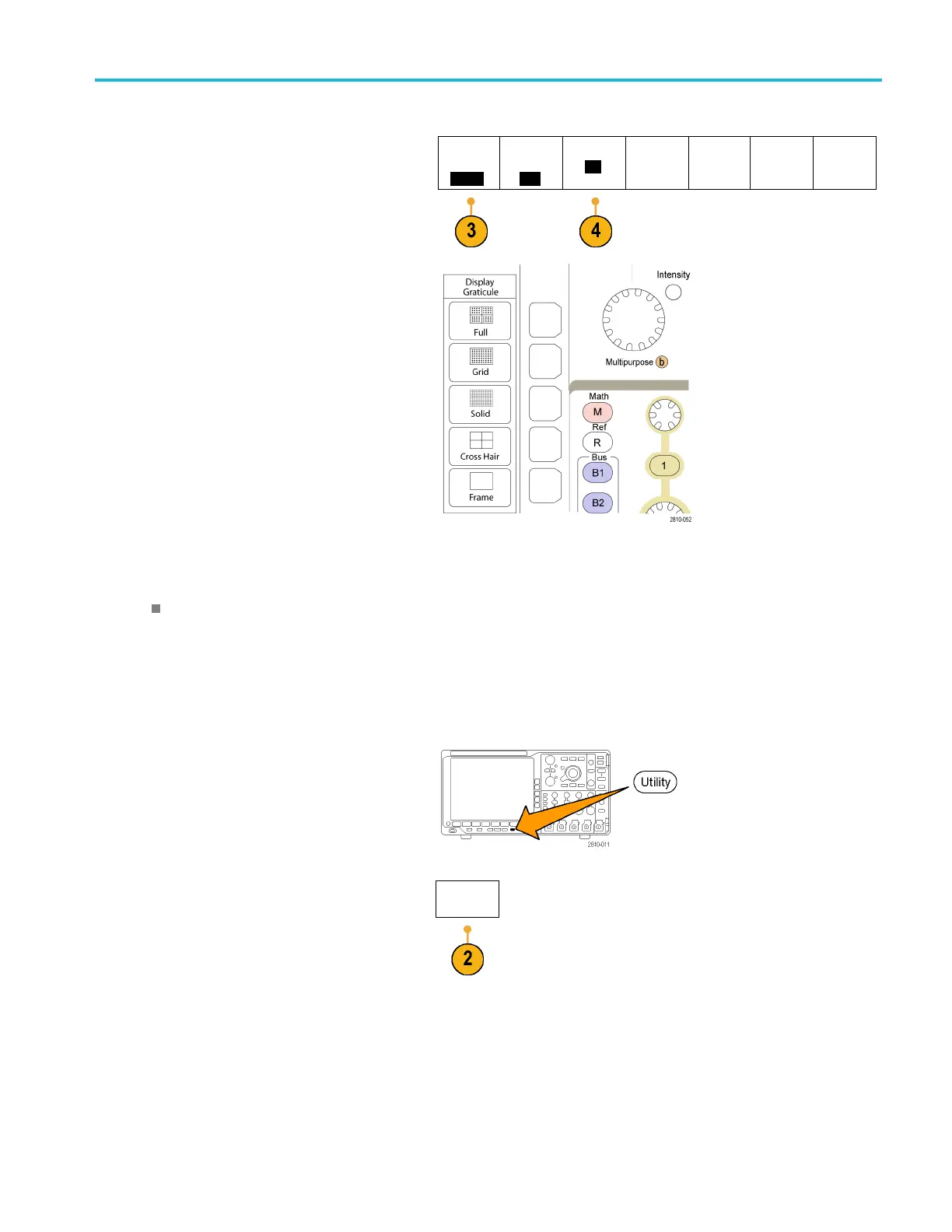

4. Push Graticule on the lower menu.
Utility
Page
Display
Backlight
Intensity
High
Graticule
Full
Screen
Annotation
Trigger
Frequency
Readout
5. Select the desired style from the resulting
side menu.
The Frame graticule provides a clean screen
on which you can most easily read automatic
measuremen
t results and other screen text.
The Full graticule can help you make cursor
measurements on hard copies.
The Grid, S
olid, and Cross Hair graticules
provide compromises between Frame and
Full.
Quick Ti
ps
You can display IRE and mV graticules. To do this, set the trigger type to video and set the vertical scale to
114 mV/division. (The 114 mV/division selection is available in the fine vertical scale settings for the channel when you
set the trigger type to video.) The oscilloscope will automatic ally display the IRE graticule for NTSC signals, and the mV
graticule for other video signals (PAL, SECAM, HDTV, and custom).
Setting the LCD Backlight
1. Push Utility.
2. Push Utility Page.
Utility
Page
MSO4000B and DP O4000B Series Oscilloscopes User Manual 93
