Installation
Optional application module packages extend the capability of your oscilloscope.
You can physically install up to four application modules at one time. Application modules go into the two slots with windows
in the upper ri
ght corner of the front panel. Two additional slots are directly behind the two that you can see. To use these
slots, install the module with the label facing away from you.
Each module has a license, which you can optionally transfer between your application modules and oscilloscope. You can
keep each license in the module, which will allow you to move the module from one instrument to another.
Alternatively, you c an move the l icense from the module to the oscilloscope. This approach will allow you to store the module
separately f
rom the oscilloscope for safe keeping. This approach will also allow you to use more than four applications on
your oscilloscope simultaneously.
To transfer a license from a module to your oscilloscope or from your oscilloscope to a module:
1. Turn off the power to the oscilloscope. Insert the application modules in the oscilloscope. Turn on the power.
2. Push Utility on the front panel. If needed, push Utility Page on the lower menu, and turn multipurpose knob a to s e lect
Config. Push Manage modules & Options on the lower menu and the appropriate side menu buttons to transfer
the lic ens
e from the module to the oscilloscope or from the oscilloscope to the module. Transfer up to four licenses
at one time.
3. After you turn off the power to the oscilloscope, you can remove the physical application module from the oscilloscope.
Refer to the Tektronix 4000 S e ries Oscilloscopes Application Module Installation Manual that came with your application
module for instructions on installing and testing an application module.
NOTE. If
you transfer a license from a module to an oscilloscope, the module w ill not work on another oscilloscope until
you transfer the license back from the oscilloscope to the module. Consider putting the physical module in a n envelope
or other storage with a label with the date, the m odule name, and the model and serial number of the oscilloscope, which
holds it
s license. This will help p revent trouble later if someone finds the module, installs it in some other oscilloscope,
and wonders w hy it does not work.
Changing the Language of the User Interface or Keyboard
To change the language of the oscilloscope user interface or keyboard, and to change the front panel button labels through
the use of an overlay:

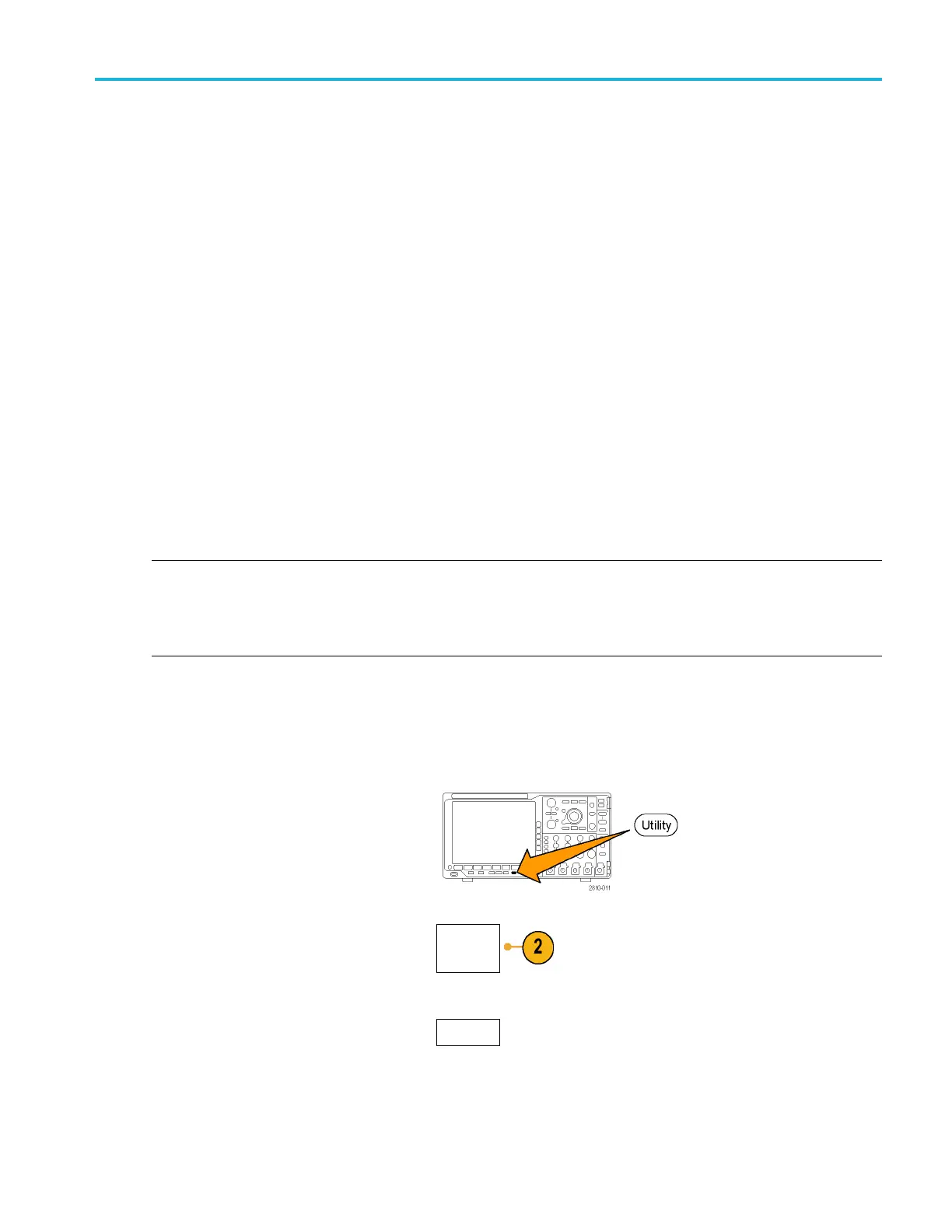

1. Push Utility.
2. Push Utility Page.
Utility
Page
3. Turn multipurpose knob a and select Config.
Config
MSO4000B and DP O4000B Series Oscilloscopes User Manual 17
To Next Page
