Analyze Wavefor
mData
Analyze Wavef
orm Data
After having properly set up the acquisition, triggering, and display of your desired waveform, you can then analyze the
results. Select from features such as cursors, automatic measurements, statistics, waveform histograms, math, and FFT.
Taking Automatic Measurements
To take an automatic measurement:

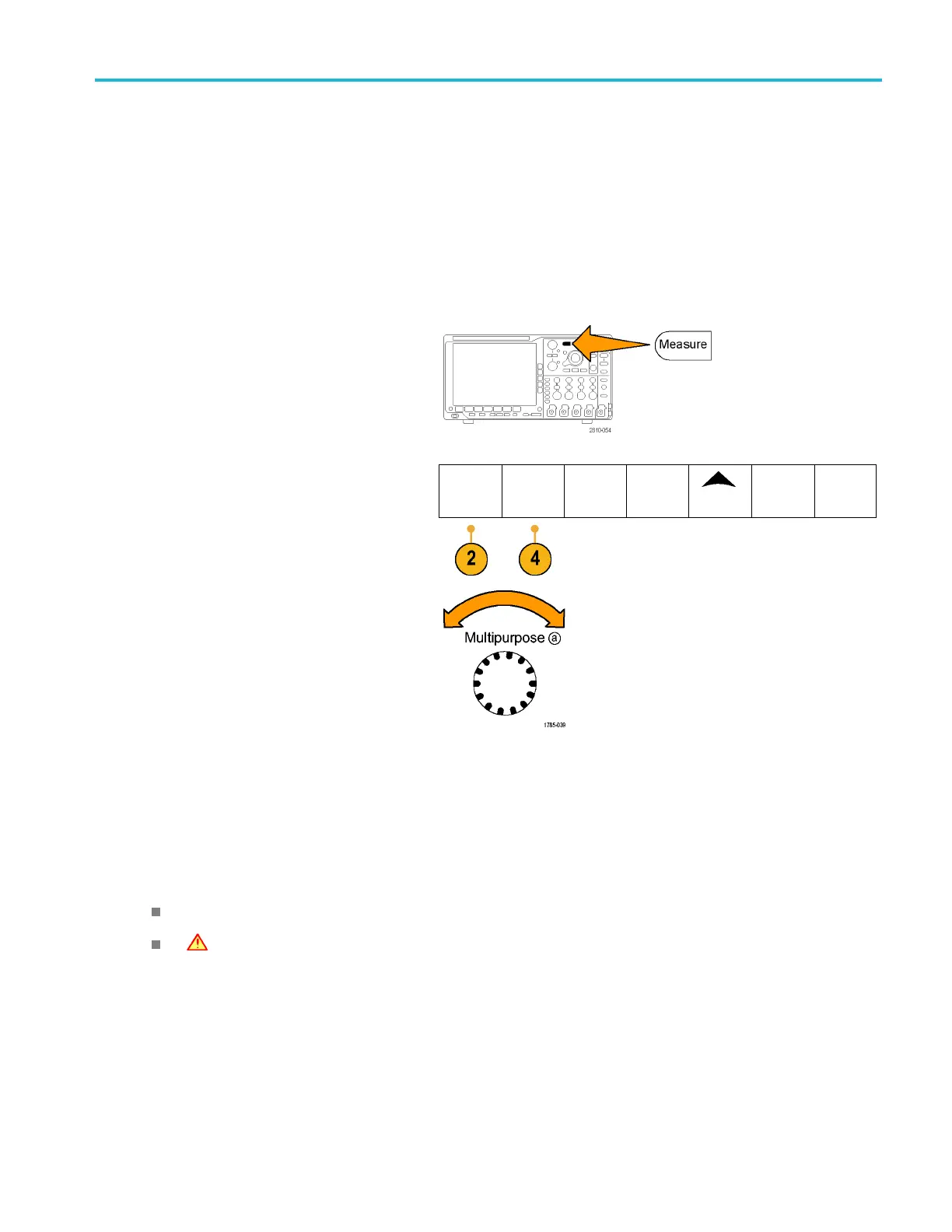

1. Push Measure.
2. Push Add Measurement.
Add Mea-
surement
Remove
Measure-
ment
Indicators
Waveform
His-
tograms
More
Bring
Cursors on
Screen
3. Turn multipurpose knob a to select the
specific measurement. If needed, then turn
multipurpose k nob b to select the channel to
measure on.
4. To remove a measurement, push Remove
Measurement, turn multipurpose knob a to
selec
t the specific measurement, and push
OK Remove Measurement on the side
menu.
Quick Tips
To remove all measurements, select Remove All Measurements.
A symbol appears instead of the e xpected numerical measurement if a vertical clipping condition exists. Part of the
waveform is above or below the display. To obtain a proper numerical measurement, turn the ve rtical scale and position
knobs to make all of the waveform appear in the display.
MSO4000B and DP O4000B Series Oscilloscopes User Manual 105
