Appendix C : P661
6 General-Purpose Logic P robe Information

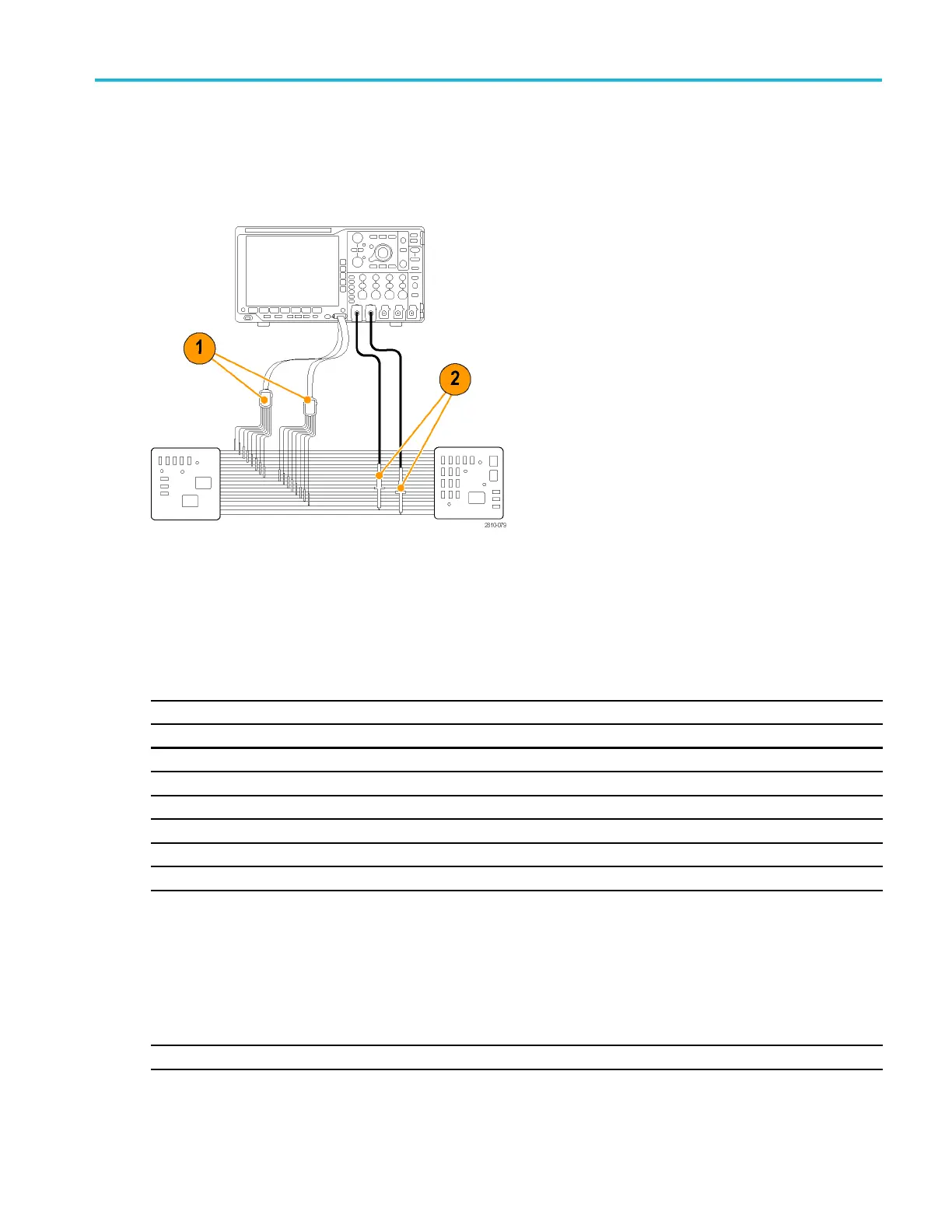

Typical Application
1. Use the P6616 probe to view digital signals on a system bus.
2. Use an analog probe, such as the TPP0500B or TPP1000 passive probe, to view analog waveform information.
Accessories
The following standard accessories ship with the probe and are s hown in the illustration on the following page.
Item Description Quantity Part n um ber
— Logic probe accessory kit Item 1–6 020-2662-XX
1 Extension ground tip
1 set of 20
020-2711-XX
2 Probe tip
1 set of 10
131-5638-11
3
IC grabber 1 set of 20
020-2733-XX
4 Probe tip holder 2 ea 352-1115-XX
5
8” Ground lead 1 set of 2
020-2713-XX
6
3” Ground lead 1 set of 8
020-2712-XX
Instructions
1
1 ea 071-2831-XX
1
Instructions are included with th e probe, but not in the accessory kit.
The instructions can be downloaded at www.tektronix.com/manuals.
These optional accessories can be ordered for your probe:
Description Part number
P6960 Probe D-MAX Footprint to Square Pin Header Adapter
NEX-P6960PIN
MSO4000B and DP O4000B Series Oscilloscopes User Manual 201
