Acquire the Sign
al
Act on Event
Have the oscilloscope perform a de fined action after a defined event has occurred. The event can be a trigger or a certain
number of acquisitions. The action can be to:
Stop acquisitions
Save a waveform or a screen image to a file
Print
Send a pulse out the AUX OUT port (See page 44, Rear-Panel Connectors.)
Generate a remote interface SRQ
Send an e-mail notification
Display a message on the oscilloscope display

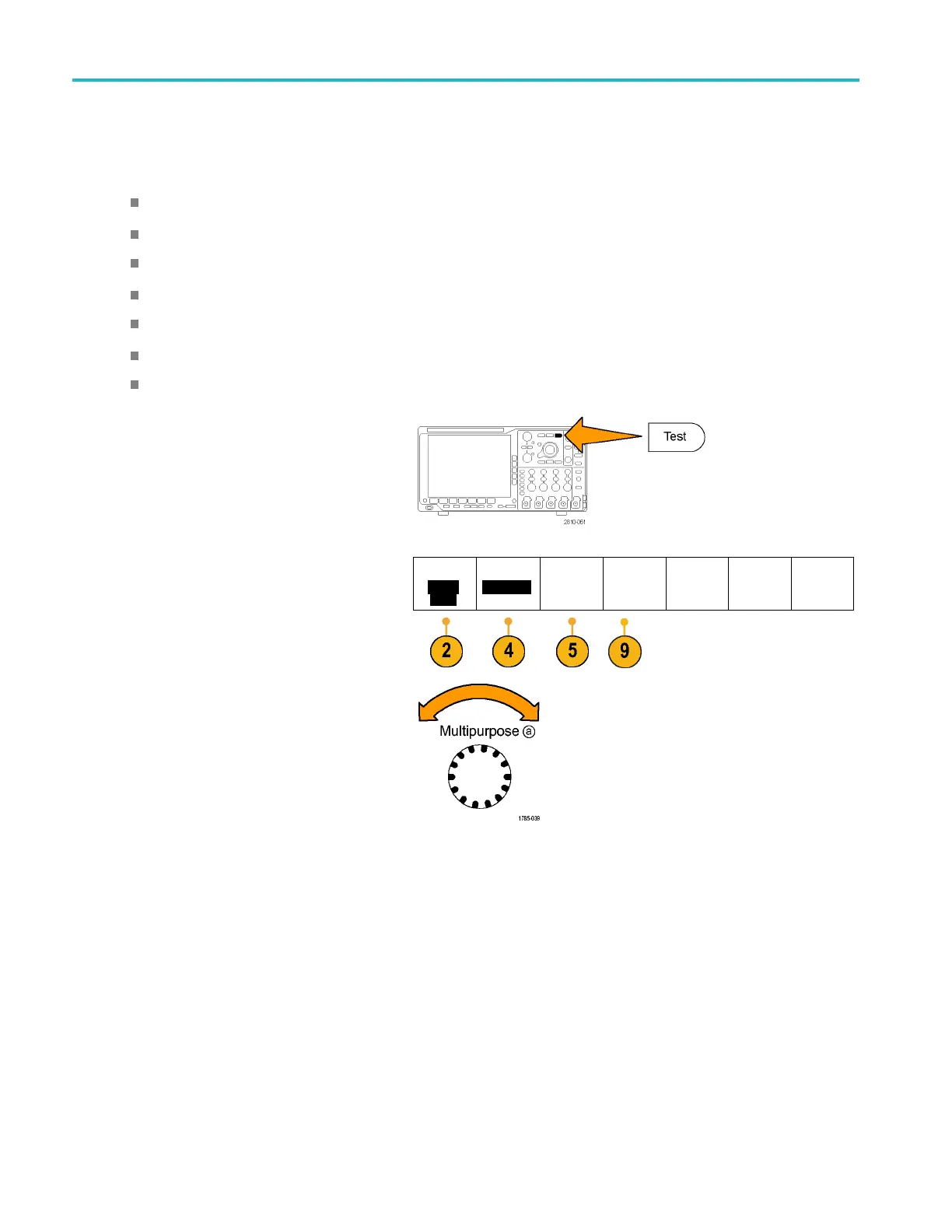

1. Push Test.
2. Push Application on the lower-menu.
Application
Act on
Event
Event
Acquisition
Action Repeat
Off
3. Turn Multipurpose a to select Act on Event
4. Push Event on the lower menu.
This brings up the event type side menu.
Select the desired event type.
58 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
To Next Page
