Acquire the Sign
al

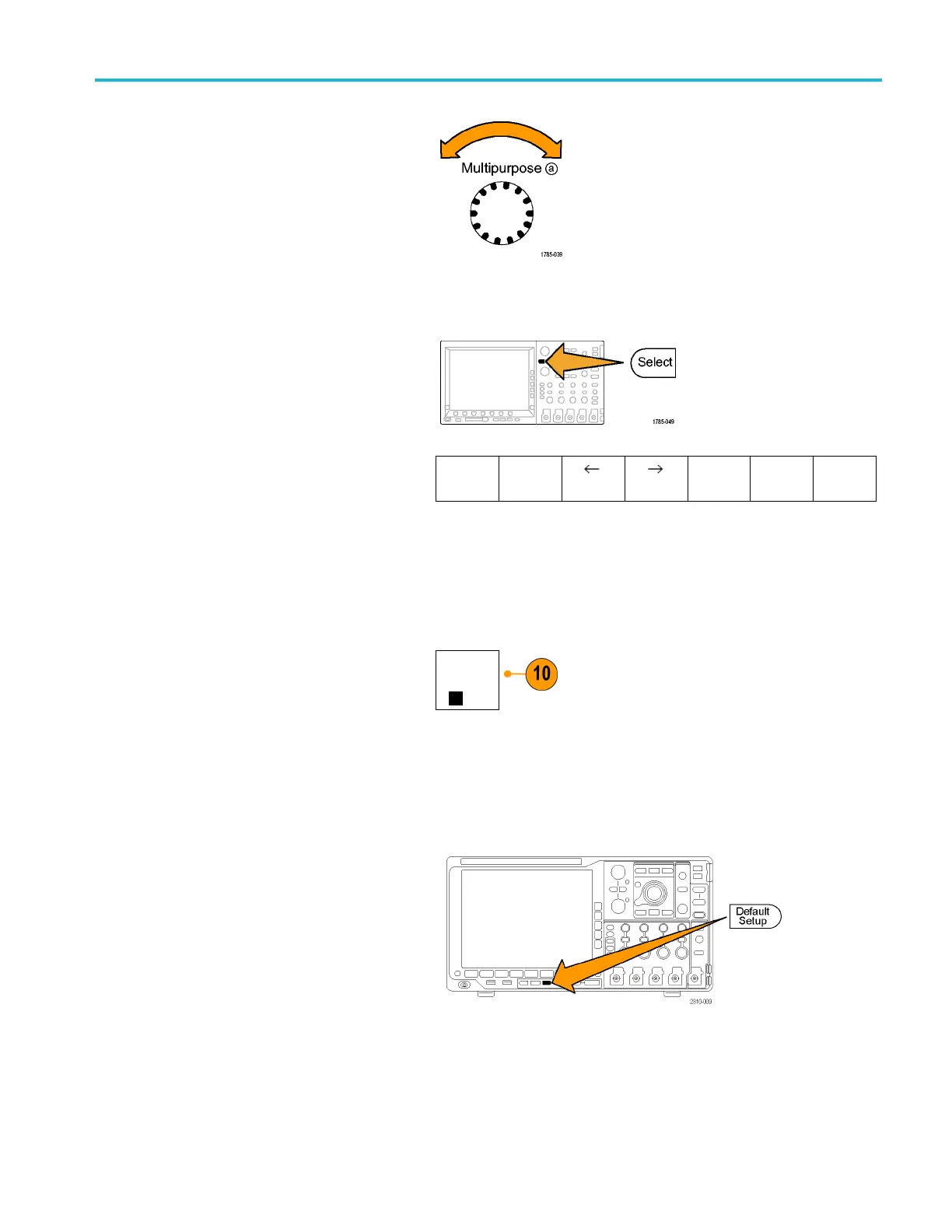

7. Turn multipurp
ose knob a to scroll through
the list of letters, numbers, and other
characters to find the character in the name
that you want t
o enter.
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789_=+-!@#$%^&*()[]{}<>/~'”\|:,.?
8. Push Select or Enter Character to let the
oscilloscope know that you have picked the
proper character to use.
You can use the lower menu buttons to edit
the label as needed.
Enter
Character
Back
Space
Delete
Clear
9. Continue scrolling and pushing Select until
you have entered all the desired characters.
For another label, push the side and lower
menu arrow keys to reposition the insertion
point.
10. Push Display Labels and select On to see
the label.
Display
Labels
On|Off
Using the Default Setup
To re
turn the oscilloscope to its default settings:
1. Push Default Setup.
MSO4000B and DP O4000B Series Oscilloscopes User Manual 49
