Acquire the Sign
al

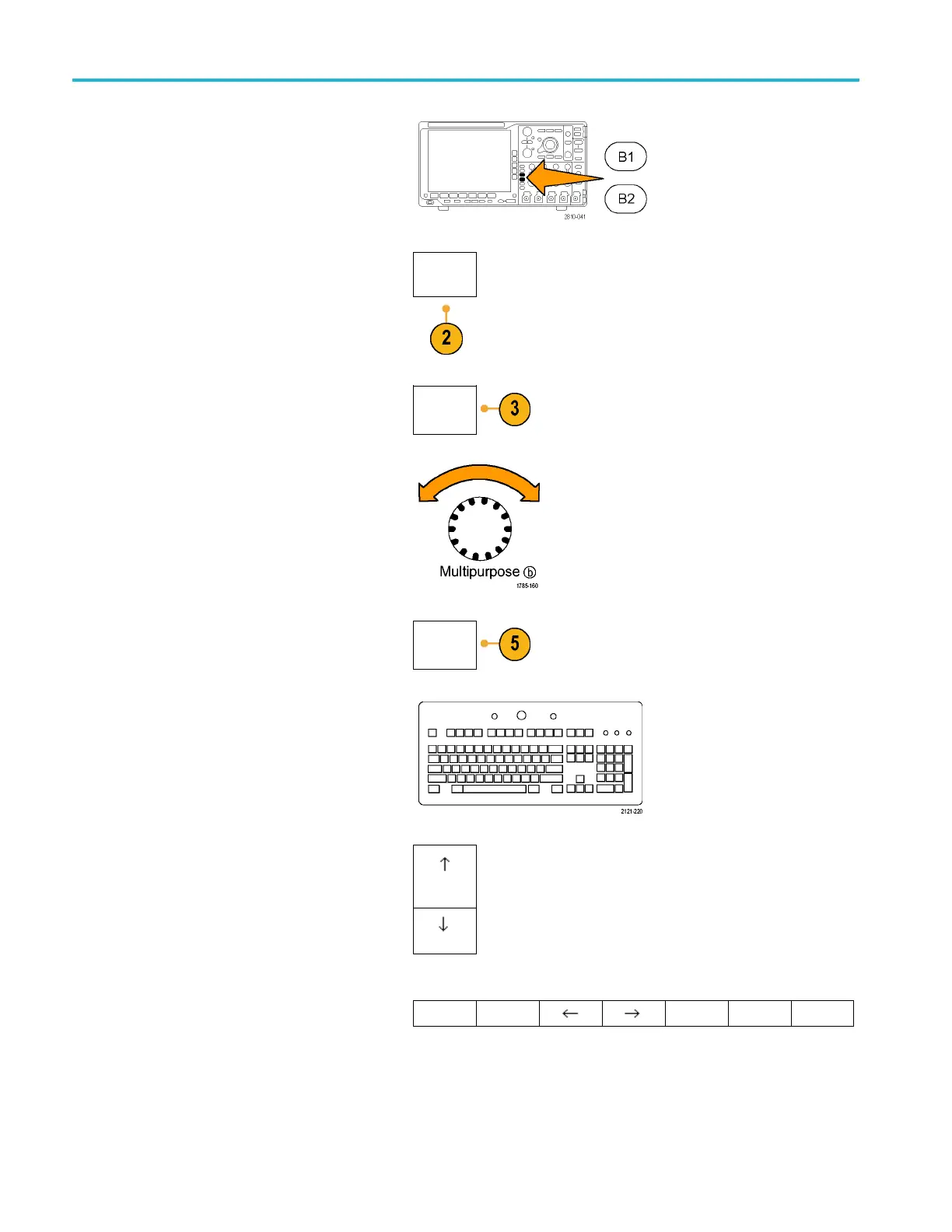

2. Push a lower menu button to create a label,
such as for channel 1 or B1.
Label
3. Push Select Preset Label to view a list o f
labels.
Select
Preset
Label
4. Turn multi
purpose knob b to scroll through
the list to find a suitable label. You can edit
the label after you insert it if necessary.
5. Push Insert Preset Label to add the label.
Insert
Preset
Label
If you are using a USB keyboard, use the
arrow k
eys to position the insertion point and
edit the inserted label, or type in a new label.
(See page 30, Connecting a USB Keyboard
to Yo u
r Oscillos cope.)
6. If you do not have a USB keyboard
connected, push the side and lower menu
arrow keys to position the insertion point.
48 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
