Front Panel Menus and Controls
The front panel has buttons and controls for the functions that you use most often. Use the menu buttons to access
more specialized functions.
Using the Menu System
To use the menu system:

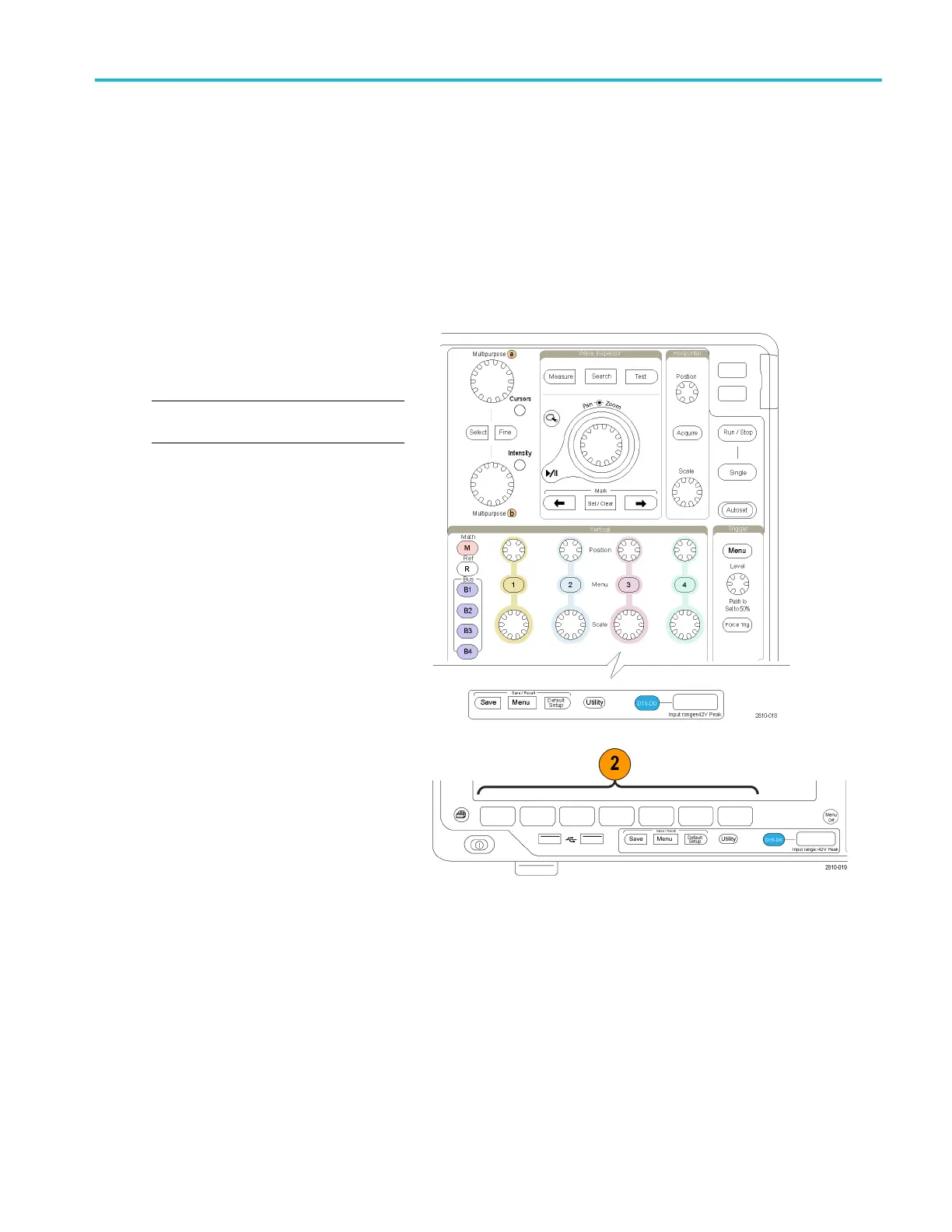

1. Push a front panel menu button to
display the menu that you want to use.
NOTE. The B1 through B4 buttons support
up to four different serial or parallel buses.
2. Push a
lower menu button to select a
menu item. If a pop-out menu appears,
turn multipurpose knob a to select
the de
sired choice. If a pop-up menu
appears, push the button again to select
the desired choice.
MSO4000B and DP O4000B Series Oscilloscopes User Manual 31
