Application Exa
mples

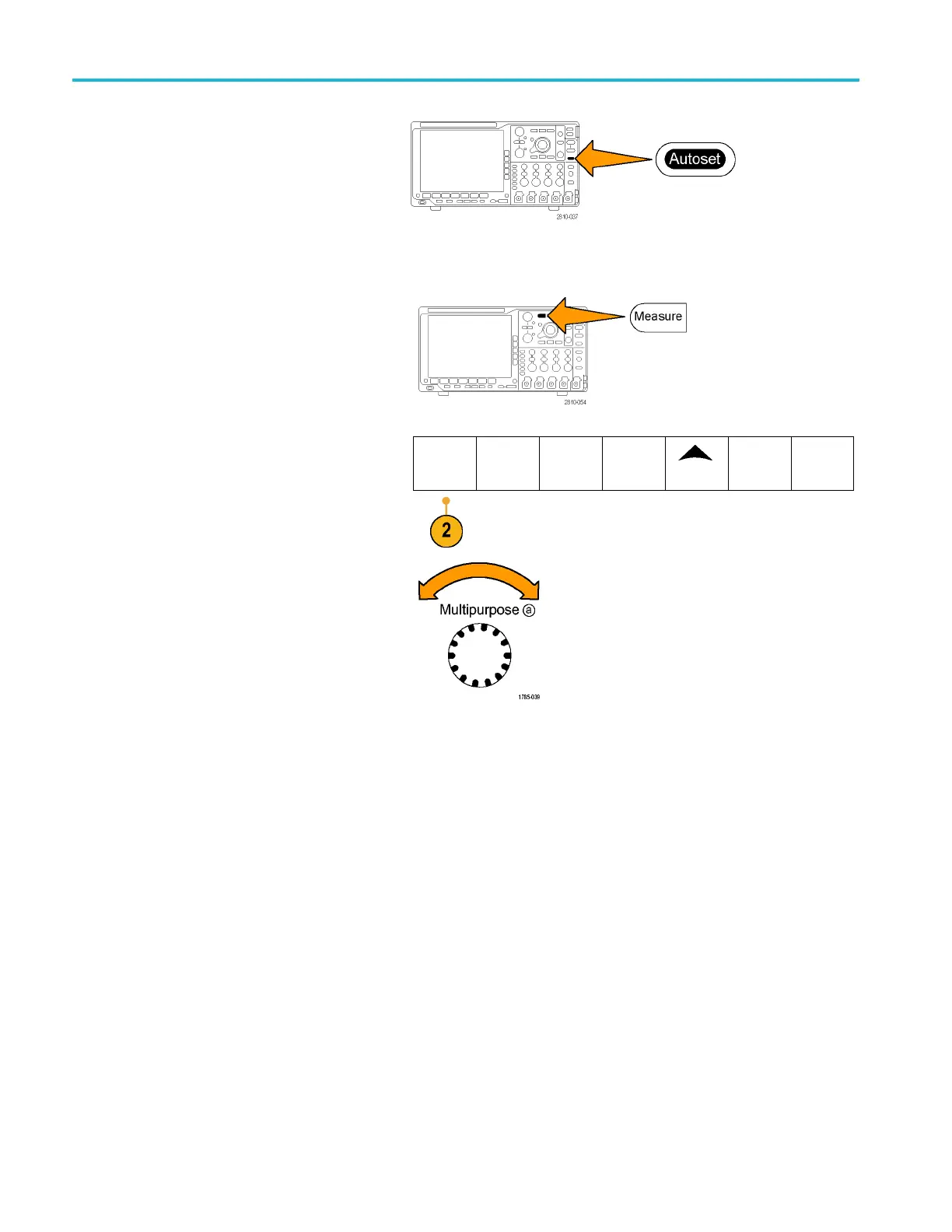

2. Push Autoset.
To select measurements for the two channels:
1. Push Measure
to see the measurement
menu.
2. Push Add Measurement.
Add Mea-
surement
Remove
Measure-
ment
Indicators
Waveform
His-
tograms
More
Bring
Cursors
On Screen
3. If needed, from the side menu, push Source
and turn multipurpose knob a to selec t
channel 1. Turn multipurpose k nob b to
select the Amplitude measurement. Push
OK Add Measurement from the side m enu.
Repeat this p rocess to select channel 2 and
again push OK Add Measurement.
166 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
