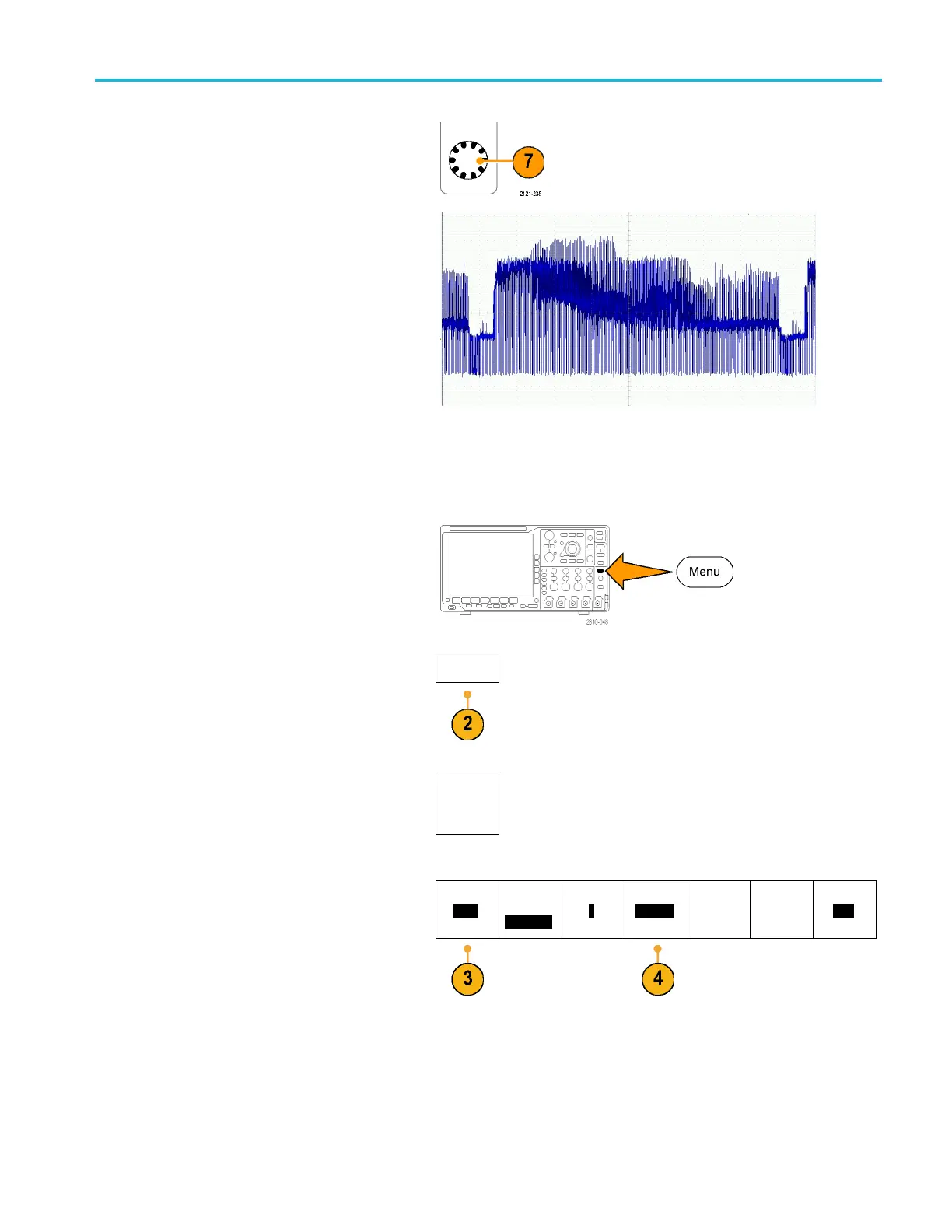

7. Turn the Horizontal Scale knob to see a
complete field across the screen.
8. View results.
Triggering on Lines
Triggering on L ines. To look at the video lines in the field:
1. Push Trigger Menu.
2. Push Type.
Type
3. Turn multipurpose knob a to scroll through
the trigger type side menu until you select
Video.
Video
Type
Video
Video
Standard
525/NTSC
Source
1
Trigger On
All Lines
Mode
Auto
& Holdoff
4. Push Trigger On.
MSO4000B and DP O4000B Series Oscilloscopes User Manual 175
