Application Exa
mples

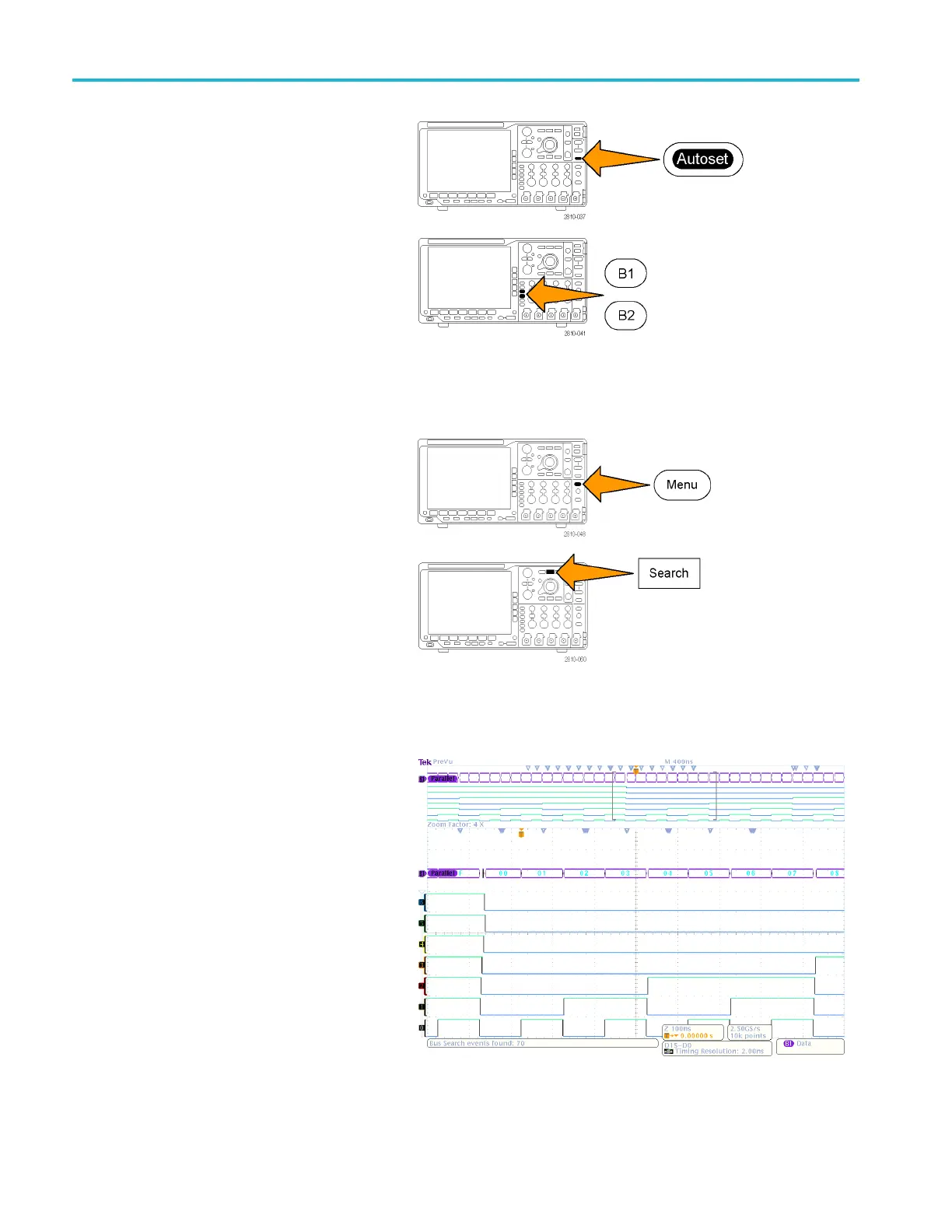

5. Push Autoset.
6. Push the B1 button, select Parallel as the
bus type. Push Define Inputs on the lower
menu and ente
r the parameters for your bus
for Clocked Data, Clock Edge, the Number
of Bits, and Define Bits.
7. Turn the Hor
izontal Scale knob to adjust the
time base.
As you increase the time per division, you
will see mo
re data appear in the Bus display.
8. Push Trigger Menu. Push Type, select Bus,
and enter the parameters of the trigger, such
as the Sou
rce Bus and Data. Define the
Mode and Holdoff as desired.
9. Push Sear
ch, push Search on the lower
menu, and select On from the side m enu.
10. Push Se
arch Type. Use the multipurpose
knob a to select Bus and then push Data.
Use the multipurpose knobs a and b to
define
the data value.
11. Push the Previous and Next Mark buttons to
navigate through the record.
12. P ush Zoom, and Pan to the areas of interest
to an
alyze the results.
184 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
