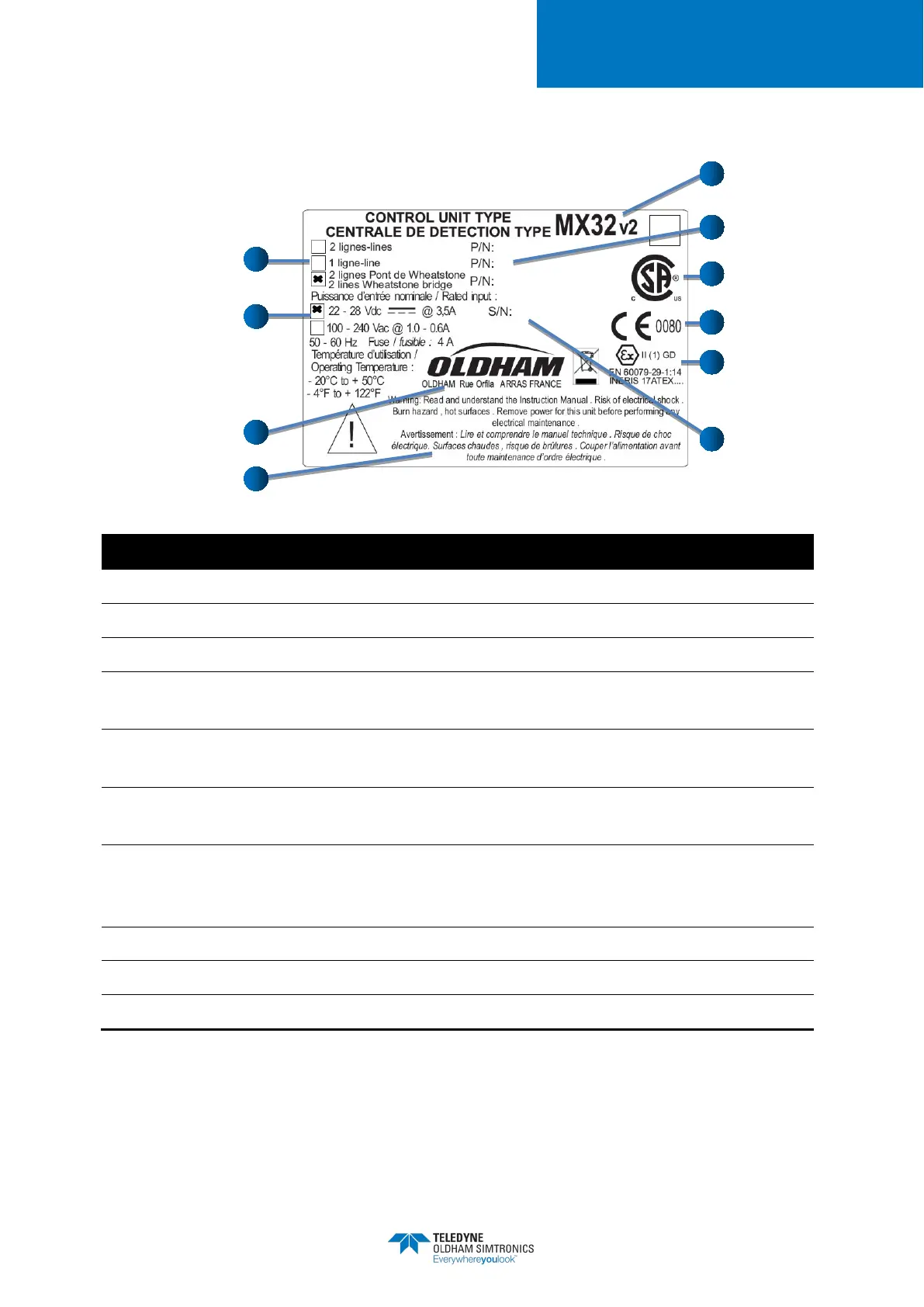

2.3 Firmplate
It contains relevant information with respect to the controller version (CSA or ATEX variants).
Tag.
Description
1.
Product Name
2.
Part Number
3.
CSA mark
4.
CE marking with identification of the Notified Body that assessed the TELEDYNE
OLDHAM SIMTRONICS manufacturing quality system (0080 - INERIS)
5.
ATEX marking (Performance requirements of gas detection systems for flammable
gases)
6.
Serial Number. The first two digits (in this case 17) correspond to the year of
manufacture (in this case 2017).
7.
Variant (1 or 2 lines to work with 4-20mA analog detector or TELEDYNE OLDHAM
SIMTRONICS digital detector, or 2 channels to work with Wheatstone bridge gas
detectors). In this example, version ‘Wheatstone Bridge’.
8. Power supply type (24Vdc or 100-240Vac). In this example, 24Vdc type.
9.
Name and mail address of the Manufacturer
10.
Warnings
2.4 The COM 32 Software
This is intended for setting the MX32v2 parameters from a Windows
®
operated PC. The
operation and use of this application is covered in a special training course.
