TELEDYNE OLDHAM SIMTRONICS MX32 - Module Wiring Diagrams

MX32v2
ANALOG AND DIGITAL CONTROLLER
USER MANUAL
NP32V2EN
Revision D.0
37
6.2 4- or 8-Relay Modules

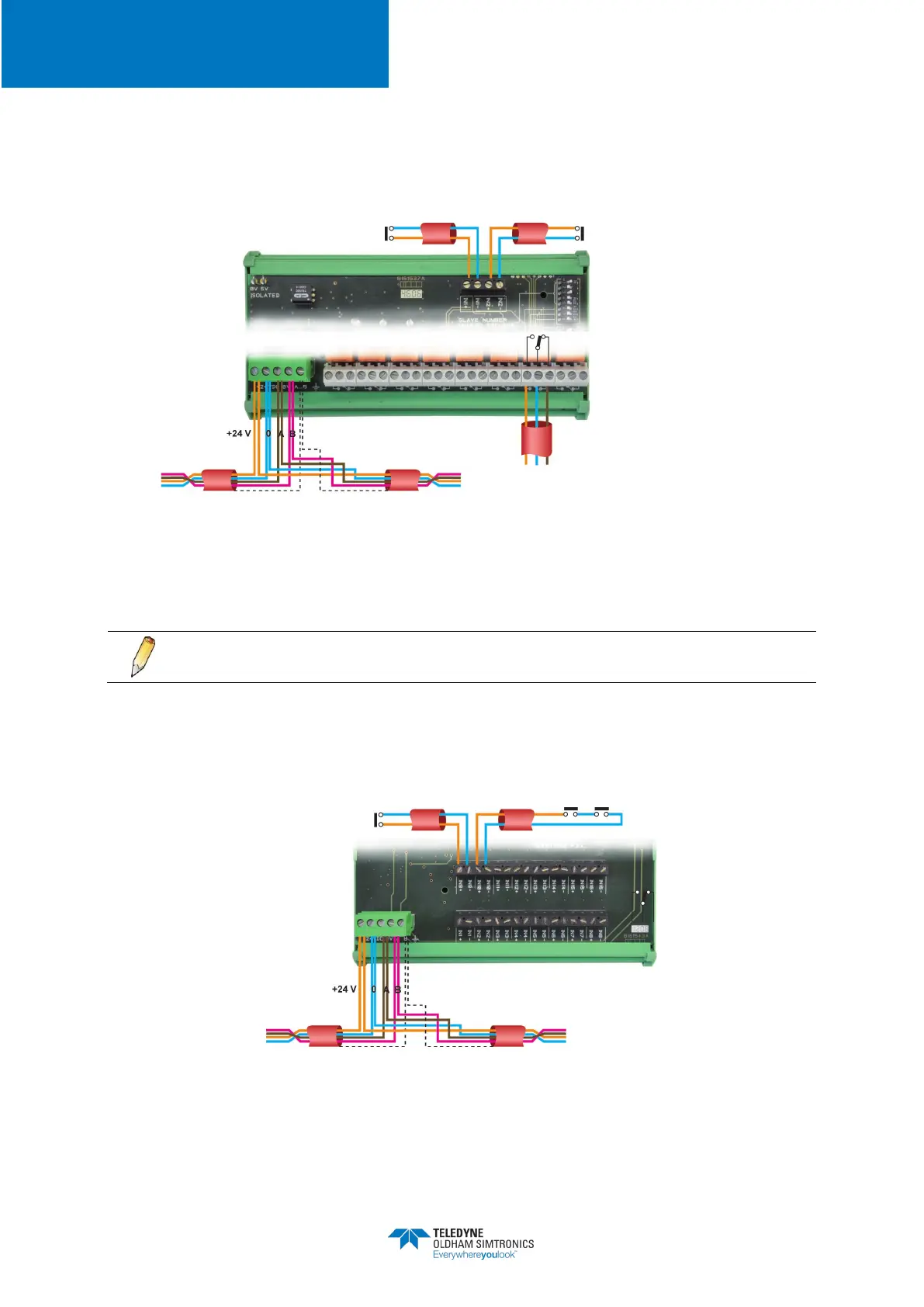

Figure 29: 4- or 8-relay module connections
If this module is the last on the line, do not forget to set the switch marked EOL
resistor/resistance FDL to ON.
6.3 16-Logic Input Module
Figure 30: 16-logic input module connections.
To next module
To MX32v2
or previous module
Supervised contact Supervised contacts
Supervised
To next
module
To MX32v2
or previous module
Supervised
contact
4 or 8 output
contacts DPCO
(2A/250Vac-24Vdc
