TELEDYNE OLDHAM SIMTRONICS MX32 - 8-Analog Input Module

MX32v2
ANALOG AND DIGITAL CONTROLLER
USER MANUAL
38
NP32V2EN
Revision D.0
If this module is the last on the line, do not forget to set the switch marked EOL
resistor/resistance FDL to ON.
6.4 8-Analog Input Module

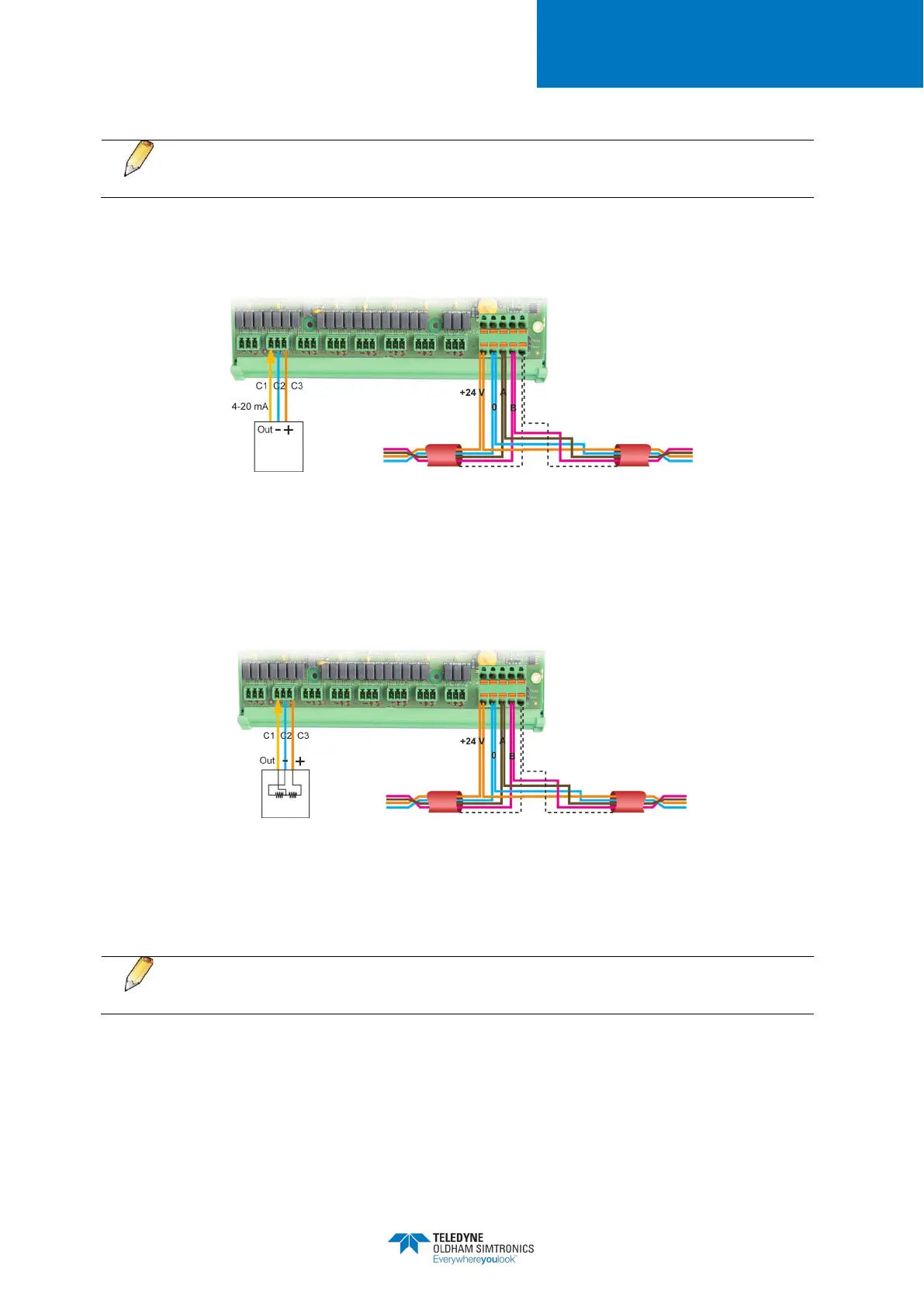

Figure 31: Connection of the 8 analog input modules (with 4-20mA detector)
Figure 32: connection of the 8 analog input module (with Wheatstone Bridge detector)
If this module is the last of the line, do not forget to set the jumper marked
EOL
Resistor to Closed position.
To next module
To
MX32v2
or previous module
Wheatstone
bridge type
detector
To next module
To MX32v2
or previous module
