2.2 The different Versions
The MX32v2 controller is available in 3 versions:1 line,
• 2 lines,
• Bridge Version (2 channels) for direct monitoring of Wheatstone bridge flammable gas
detectors.

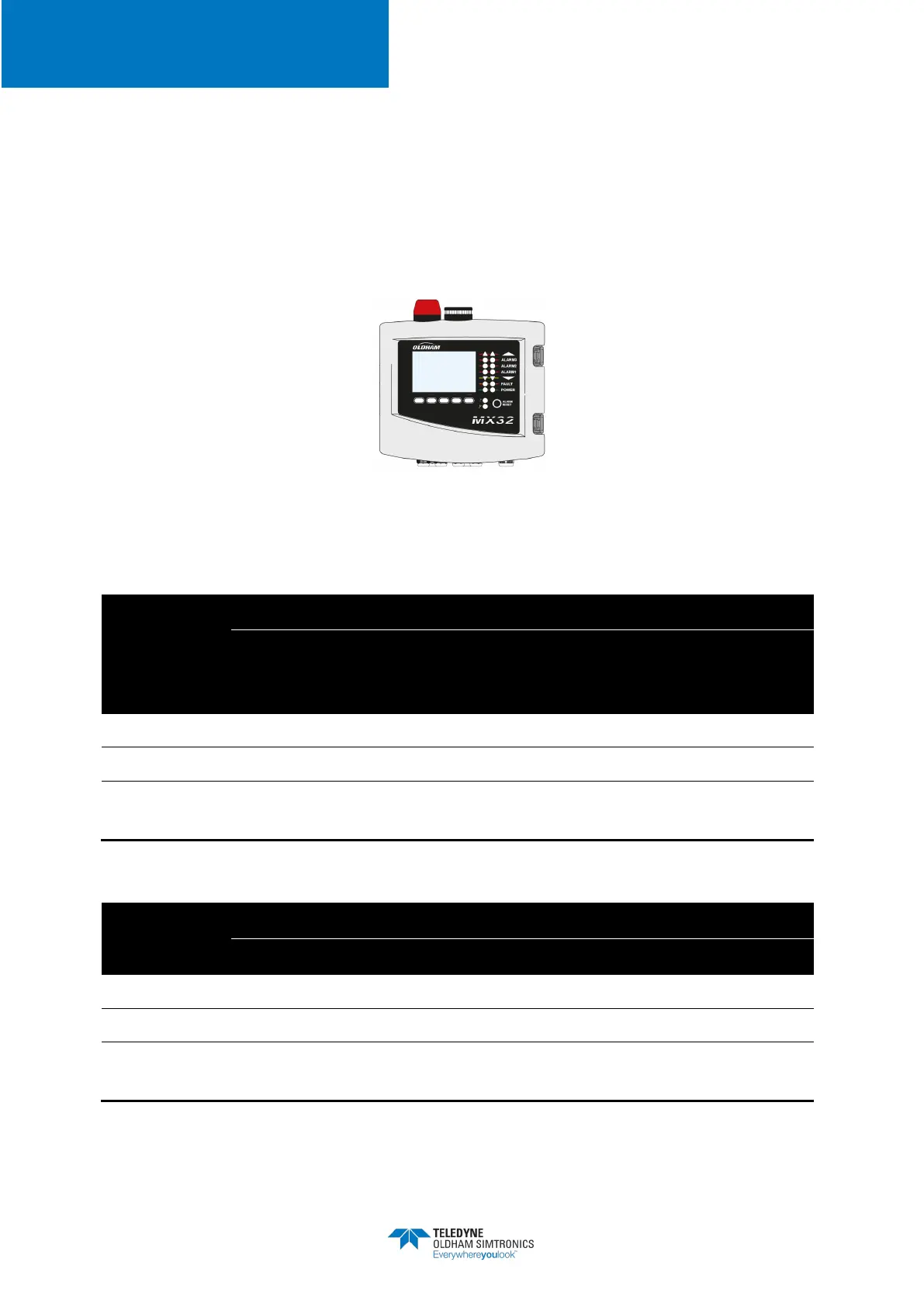

Figure 3: MX32v2
The following table details the different possible configurations depending on the controller’s
version. On each line, it is possible to connect 4-20mA analog detectors or digital addressable
modules.
Maximum Capacity
Version
Detectors
Analog Input
Modules
Relay Output
Modules
Logic Input
Modules
Analog
Output
Modules
1 line 4 1 2 1 1
2 lines 8 2 4 2 2
Wheatstone
Bridge
2
(1)
0 0 0 0
(1) OLC 10, OLC 10Twin or OLC 100 flammable gas detectors
Maximum Capacity
Version
External Relays
Logic Inputs
Analog Outputs
1 line
8
16
4
2 lines 16 16 8
Wheatstone
Bridge
0
0 0
• Table 1: Summary of the maximum capacity as per the controller type
