TELEDYNE OLDHAM SIMTRONICS MX32 - MX32 v2 Controller Introduction; Purpose of the MX32 v2 Controller

MX32v2
ANALOG AND DIGITAL CONTROLLER
USER MANUAL
NP32V2EN
Revision D.0
5
2 General Introduction
2.1 Purpose of the MX32v2 controller
This controller is intended for the continuous measurement and control of the gases present in
the atmosphere.
MX32v2 8 relay output modules
and 4 4-20mA output
modules

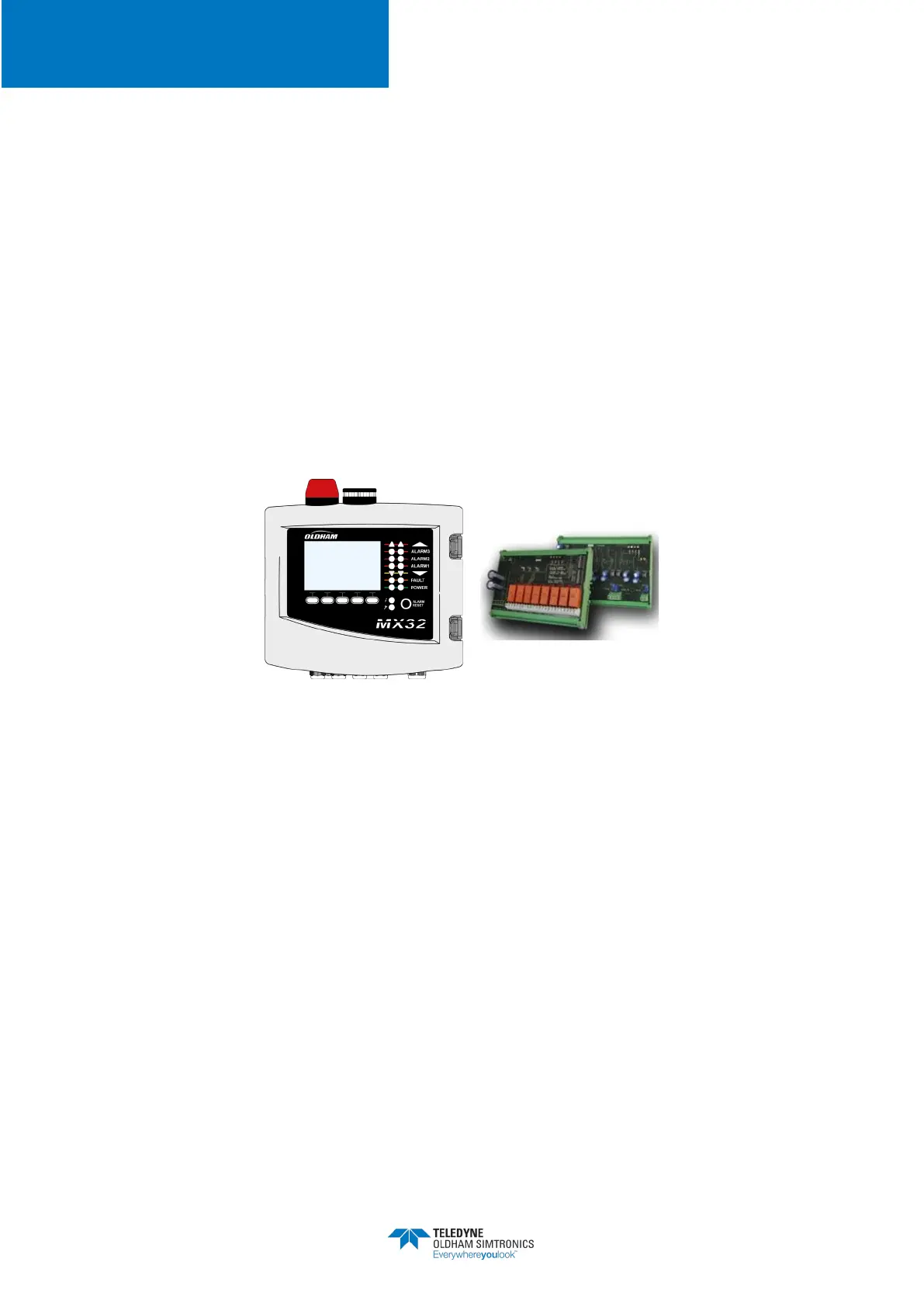

Figure 1: MX32v2 and examples of the modules
The system primarily comprises :
• a MX32v2 (1 or 2 lines),
• different modules (analog or digital detectors, logic inputs, analog inputs, relay outputs,
and analog outputs).
The MX32v2 instantly handles the measurements of detectors and input modules. As soon as the
measurements reach the configured thresholds, the internal buzzer and the LED indicators go
off. At the same time, the corresponding relays are activated to drive the additional actions
programmed by the user.The MX32v2 controller is programmed by using the COM 32
configuration software.Figure 2 presents a configuration example.
