5.6 8-Analog Input Module
5.6.1 Function
This digital module enables the monitoring
of 8
analog inputs (4-20 mA o Wheatstone bridge)

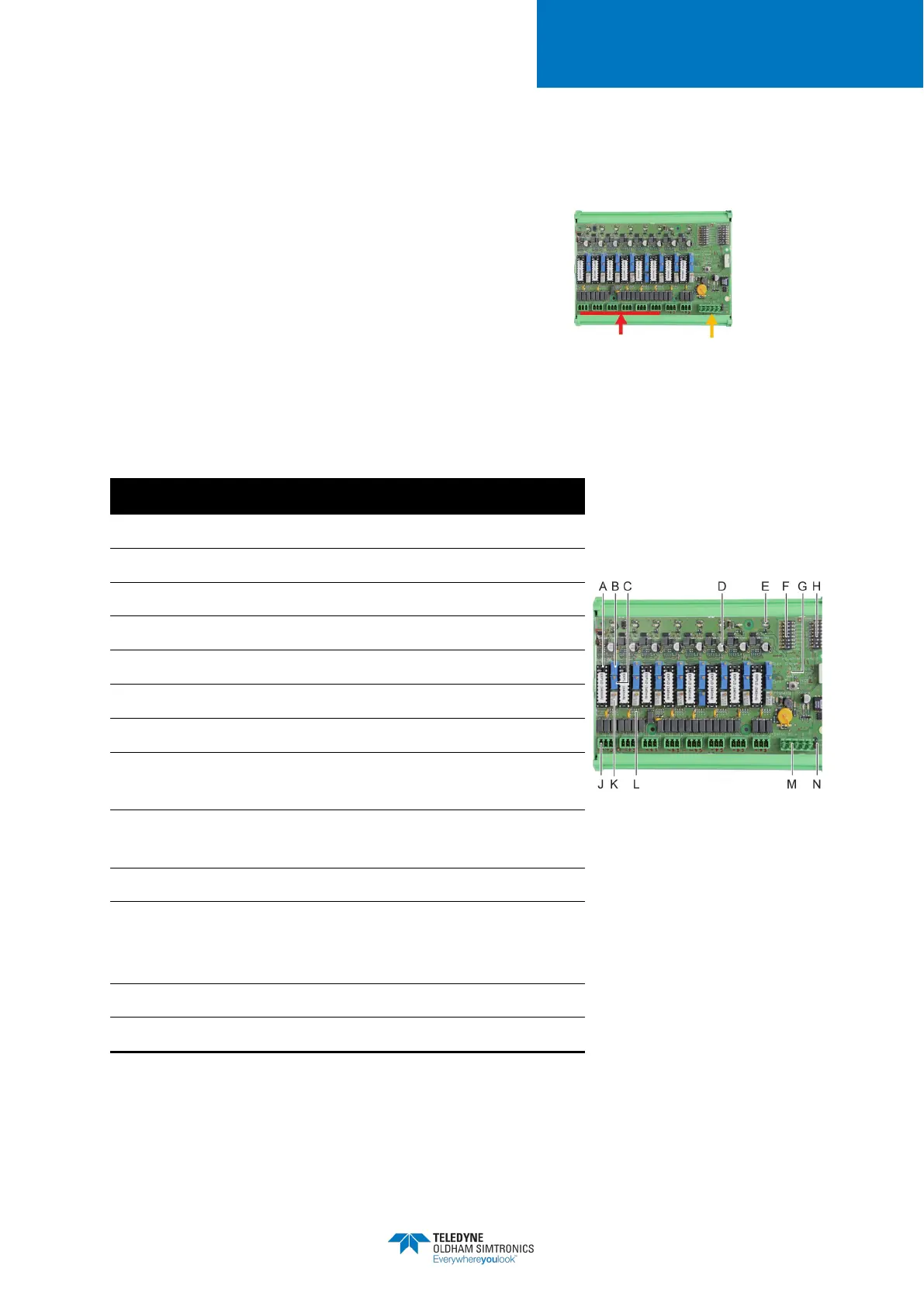

Figure 18: 8 Analog Input Module
5.6.2 Introduction
Ref..
Description
Figure 19: 8 Analog Input
Module
A. Configuration jumper (4-20mA or Wheatstone bridge)
B. Span settings
C. Zero settings
D.
Channel Offset
E.
Bridge sensor Offset
F.
Channel ON/OFF
G.
0V terminal for 4-20mA calibration
H. DIP swithes for the configuration of the module
(address, delay)
J.
Inputs no.1 to 8 (4-20mA or Wheatstone bridge as
per A)
K. Catalytic bead current adjustment (factory setting).
L.
4-20mA division strap in case of several analog
detectors operating on the same line (
car park
application)
M. Power supply and RS485 digital network connector
N. End of line resistor jumper
4 wire serial cable
8 analog inputs
