ST Series Power Supply Instruction Manual SPECIFICATIONS
telemark.com 16 of 64 Rev 1.0.0
2.2 MECHANICAL SPECIFICATIONS
2.2.1 The High Voltage Power Supply
The High Voltage Power Supply (See Figure 2-2) occupies a standard 5U-19” rack
compartment.
Physical dimensions are:
Height: 8.73” (222mm)
Width: 19.00” (483mm)
Length: 23.58” (599mm) Overall, 22.07” (561mm) from rack face
Net Weight: 56 lb. (25.4kg)

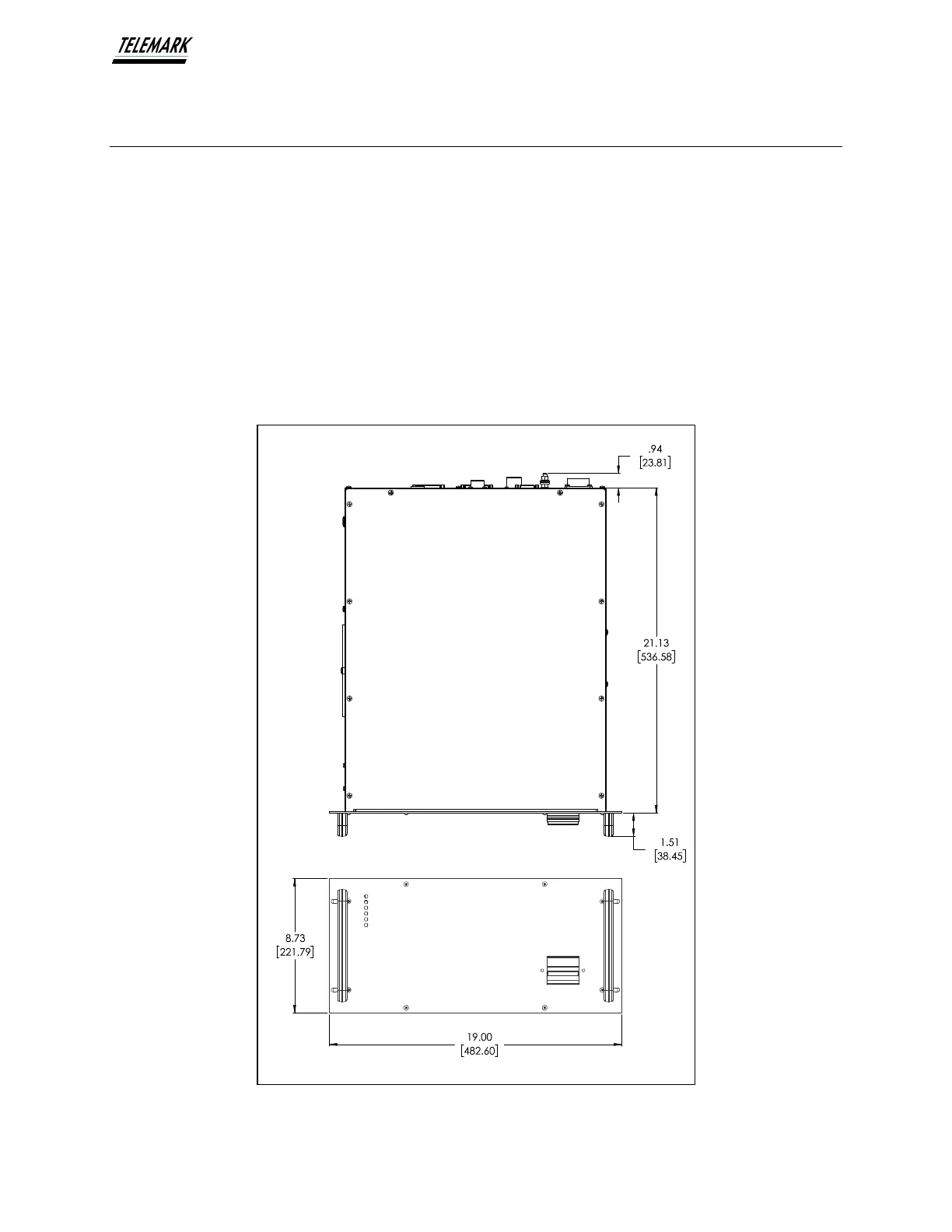

Figure 2-2, ST HVPS Reference Dimensions
INCH [mm]
