Telemark ST Series - The ST Controller; Figure 2-4, ST Controller Dimensions

ST Series Power Supply Instruction Manual SPECIFICATIONS
telemark.com 18 of 64 Rev 1.0.0
2.2.3 The ST Controller
The ST Controller (See Figure 2-4) provides external controls for the operation of the
ST Power Supply. It occupies a standard 1U 19” rack compartment.
Physical dimensions are:
Height: 1.72” (43.7mm)
Width: 19.00” (483mm)
Length: 9.13” (232mm) Overall, 8.11” (206mm) from rack face
Net Weight: 4 lb. (1.8kg)

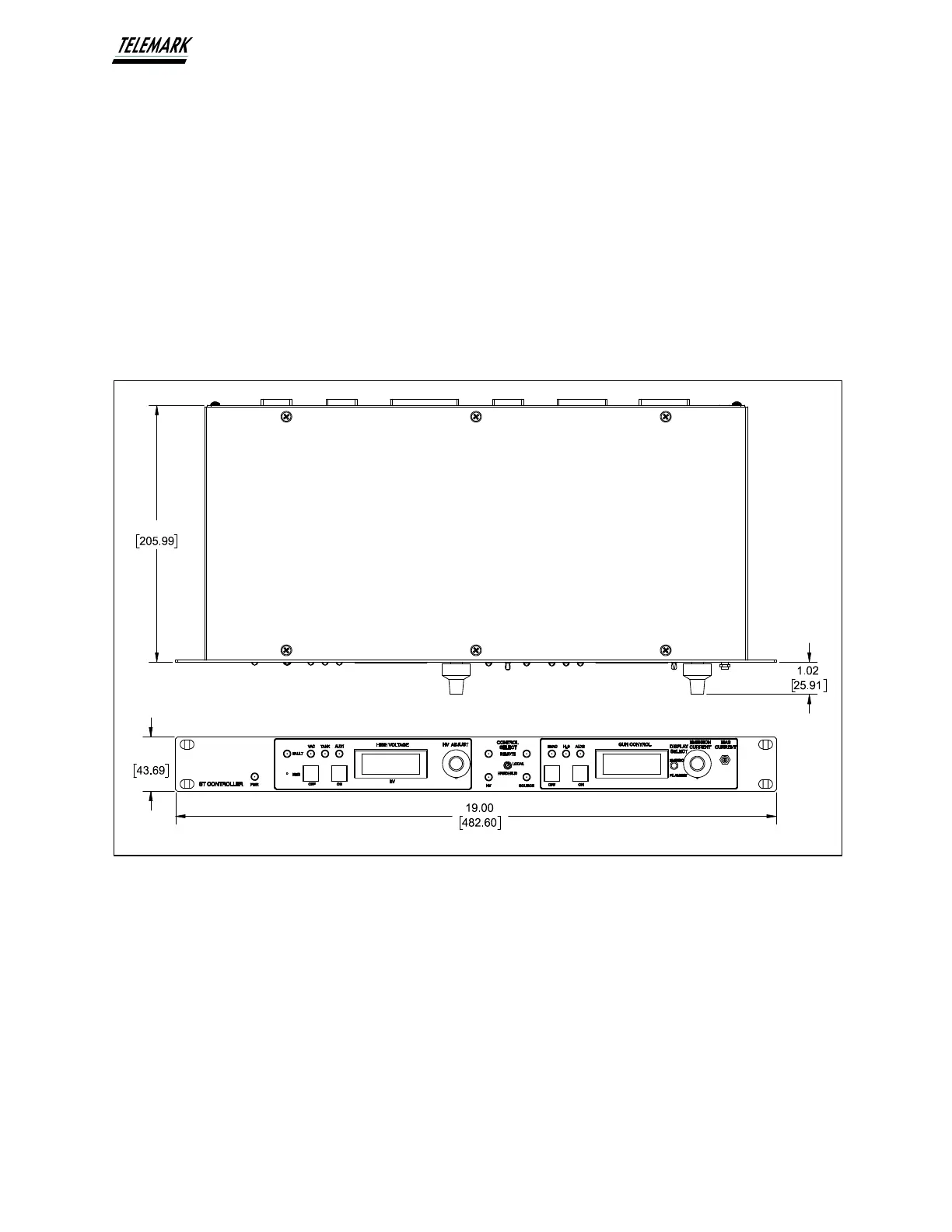

Figure 2-4, ST Controller Dimensions
1.72
INCH [mm]
8.11
