ST Series Power Supply Instruction Manual STANDARD OPERATION
telemark.com 40 of 64 Rev 1.0.0
4.2.1 High Voltage Functions

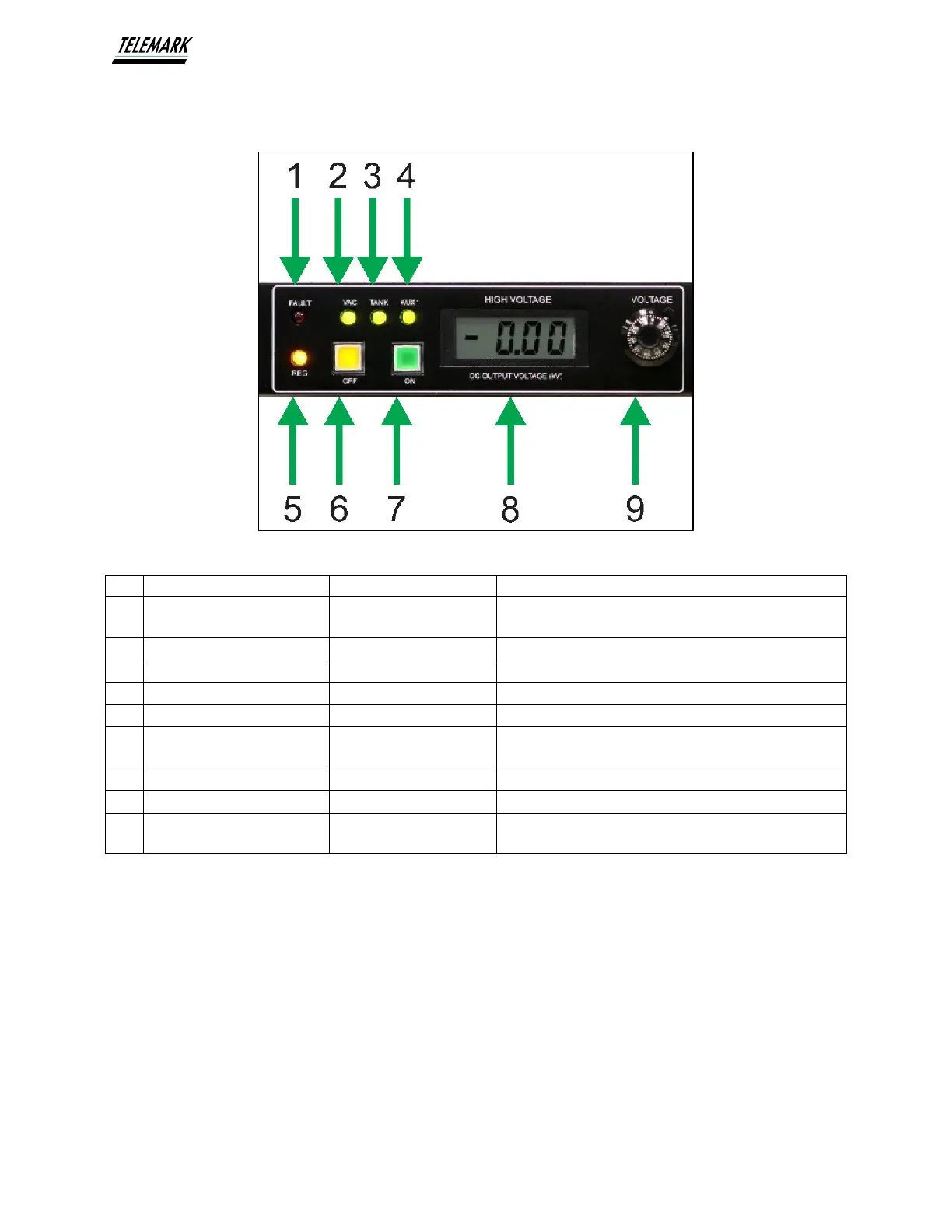

Figure 4-4, High Voltage Control Functions
Ref
Name
Type
Function
1
FAULT Indicator
Red LED
Lit when HVPS Fault is present. (check HVPS front
panel indicators)
2
VAC Interlock Indicator
Green LED
Lit when VAC interlock is satisfied.
3
TANK Interlock Indicator
Green LED
Lit when TANK interlock is satisfied.
4
AUX1 Interlock Indicator
Green LED
Lit when AUX1 interlock is satisfied.
5
REG Indicator
Amber LED
Lit when HV current is out of regulation
6
OFF Button
Yellow Pushbutton
Press to turn HV off. Illuminated when HV is off, and
all HV interlocks are satisfied.
7
ON Button
Green Pushbutton
Press to turn HV on. Illuminated when HV is on.
8
DC Output Voltage Display
3.5-digit LCD Display
High Voltage Output Display (in -kV)
10
VOLTAGE Dial
10-turn Potentiometer
Sets HV output setpoint in Local Mode. (And in
Remote Mode, if selected. See Chapter 5)
