Telemark ST Series - Control Select Functions; Figure 4-5, Control Select Functions

ST Series Power Supply Instruction Manual STANDARD OPERATION
telemark.com 41 of 64 Rev 1.0.0
4.2.2 Control Select Functions

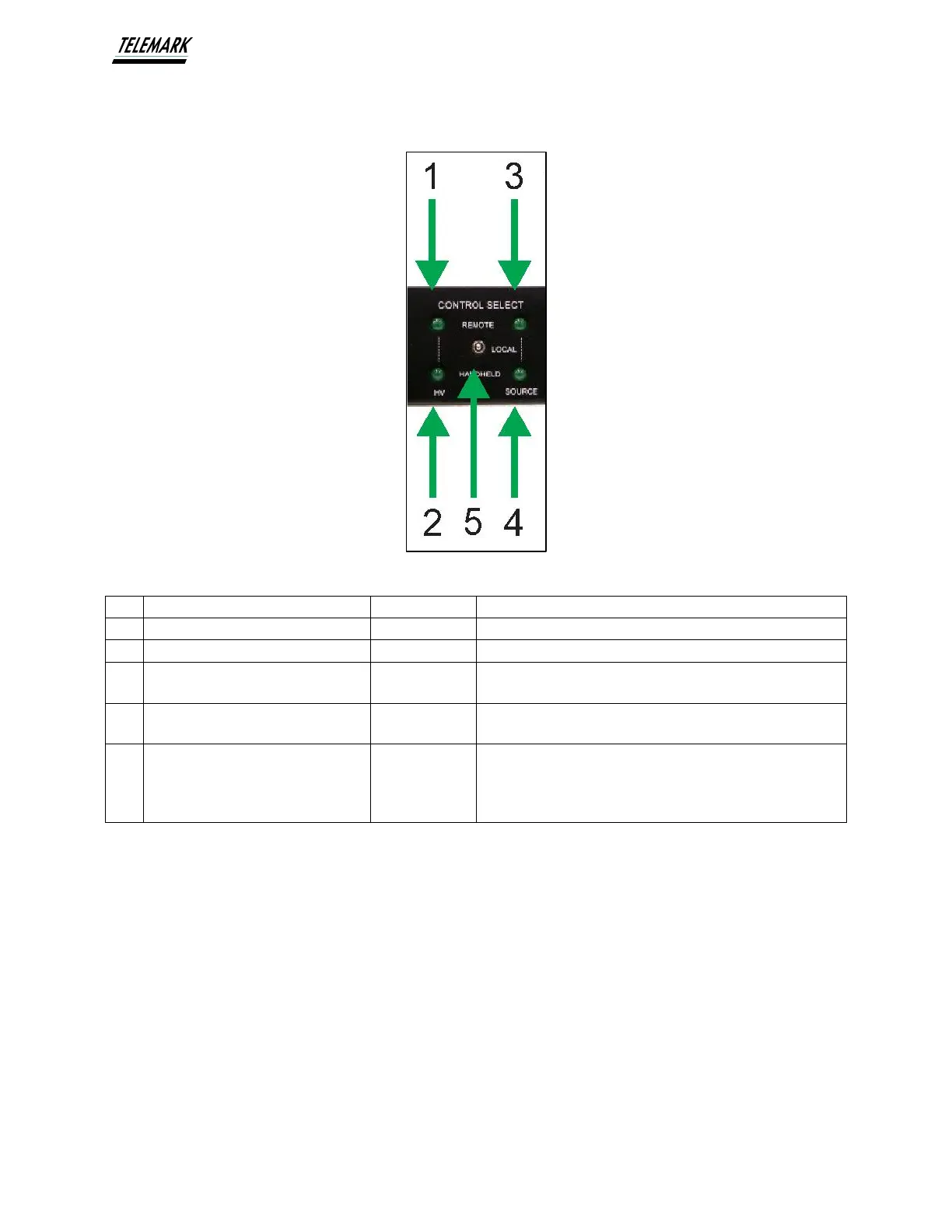

Figure 4-5, Control Select Functions
Ref
Name
Type
Function
1
Control Indicator – HV Remote
Green LED
Lit when HV is being controlled via Remote.
2
Control Indicator – HV Handheld
Green LED
Lit when HV is being controlled via Handheld.
3
Control Indicator – Source
Remote
Green LED
Lit when Source is being controlled via Remote.
4
Control Indicator – Source
Handheld
Green LED
Lit when Source is being controlled via Handheld.
5
Control Switch
3-Position
switch
Selects input control for both HV and Source operation.
May select Local (ST Controller front panel), Handheld
(optional Pendant), or Remote (PLC or Process
controller)
