3.4.1 HVPS Connections

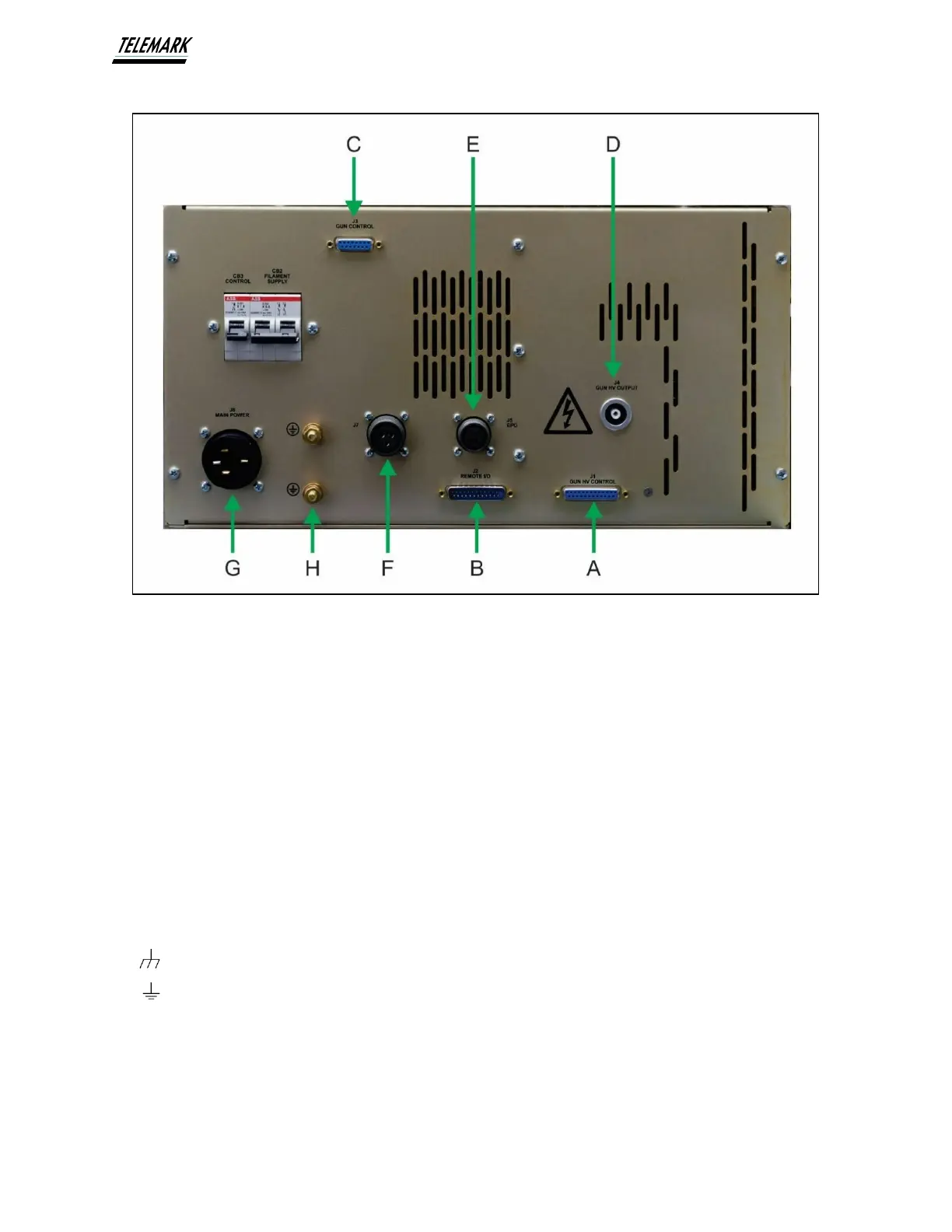

Figure 3-6, HVPS Rear Panel Connections
A - J1 HV CONTROL >>> connects to J1 of Controller
B - J2 INTERFACE I/O >>> connects to J2 of Controller
C - J3 SOURCE CONTROL >>> connects to J3 of Controller
D - J4 HV OUTPUT >>> connects to J4 of Filament Transformer
E – J5 EPO >>> Jumpered or connected to system EPO.
F - J7 FILAMENT OUTPUT >>> connects to J7 of Filament Transformer
G - J8 MAIN POWER >>> “Mains” Line Input Power
H - CHASSIS GROUND (Top) >>> (see chapter 3.3 for details)
CHAMBER RETURN (Bottom)
