ST Series Power Supply Instruction Manual STANDARD OPERATION
telemark.com 38 of 64 Rev 1.0.0
6 – STEP START fault indicator
7 – MAIN CIRCUIT BREAKER Turns the unit on and off. Prevents excessive input
current.

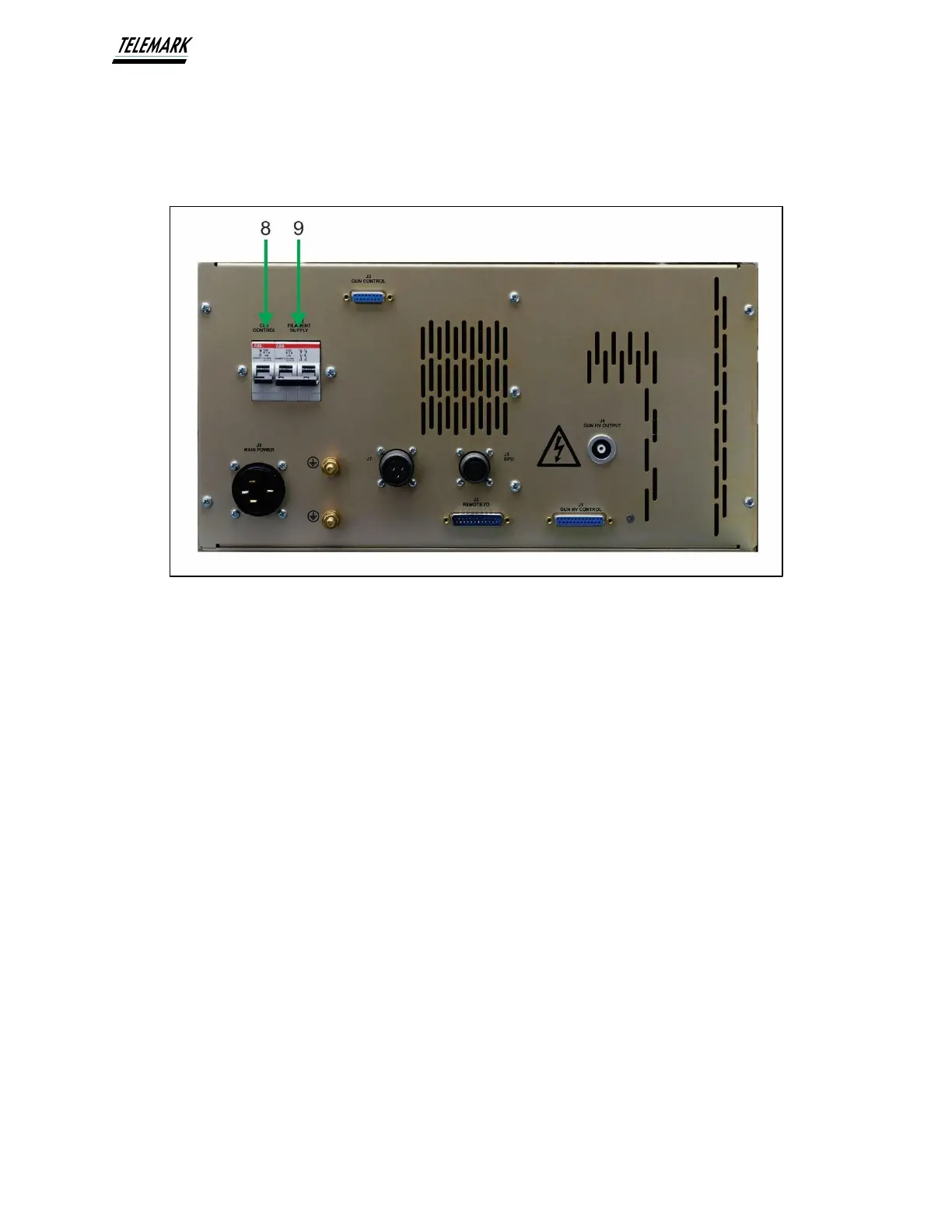

Figure 4-2, HVPS Rear Panel Functions
8 – AUX CONTROL BREAKER Prevents excessive current for Control Power
generation.
9 – FILAMENT SUPPLY BREAKER Prevents excessive current for the Filament
Supply operation.
