ST Series Power Supply Instruction Manual INSTALLATION
telemark.com 24 of 64 Rev 1.0.0
3.1.1 Component Lists
The following is a comprehensive list of the components included with the ST Power
Supply System.

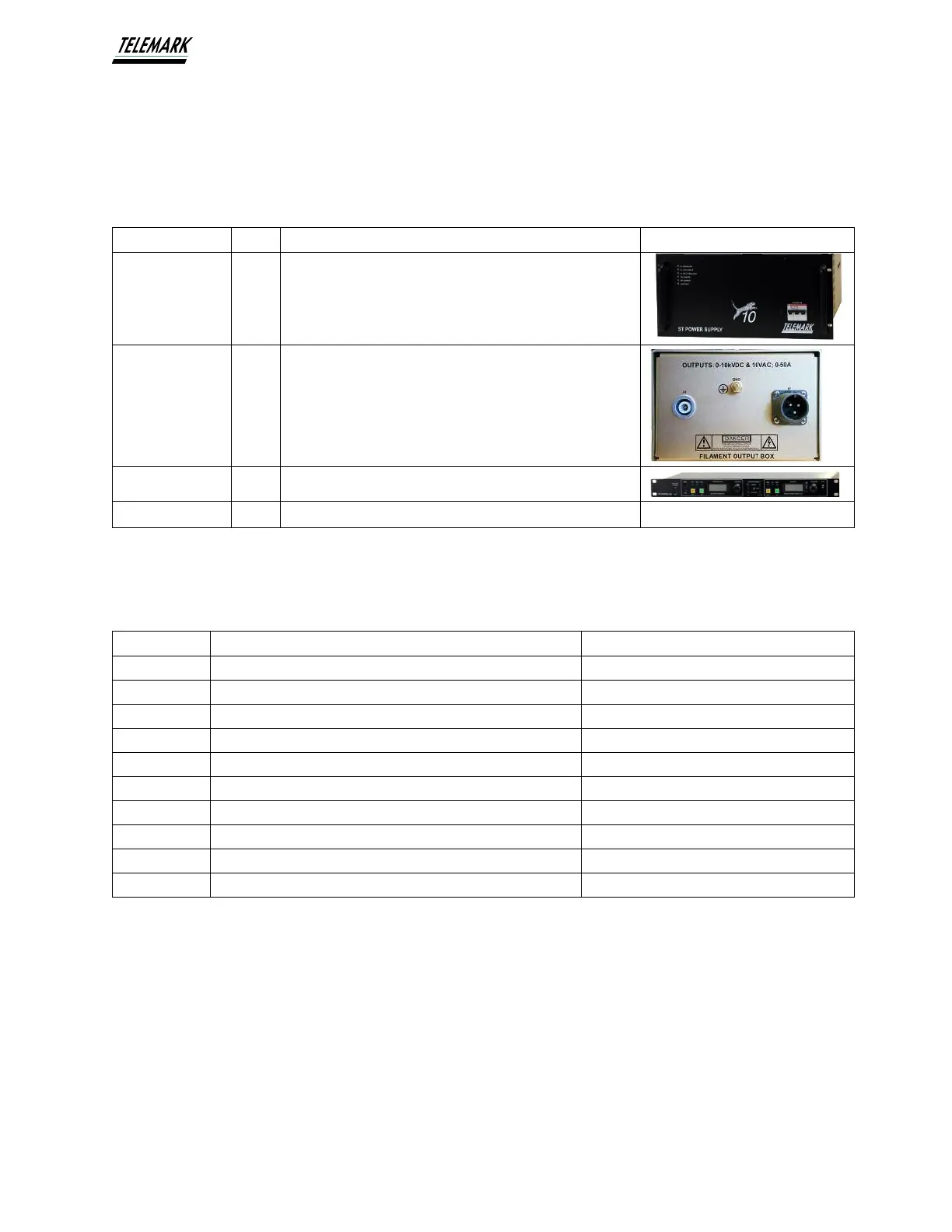

Figure 3-1, ST Power Supply Component List
High Voltage Power Supply Model Part Numbers:
Figure 3-2, High Voltage Power Supply Model Part Numbers
Part #
Qty
Description
(See Figure
3-2)
1
High Voltage Power Supply (HVPS)
105-0012-5
1
Filament Output Transformer Box
107-0500-1
1
ST Controller
122-5104-1
1
Cable Kit
(See Figure 3-3)
Part #
Description
Output HV and Emission ranges
105-9004-2
ST-4 High Voltage Power Supply, 208V, -8kV
HV: 0 to -8kV; Emission: 0 to 500mA
105-9004-4
ST-4 High Voltage Power Supply, 400V, -8kV
HV: 0 to -8kV; Emission: 0 to 500mA
105-9005-2
ST-6 High Voltage Power Supply, 208V, -8kV
HV: 0 to -8kV; Emission: 0 to 750mA
105-9005-4
ST-6 High Voltage Power Supply, 400V, -8kV
HV: 0 to -8kV; Emission: 0 to 750mA
105-9006-2
ST-6 High Voltage Power Supply, 208V, -10kV
HV: 0 to -10kV; Emission: 0 to 600mA
105-9006-4
ST-6 High Voltage Power Supply, 400V, -10kV, CE
HV: 0 to -10kV; Emission: 0 to 600mA
105-9008-2
ST-8 High Voltage Power Supply, 208V, -10kV
HV: 0 to -10kV; Emission: 0 to 800mA
105-9008-4
ST-8 High Voltage Power Supply, 400V, -10kV, CE
HV: 0 to -10kV; Emission: 0 to 800mA
105-9010-2
ST-10 High Voltage Power Supply, 208V, -10kV
HV: 0 to -10kV; Emission: 0 to 1000mA
105-9010-4
ST-10 High Voltage Power Supply, 400V, -10kV, CE
HV: 0 to -10kV; Emission: 0 to 1000mA
