ST Series Power Supply Instruction Manual SPECIFICATIONS
telemark.com 17 of 64 Rev 1.0.0
2.2.2 The ST Filament Output Transformer
The ST Filament Transformer (See Figure 2-3) is placed at a point between the Power
Supply and the HV feedthroughs. It is usually placed or mounted below the deposition
chamber with the interconnecting cables routed to the High Voltage Power Supply in the
instrument rack.
Physical dimensions are: (not including cable length to HV feedthrough)
Height: 4.63” (118mm)
Width: 6.31” (161mm)
Length: 15.42” (392mm)
Net Weight: 5.5 lb. (2.5kg)

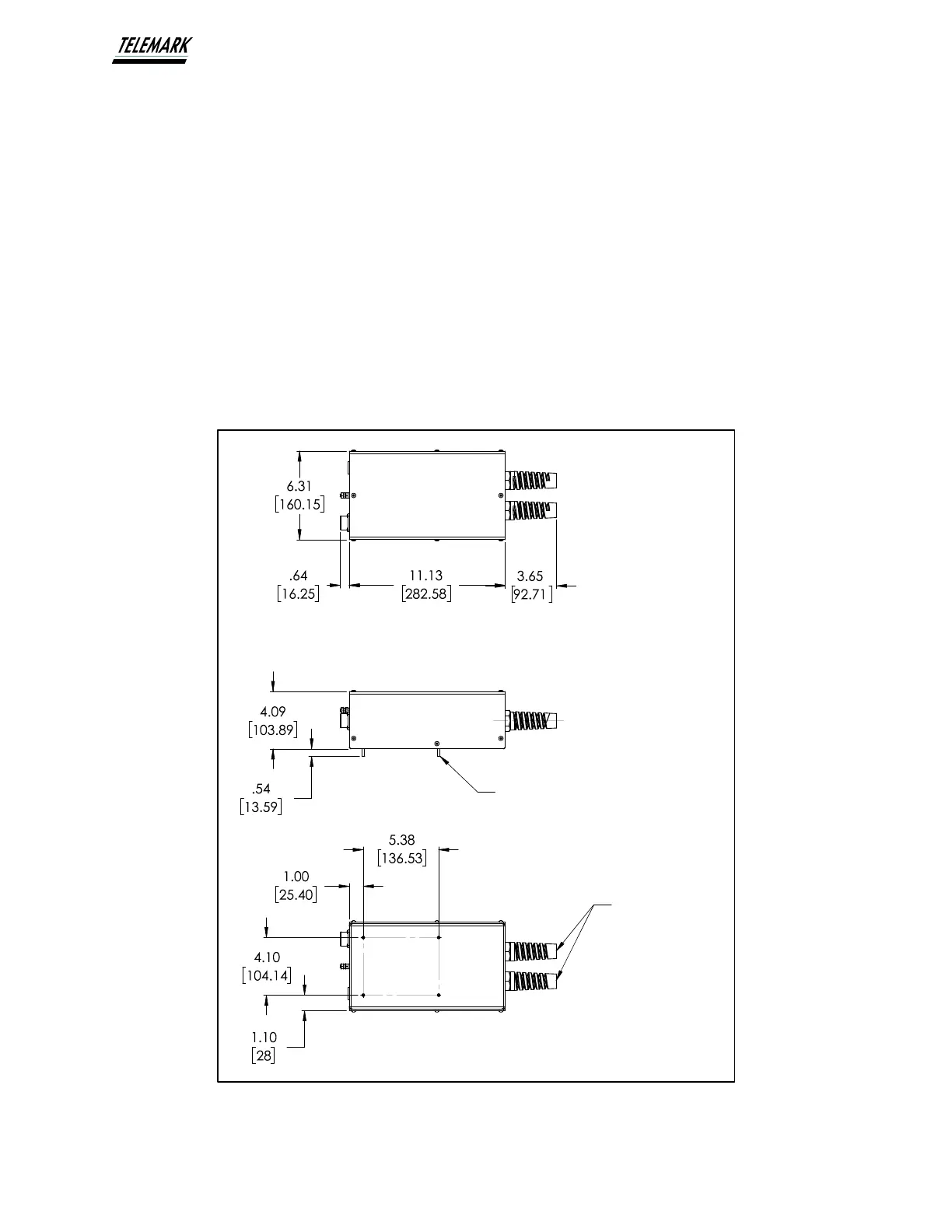

Figure 2-3, ST Filament Transformer Dimensions
4X #10-32 UNF
MOUNTING STUD
TO CHAMBER
HIGH VOLTAGE
FEEDTHRUS
INCH [mm]
