4.2.3 Source Functions

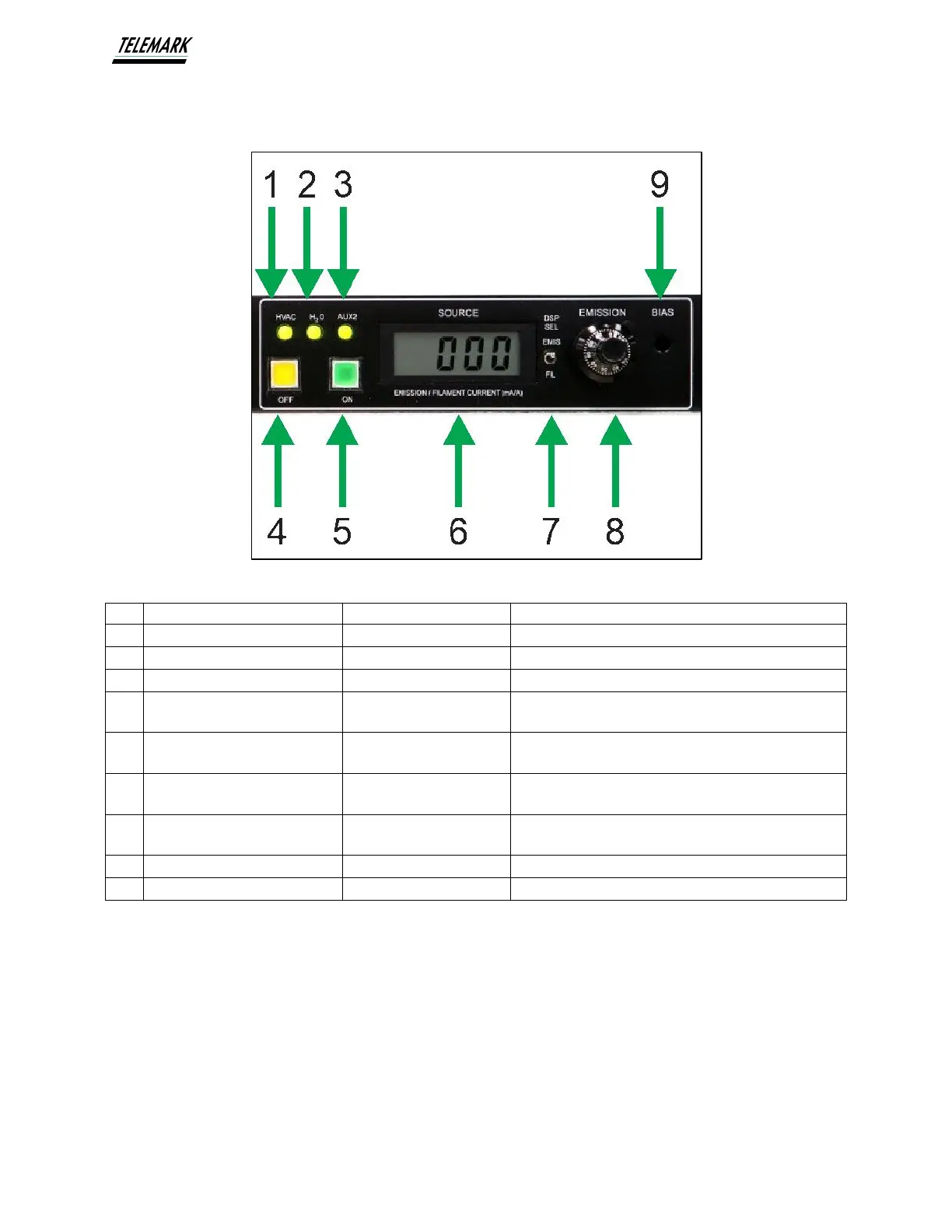

Figure 4-6, Source Control Functions
Ref
Name
Type
Function
1
HVAC Interlock Indicator
Green LED
Lit when HVAC interlock is satisfied.
2
H20 Interlock Indicator
Green LED
Lit when H20 interlock is satisfied.
3
AUX2 Interlock Indicator
Green LED
Lit when AUX2 interlock is satisfied.
4
OFF Button
Yellow Pushbutton
Press to turn Source off. Illuminated when Source is
off, and all Source interlocks are satisfied.
5
ON Button
Green Pushbutton
Press to turn Source on. Illuminated when Source is
on.
6
Emission/Filament Current
Display
3.5-digit LCD Display
Emission current (in mA) or Filament current (in
Amps) display. (Set by DSP SEL)
7
Display Select (DSP SEL)
2-Position switch
Selects between Emission or Filament current for
LCD display.
8
EMISSION Dial
10-turn Potentiometer
Sets Emission output setpoint in Local Mode.
9
BIAS
10-turn Trim-pot
Sets Filament “Pre-heat” bias current.
