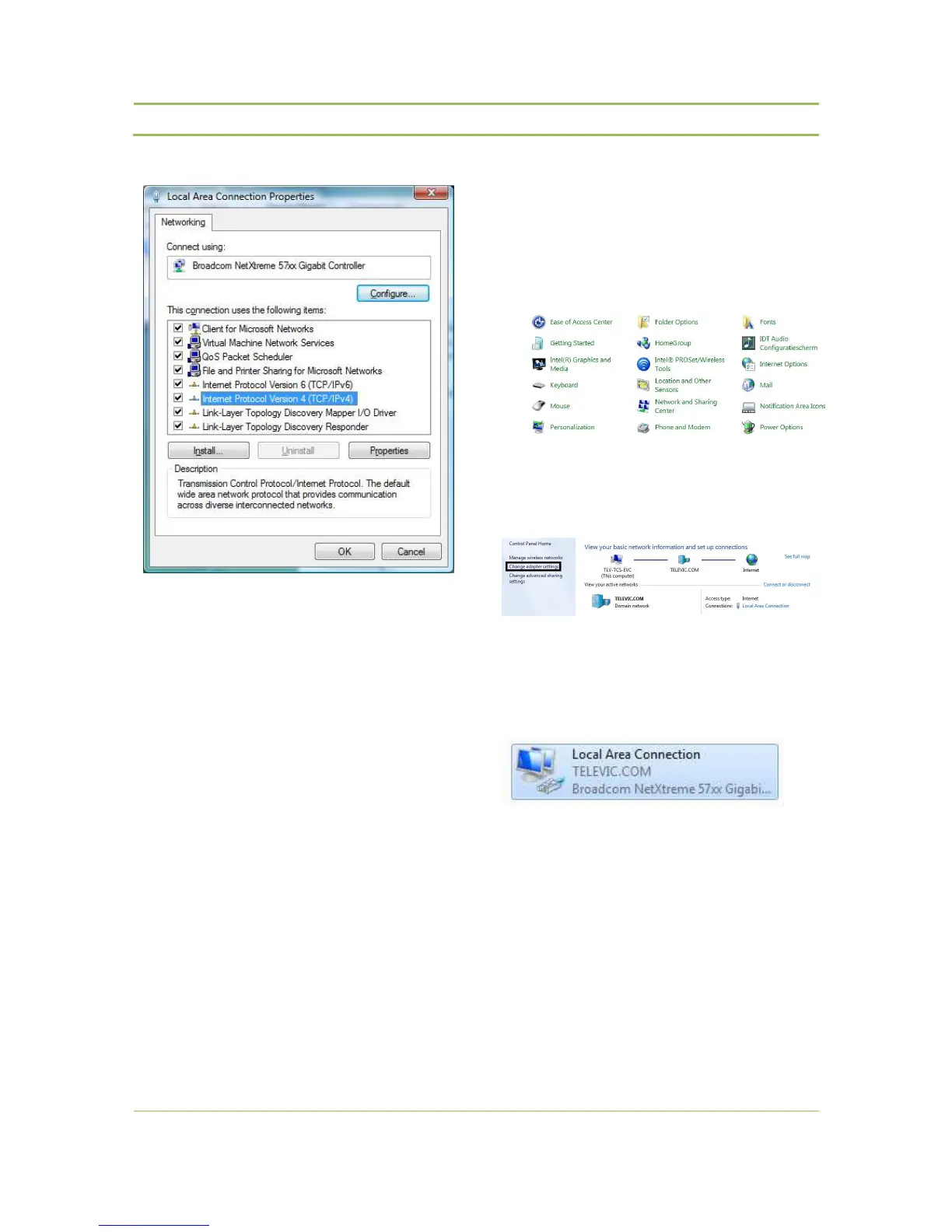

Figure 11.9 : Local Area Connection Properties
− Click Properties
− Input your IP Address and subnet mask (refer to
Figure 11.5).
The IP Addresses on the network must be within
the same range. The default IP address from the
WCAP is 192.168.0.10 so the computer should
have an IP Address that is within the same
subnet, like 192.168.0.11 and 192.168.0.20. The
subnet mask must be the same for all equipment
on the network: 255.255.255.0)
− Click OK
Assigning a Static IP Address in WINDOWS 7
- Go to ‘Control Panel’ (refer to Figure
11.10:Control Panel0)
- Double-click on Network and Sharing center
Figure 11.10:Control Panel
- Click on Change adapter settings
(refer to Figure 11.11: Netwerk and Sharing)
Figure 11.11: Netwerk and Sharing
- Right-click on Local Area Connection ( refer
to Figure 11.12: local Area Connections)
- Click on Properties
Figure 11.12: local Area Connections
- Click on Internet Protocol 4 (TCP/IPv4) (refer
to Figure 11.13: Local Area Connections
Properties).
