Tenda AC1200 User Manual

38

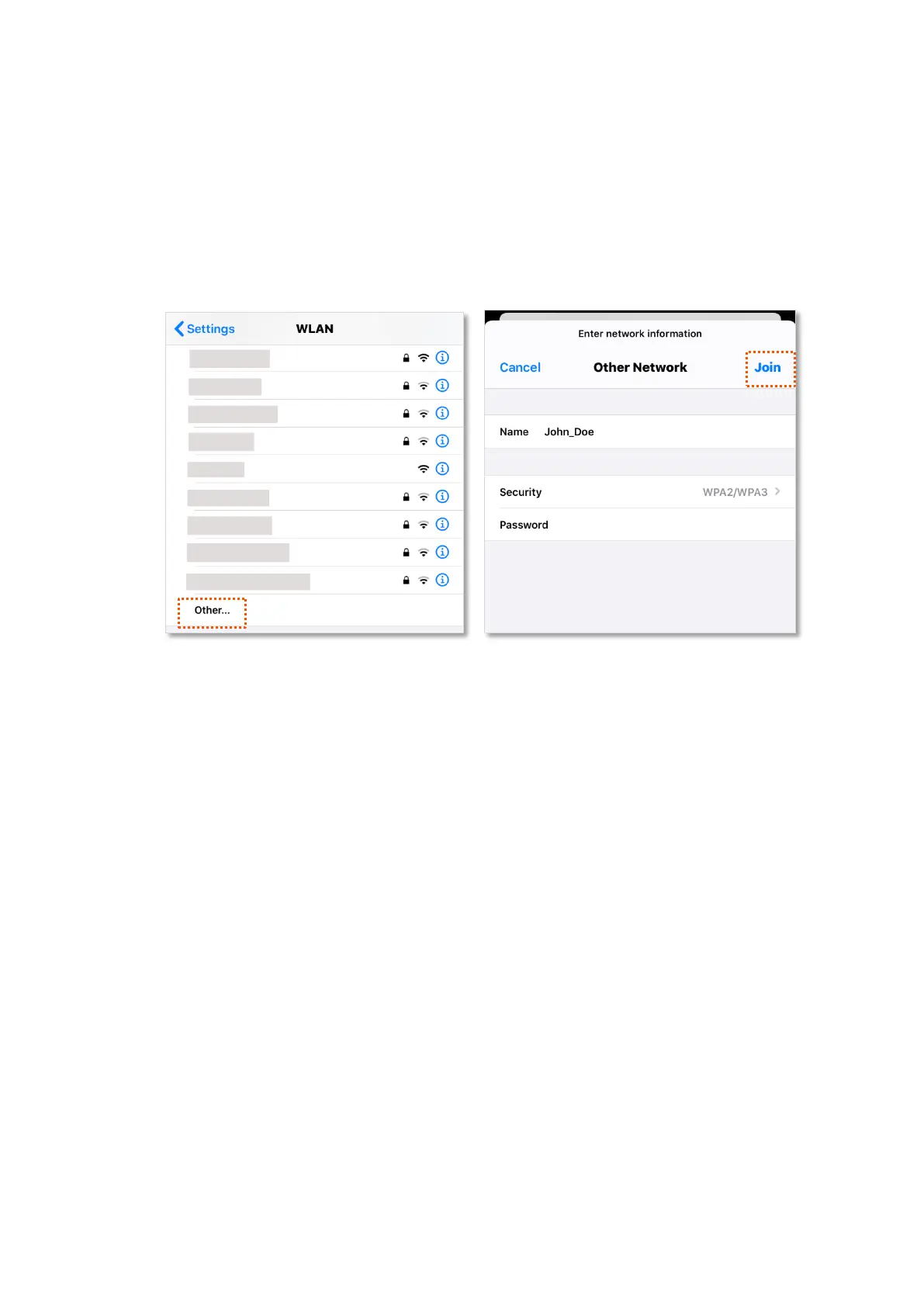

Step 1 Tap Settings on your phone, and choose WLAN.
Step 2 (Optional) Enable WLAN.
Step 3 Scroll the Wi-Fi list to the bottom, and tap Other….
Step 4 Enter the Wi-Fi name and password, which are John_Doe and Tenda+Wireless245 in this
example.
Step 5 Set security to WPA2/WPA3 (If WPA2/WPA3 is not available, choose WPA2).
Step 6 Tap Join.
---End
When completing the configurations, you can connect to the hidden Wi-Fi network to access the
internet.

Tenda AC1200 Specifications

General

Data Transfer Rate	1200Mbps
Wireless Standard	IEEE 802.11ac/a/n 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency Bands	2.4GHz, 5GHz
Wireless Speed	300Mbps (2.4GHz) + 867Mbps (5GHz)
Antenna	4 x 5dBi external antennas
Security	WPA/WPA2-PSK
Button	WPS button, Reset button
DHCP Server	Support
