3
ID
Port/Button
Description
③
PoE/LAN
It is used to supply power or transmit data.
To power on the device using PoE, connect this port to the PoE port of the included PoE
injector.
If the device is powered on using a DC power adapter, this port can be connected to a
switch.
④
/
Ethernet cable inlet.
⑤
/
Power cord inlet.
⑥
/
It is used to remove the cover.
Label
The
label
on
the
back
panel
of
the
device
presents
the
login
IP
address,
username
and
password
and
other
inf
ormation of the device.

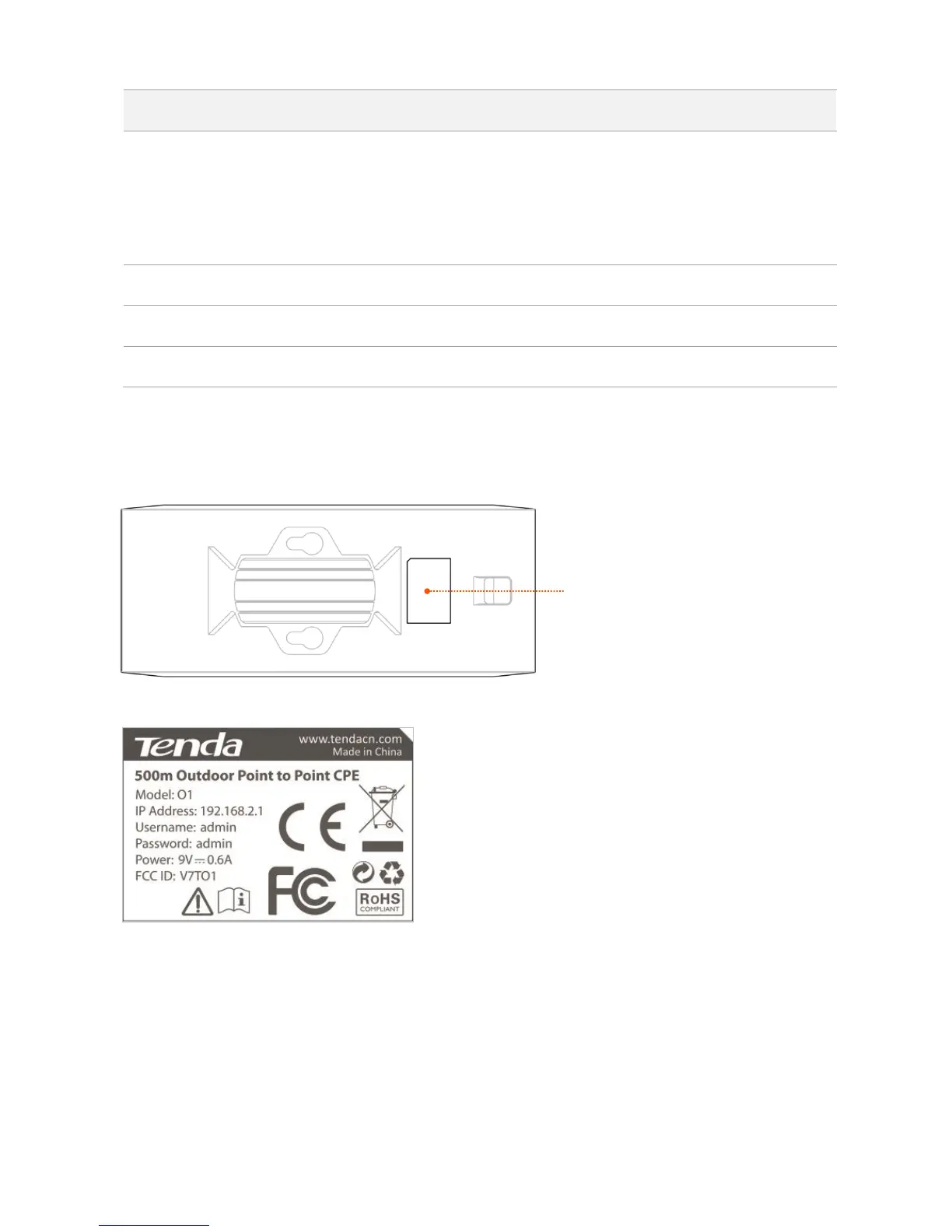

Product label
Label location
9
11
