Tenda I-WL-O3 User Manual

7
2 Application Scenario
2.1 ISP Hotspot Connection-WISP Mode
An apartment needs to bridge an ISP hotspot for internet access.
2.1.1 Solution
Tenda CPE can address this requirement.
O3 is used as an example to illustrate the installation procedure. The installation procedure of O1 is similar.
2.1.2 Setting up the CPE

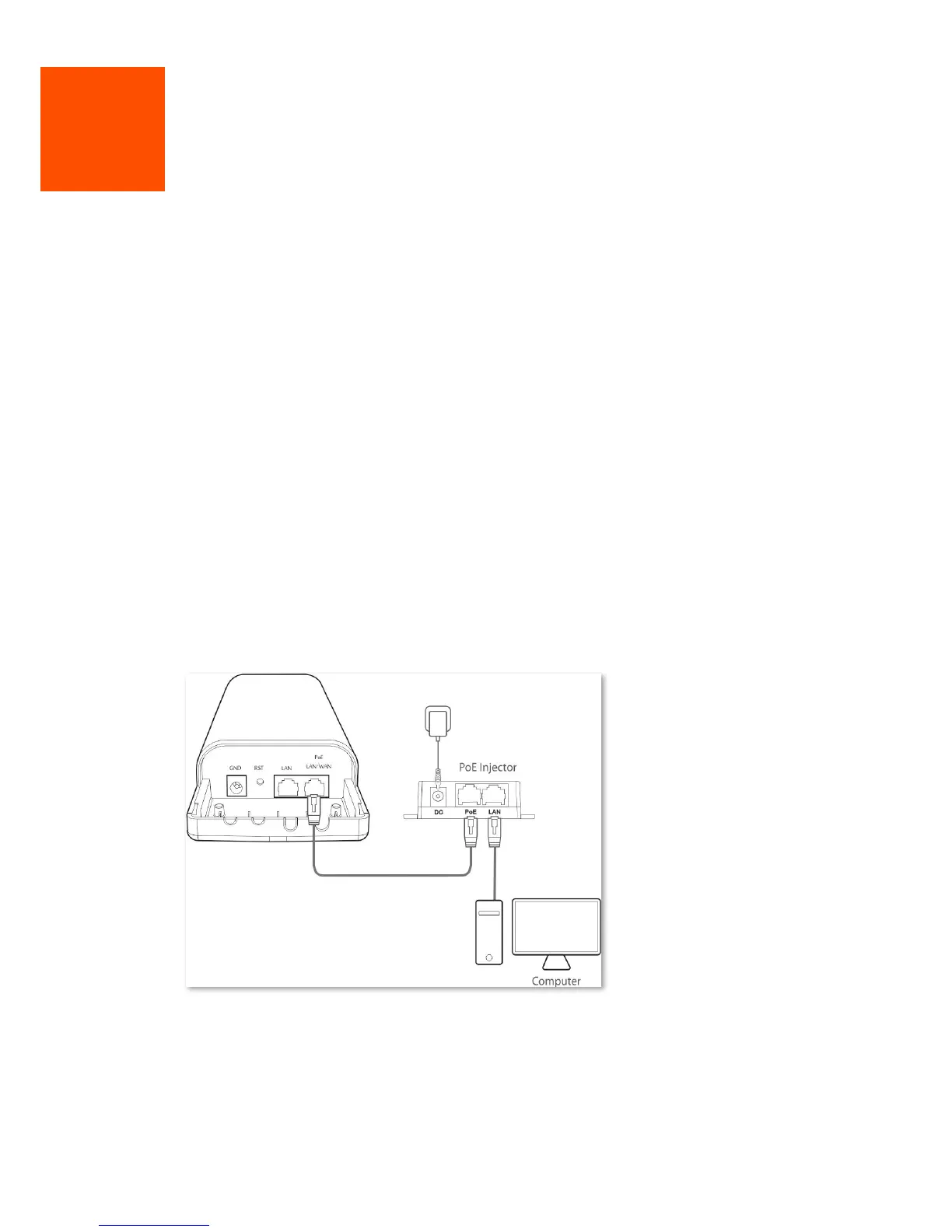

Step 1 Connect the computer to the CPE.
1. Uncover the housing of the CPE.
2. Use an Ethernet cable to connect the PoE/LAN/WAN port of the device to the PoE port of the PoE
injector.
3. Use the included power adapter to connect the PoE injector to a power socket. The LAN/WAN LED
indicator of the CEP lights up.
4. Use an Ethernet cable to connect your computer to the LAN port of the PoE injector.
Step 2 Set the CPE to WISP mode.
1. Start a web browser on your computer, and visit 192.168.2.1. Enter your user name and password
(default: admin/admin), and click Login.
