4.7 Router Mode (Only for O3)
4.7.1 Overview
If this device works in Router mode, the PoE LAN/WAN port works as WAN port and is used to connect to a
modem for internet access.

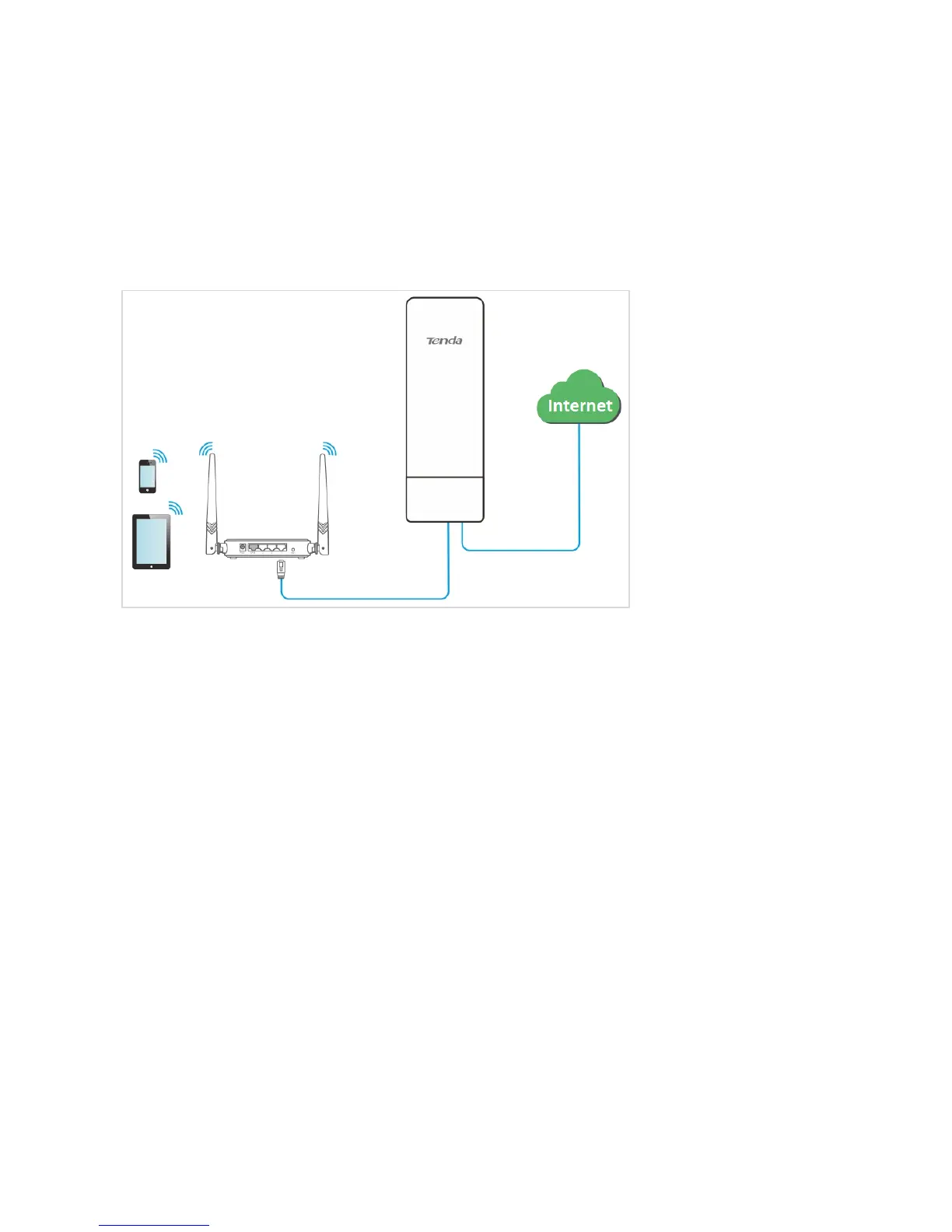

See the following network topology:
4.7.2 Setting up the Router Mode
Configuration Procedure:
Step 1 Log in to the web UI of the CPE, and choose Quick Setup to enter the configuration page.
Step 2 Select Router mode, and click Next.
Step 3 Select your internet connection type, and set the related parameters. Take PPPoE as an example here.
1. Select PPPoE.
2. Enter the PPPoE user name and password provided by your internet service provider, which are both
admin in this example.
3. Click Next.
