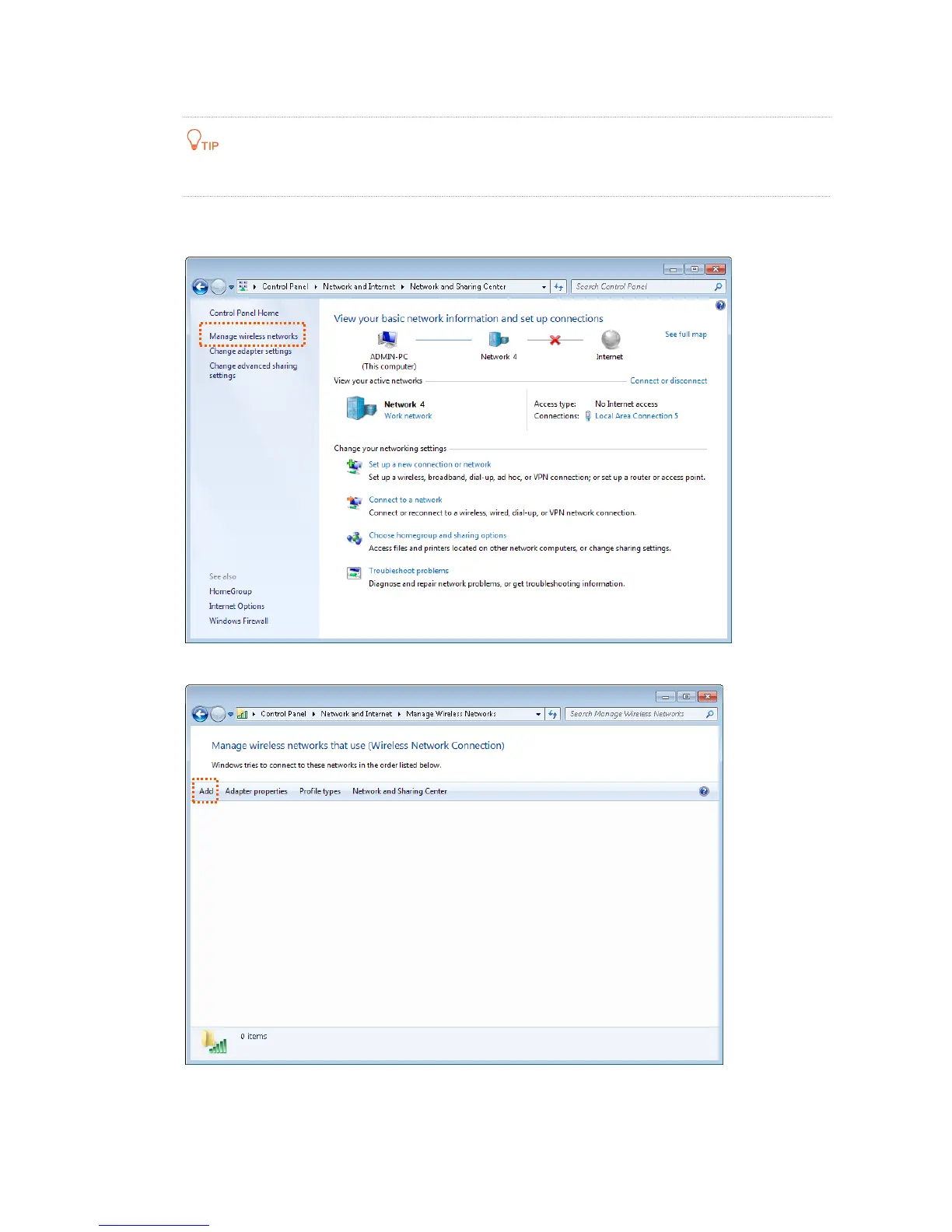

Configure your wireless device
Windows 7 is t
aken as an e
xample to describe the proce
dure.
Step 1
Choose
Start
>
Control
Panel,
click
Network
and
Internet,
click
Network
and
Sharing
Center
,
and
click
Manage wireles
s networks.
Step 2
Click
Add
.
Step 3
Click Manually crea
te a network prof
ile.
106
108
Table of Contents
Default Chapter
3
Acronyms and Abbreviations
3
Conventions
3
Additional Information
5
Technical Support
5
Table of Contents
6
Overview
8
Getting to Know Your Device
8
Appearance of O1
8
LED Indicators
8
1 Introduction
8
Button and Ports
9
Label
10
Appearance of O3
11
2 Application Scenario
14
ISP Hotspot Connection-WISP Mode
14
CCTV Surveillance
19
Setting up the Cpes
19
Automatic Bridging
19
Set up the Cpes Using Web UI
20
Installing the Cpes
26
3 Web UI
27
Login
27
Logout
29
Web UI Layout
29
Common Buttons
30
4 Quick Setup
31
AP Mode
31
Setting up the AP Mode
31
Client Mode
34
Setting up the Client Mode
34
Universal Repeater Mode (Only for O3)
38
Setting up the Universal Repeater Mode
38
WISP Mode
42
Setting up the WISP Mode
42
Repeater Mode (Only for O3)
46
Setting up the Repeater Mode
46
One to One Bridging
46
One to Four Briding
50
P2MP Mode (Only for O3)
55
Setting up P2MP Mode
55
Router Mode (Only for O3)
62
Setting up the Router Mode
62
System Status
65
Wireless Status
67
Statistics
68
Throughput
69
Wireless Client
69
Upstream AP
70
Interface
71
ARP Table
72
Routing Table
72
6 Network
74
LAN Setup
74
Changing the LAN IP Address
75
Manually Setting the IP Address
75
Automatically Obtaining an IP Address
77
MAC Clone
78
DHCP Server
80
Configuring the DHCP Server
80
DHCP Client
82
VLAN Settings
83
Setting up VLAN
83
Examples of Configuring VLAN Settings
84
Networking Requirement
84
Network Topology
85
7 Wireless
87
Basic
87
Broadcast SSID
87
Isolate Client
87
Max. Number of Clients
87
Changing the Basic Settings
88
Wep
88
WPA and WPA2
88
WPA-PSK, WPA2-PSK, and Mixed WPA/WPA2-PSK
88
Examples of Configuring Basic Settings
94
Setting up a Non-Encrypted Wireless Network
94
Setting up a Wireless Network Encrypted Using WPA2-PSK
95
Setting up a Wireless Network Encrypted Using WPA or WPA2
97
Configure Your Wireless Device
107
Advanced
113
Changing Advanced Settings
113
Access Control
116
Configuring Access Control
116
Example of Configuring Access Control
117
Changing the LAN Speed and Duplex Mode
119
LAN Rate
119
8 Advanced
119
Diagnose
121
Site Survey
121
Ping
121
Traceroute
124
Speed Test
124
Examples of Configuring the Speed Test
126
Bandwidth Control (Only for O3)
128
Configuring Bandwidth Control
128
Examples of Configuring Bandwidth Control
129
Port Forwarding (Only for O3)
131
MAC Filter (Only for O3)
135
Configuring MAC Filter
135
Examples of Configuring MAC Filter
137
Network Service
139
Ddns
139
Configuring DDNS
139
Examples of Configuring DDNS
140
Remote Web Management
143
Configuring Remotw Web Management
143
Reboot Schedule
145
Login Timeout Interval
145
SNMP Agent
146
SNMP Management Framework
146
Basic SNMP Operations
146
SNMP Protocol Version
146
MIB Introduction
147
Configuring the SNMP Function
147
Example of Configuring the SNMP Function
148
Ping Watch Dog
150
Configuring Ping Watch Dog
150
DMZ Host
151
Examples of Configuring DMZ Host
152
Telnet Service
153
Upnp
154
Hardware Watch Dog (Only for O3)
154
9 Tools
155
Date & Time
155
Synchronized with the Internet
155
Manual
156
Maintenance
157
Reboot Device
157
Reset to Factory Settings
157
Upgrade Firmware
158
Backup/Restore
159
Restore
160
Account
162
Administrator
162
Guest
163
System Log
164
Faq
165
How to Reset the Device to Factory Settings?
165
Appendix
165
Default Parameters
168
Other manuals for Tenda I-WL-O3
User Guide
198 pages
Quick Installation Guide
163 pages
4
Based on 1 rating
